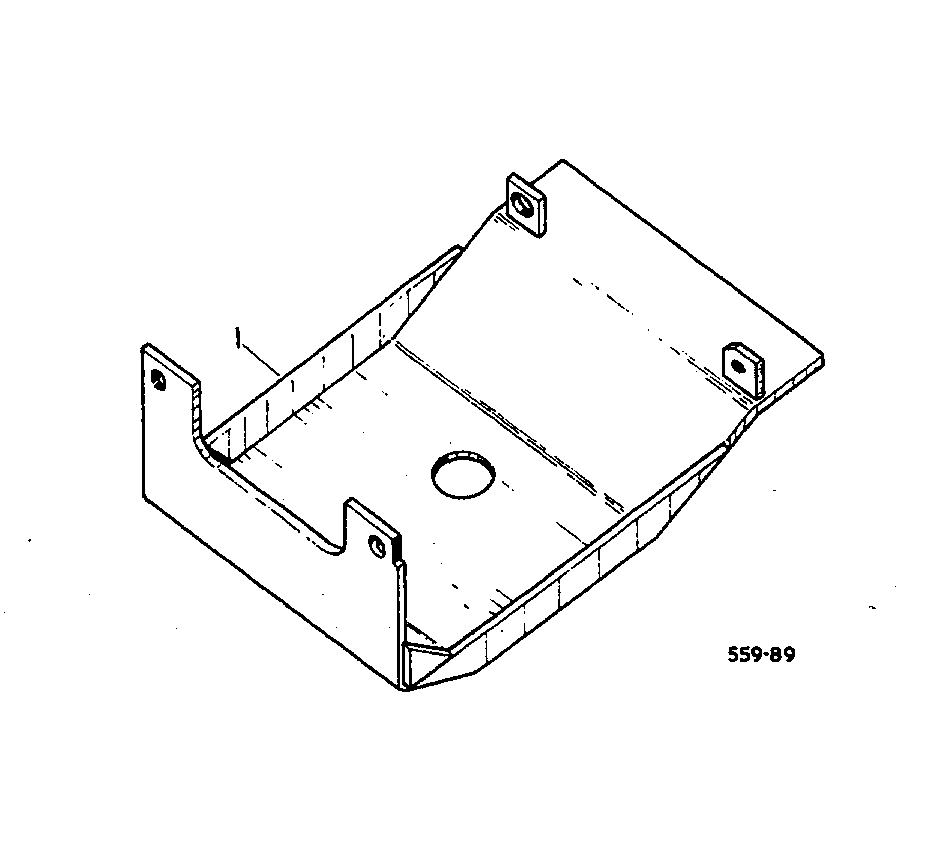

Запчасти Case 3400 (112) - OIL PAN GUARD ATTACHMENT (10) - ENGINE

1

3116103R1

GUARD

ASSEMBLY, crankcase oil pan

1шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

BOLT, hex HD, 1/2-13 x 4

1шт.

103323

LOCK WASHER,1/2"

2шт.

223441

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

BOLT, hex HD, 5/8-11 x 3-1/4

2шт.

3116114R1

NUT

shoulder engine serial NO, synchromesh 162952/up, engine serial NO, hydrostatic 200018/up

1шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

3116115R1

BUSHING

engine serial NO, synchromesh up to T.62951/ engine serial NO hydrostatic up to/200017

1шт.
