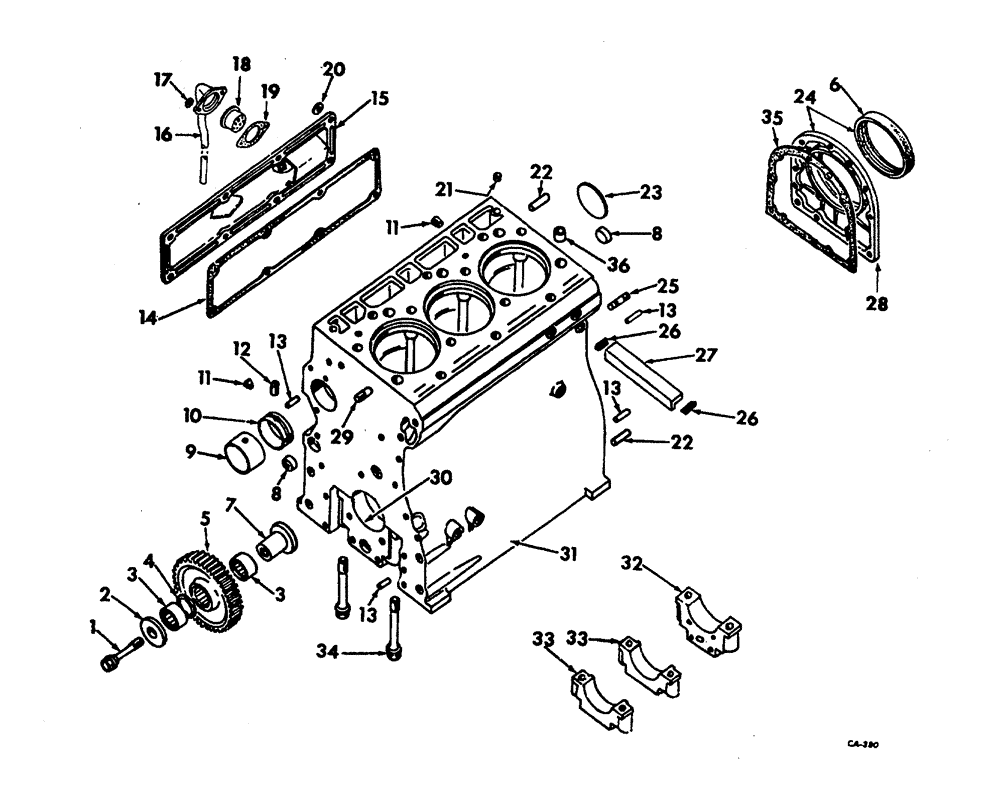

Запчасти Case 3400 (110) - CRANKCASE AND RELATED PARTS (10) - ENGINE

1

3055374R1

BOLT

BOLT, idler gear carrier

1шт.

2

3055372R1

DISC

WASHER, thrust

1шт.

3

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

RETAINER, optional with retainer 3136515R91

2шт.

3

3136515R91

BEARING

RETAINER, needle optional with retainer 3058816R91

2шт.

4

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING, distance

1шт.

5

3055043R3

PINION

GEAR, idler 68 teeth

1шт.

6

3138701R91

SEAL

1шт.

7

3055373R1

CARRIER

GEAR idler

1шт.

8

933537R1

PLUG,M25, Conical

COVER, closing

2шт.

9

3055008R1

CAMSHAFT BEARING

BEARING, camshaft front

1шт.

10

3055009R1

BEARING LINER

camshaft

3шт.

11

3144520R1

PLUG

slotted headless pipe, 1/8

3шт.

12

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

Headless pipe, 1/4

2шт.

13

37-2614

DOWEL,3/8" x 7/8"

PIN, 3/8 x 7/8

4шт.

14

3055394R1

GASKET

side cover optional w/3136174Rl

1шт.

14

3136174R1

GASKET

GASKET, side cover optional w/3055394Rl

1шт.

15

3055313R21

COVER ASSY

crankcase side

1шт.

3114684R1

SPARE PART

COVER

1шт.

3114685R1

GASKET

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

8шт.

16

3144020R91

BREATHER ASSY.

crankcase

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

933625R1

LOCK WASHER

RING, packing

2шт.

18

3055324R91

ELEMENT

ELEMENT ASSEMBLY , filter breather

1шт.

19

3055359R1

GASKET

GASKET, breather

1шт.

20

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 x .748 x.098

8шт.

21

933536R1

PLUG,M10, Conical

COVER, closing

1шт.

22

141284

PIN,25.4mm OD x 31.75mm L

2шт.

23

41-3044

PLUG,Exp, 2 3/4"

expansion, 2-3/4

1шт.

24

3055216R1

RETAINER

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

933570R1

WASHER

DISK, spring

9шт.

25

3055270R1

STUD

rear

1шт.

26

714868R1

SEALING STRIP

seal

2шт.

27

3055214R1

SUPPORT

crankcase sealing

1шт.

28

NOT USED

1шт.

29

3055989R1

STUD

front

1шт.

30

CAP, crankshaft front bearing

1шт.

32

CAP, crankshaft rear bearing not serviced separately

1шт.

33

CAP, crankshaft center bearing not serviced separately

2шт.

34

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

Bearing cap

8шт.

35

3055215R1

GASKET

seal retainer

1шт.

36

3055007R1

BUSHING

dowel

10шт.

3144022R1

BRACKET

LINK, fixing

1шт.

179900

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5

hex HD CAP, 9/16-12 x 3/4

1шт.

103324

LOCK WASHER,9/16"

1шт.

3144023R1

CLAMP

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

103634

NUT

NUT, hex, 5/16-18

1шт.
