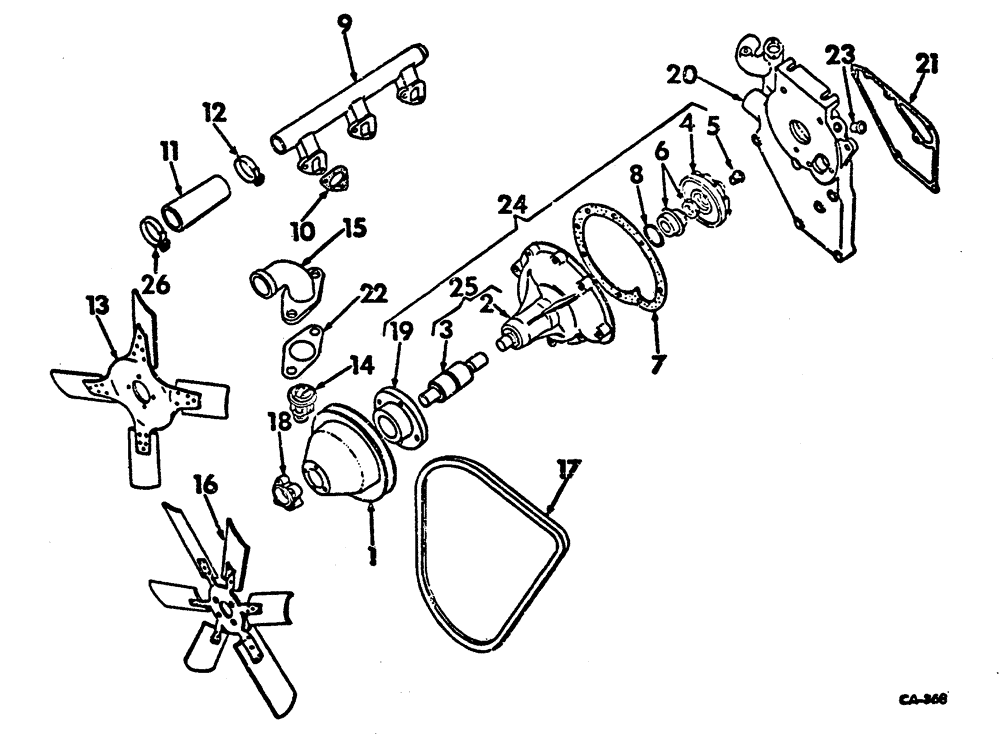

Запчасти Case 3400 (108) - FAN, THERMOSTAT AND WATER PUMP (10) - ENGINE

1

PULLEY, water pump see radiator and CONNS group 6

1шт.

2

BODY, pump, not serviced separately

1шт.

3

3055191R91

BEARING ASSY

PUMP, OPT w/3055192R91

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

PUMP, OPT w/3055191R91

1шт.

4

3055211R2

IMPELLER

PUMP

1шт.

5

3055308R1

PLUG

closing

1шт.

6

3055285R92

STRIPPER PACKAGE

water pump reconditioning, composed of £1 ring £1 packing £1 ring 1 gasket 3055177Rl

1шт.

7

3055177R1

GASKET

pump

1шт.

8

O RING, seal not serviced separately, order package 3055285R92

1шт.

9

3055254R1

PIPE

PIPE water

1шт.

425-115

NUT,5/16"-24, G5

6шт.

933570R1

WASHER

DISK, spring

5шт.

933161R2

SEALING RING

RING, packing

1шт.

712616R1

PLUG,Hex, M14 x 1.5

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

10

3055306R1

GASKET

water pipe

3шт.

11

3132144R1

HOSE,38.60 mm ID, 50.70 mm ID x 112.00 mm

Connecting

1шт.

12

3136499R1

CLAMP

HOSE, optional w/clamp 755023R91

1шт.

12

755023R91

STRAP

CLAMP, hose optional w/clamp 3136499Rl

1шт.

13

BLADE ASSEMBLY, fan tractors w/synchromesh drive, see radiator and CONNS group 6

1шт.

14

3059676R91

THERMOSTAT

1шт.

15

3136052R1

ELBOW

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

16

BLADE ASSEMBLY, fan tractors w/hydrostatic transmission, see radiator and CONNS group 6

1шт.

17

BELT, fan see radiator and conns group 6

1шт.

18

SPACER, fan see radiator and conns group 6

2шт.

19

3132146R1

HUB

pulley

1шт.

20

3136678R1

HOUSING

CARRIER, water pump

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

5шт.

445686

PLUG

auto hex HD pipe, 3/8-18

1шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 x .748 x .098

1шт.

21

3055999R1

GASKET

CARRIER water pump

1шт.

22

3132143R1

GASKET

1шт.

23

444630

PLUG,Hex Hd, 1/2"-14

auto hex HD pipe, 1/2-14

1шт.

24

3136053R91

WATER PUMP

ASSEMBLY

1шт.

24

3136053R92GV

WATER PUMP

Value, Water Pump Assy

1шт.

24

735102C91

REMAN-WATER PUMP

Reman for New PN 3136053R91

1шт.

24

1928123C1

CORE-WATER PUMP

Return Number

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

8шт.

3050129R1

LOCK WASHER

WASHER, med lock, 5/16

8шт.

25

3132677R21

BODY

BODY ASSEMBLY

1шт.

26

3136501R1

CLAMP

CLAMP, hose optional w/clamp 755023R91

1шт.

26

755023R91

STRAP

CLAMP, hose optional w/clamp 3136501Rl

1шт.
