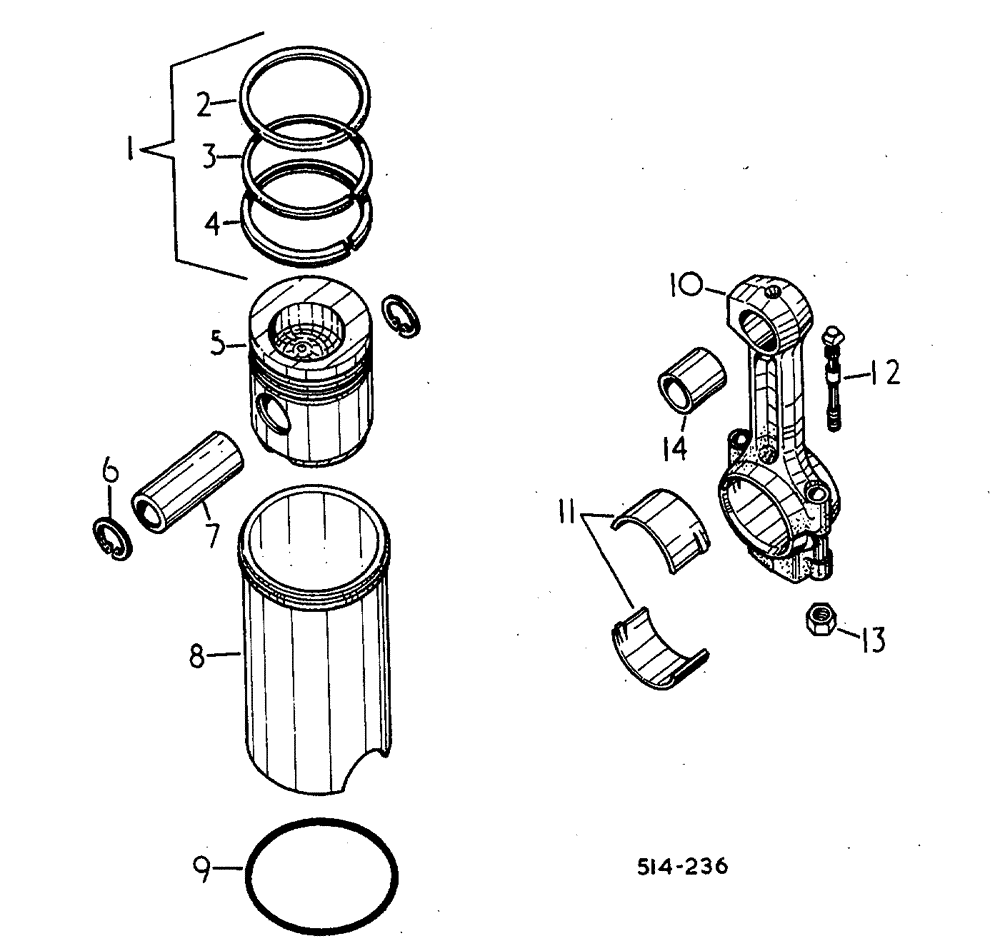

Запчасти Case 3400 (107) - CONNECTING RODS, PISTONS AND CYLINDER SLEEVES (10) - ENGINE

1

3139594R91

PISTON RING

1шт.

1

671510R91

SET OF RINGS

RING, set piston optional, used w/3 ring pistons

1шт.

1

3059262R92

PISTON RING SET

set used w/4 pistons

1шт.

2

3055600R2

RING

compression, first, used w/4 pistons

3шт.

2

RING, compression, first, used w/3 ring pistons, order set 3139549R91 or 671510R91

3шт.

3

3055332R1

RING

SPARE PART compression, second, used w/4 pistons

3шт.

3

RING, compression, second, used w/3 ring pistons, order set 3139549R91 or 671510R91

3шт.

4

3055334R91

RING, compression fourth, used w/4 ring pistons

3шт.

4

RING, compression, third, used w/3 ring pistons, order set 3139549R91 or 671510R91

3шт.

5

3139591R92

PISTON ASSY

PISTON ASSEMBLY, w/sleeve 3 piston ring

3шт.

5

3136070R94

PISTON

PISTON ASSEMBLY, w/sleeve 4 piston ring order piston 3139591R92

3шт.

6

933327R1

SNAP RING,M36, Int

piston pin retainer

6шт.

7

3055217R2

PISTON PIN

piston

3шт.

8

SLEEVE CYL not serviced separately

3шт.

9

3055021R2

O-RING

packing

3шт.

10

3055030R23

CONNECTING ROD

ROD, connecting w/two bolts and bushing

3шт.

11

3055351R91

BEARING ASSY

connecting rod, STD

3шт.

11

3056834R91

BEARING, connecting rod .010 U/S

1шт.

11

3056879R11

BEARING ASSY

.020 U/S

1шт.

11

3056781R11

CRANKSHAFT BEARING

1шт.

12

3055033R11

BOLT

Connecting rod w/nut

6шт.

13

NUT, connecting rod bolt

6шт.

14

3132018R1

BUSHING

PISTON PIN

3шт.

3055333R1

RING

compression, third, used w/4 pistons

3шт.
