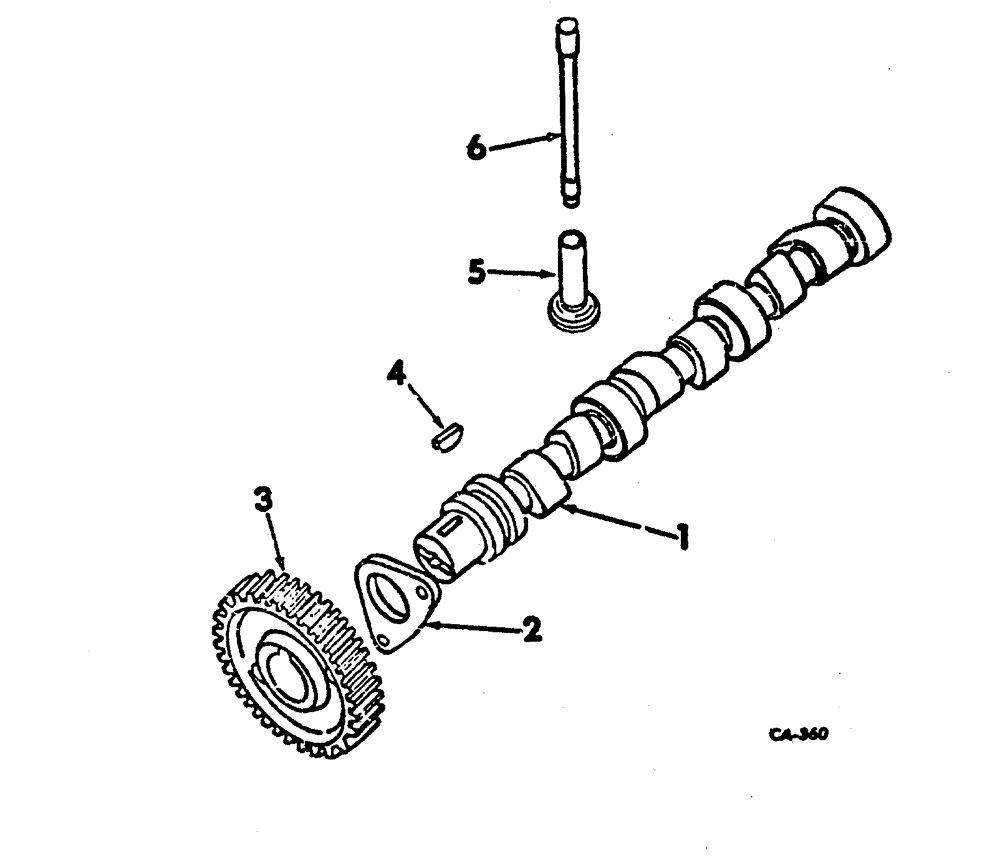

Запчасти Case 3400 (106) - CAMSHAFT AND RELATED PARTS (10) - ENGINE

1

3055045R1

CAM

CAMSHAFT

1шт.

2

3055051R1

THRUST PLATE

PLATE, camshaft thrust

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

3

3055176R1

PINION

GEAR, 66T camshaft

1шт.

4

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

Camshaft gear

1шт.

5

3055052R1

TAPPET

valve

6шт.

6

3055054R92

PUSH ROD

ROD, valve push optional w/rod 3136967Rl and 3144341Rl

6шт.

6

3136967R1

ROD

valve push optional w/3055054R92 and 3144341Rl

6шт.

6

3144341R1

PUSH ROD

valve optional w/3136967Rl and 3055054R92

6шт.
