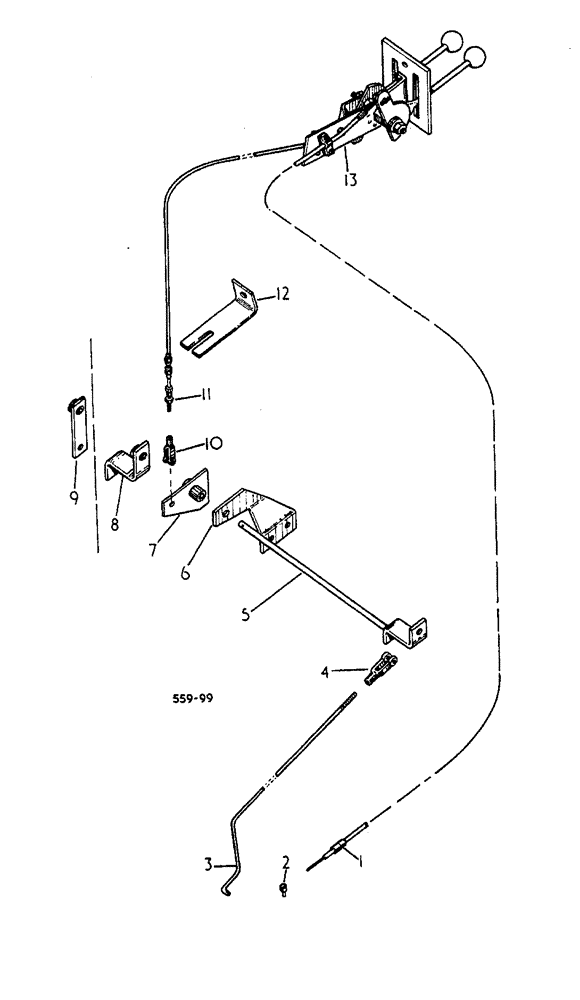

Запчасти Case 3400 (101) - GOVERNOR AND CHOKE CONTROLS (10) - ENGINE

1

3116560R1

CABLE, shut off control

1шт.

3113467R1

FASTENER

push on

1шт.

2

3116558R1

PIVOT

fuel shut off lever swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 x 3/8 SLD FIL HD MACH

1шт.

120392

WASHER,1/4", SAE

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 x 1/2

1шт.

3

528321R3

ROD

control

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 x 1/2

1шт.

4

116383

CLEVIS

1/4 ADI end rod

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 x 1/2

1шт.

138083

PIN

1/4 x 61/64 rod end

1шт.

5

3116554R1

ARM ASSY.

PIVOT

1шт.

6

535974R1

BRACKET

ASSEMBLY CROSS. SHAFT

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

7

3113604R1

ARM

ASSEMBLY, throttle

1шт.

8

3113602R1

SPARE PART ARM ASSEMBLY, pivot

1шт.

9

19443R1

PIN,5/32" x 5/8", Coiled

Not applicable

1шт.

10

110322

10 ADJ rod end

1шт.

138082

CLEVIS PIN,3/16" x .580"

3/16 x 19/32, rod end

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 x 1/2

1шт.

11

3116559R1

CABLE

throttle control

1шт.

66739C1

CLIP, control cable retainer

1шт.

12

535980R1

SPARE PART control cable

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

13

537378R92

SPARE PART ASSEMBLY, throttle for components, see list of parts under details of throttle control

1шт.

121772

HOSE

SCREW, 1/4-20 x 5/8 OVAL HD SLT MACH

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

2шт.
