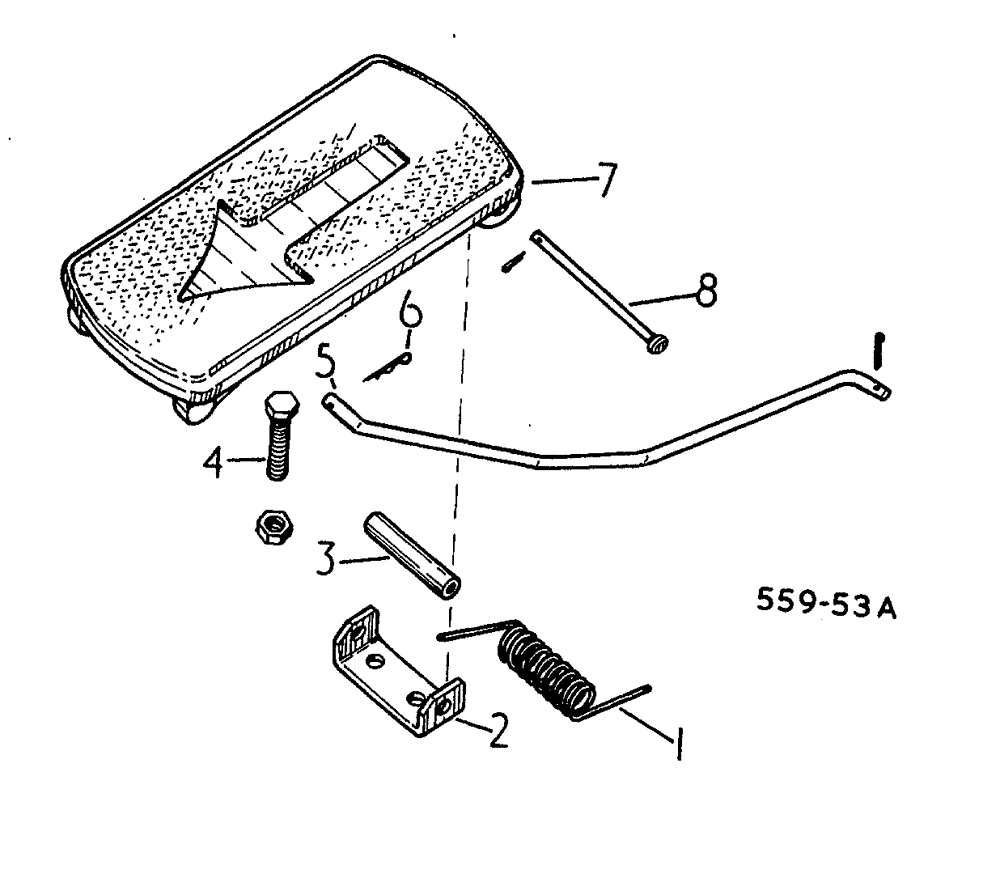

Запчасти Case 3400 (100) - FOOT ACCELERATOR (10) - ENGINE

1

393981R1

SPRING

PEDAL return

1шт.

2

536387R1

BRACKET

PEDAL pivot

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3

398935R1

SPACER

1шт.

4

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

Foot accelerator stop

1шт.

5

3113606R1

ROD

ACCELERATOR

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

120394

WASHER,3/8", SAE

1шт.

6

585614R1

PIN

hair COT

1шт.

7

536521R1

PEDAL

FORWARD AND ACCELERATOR

1шт.

8

536522R1

PIN

headed

1шт.

120392

WASHER,1/4", SAE

1шт.

103383

COTTER PIN,1/8" x 1/2"

1шт.
