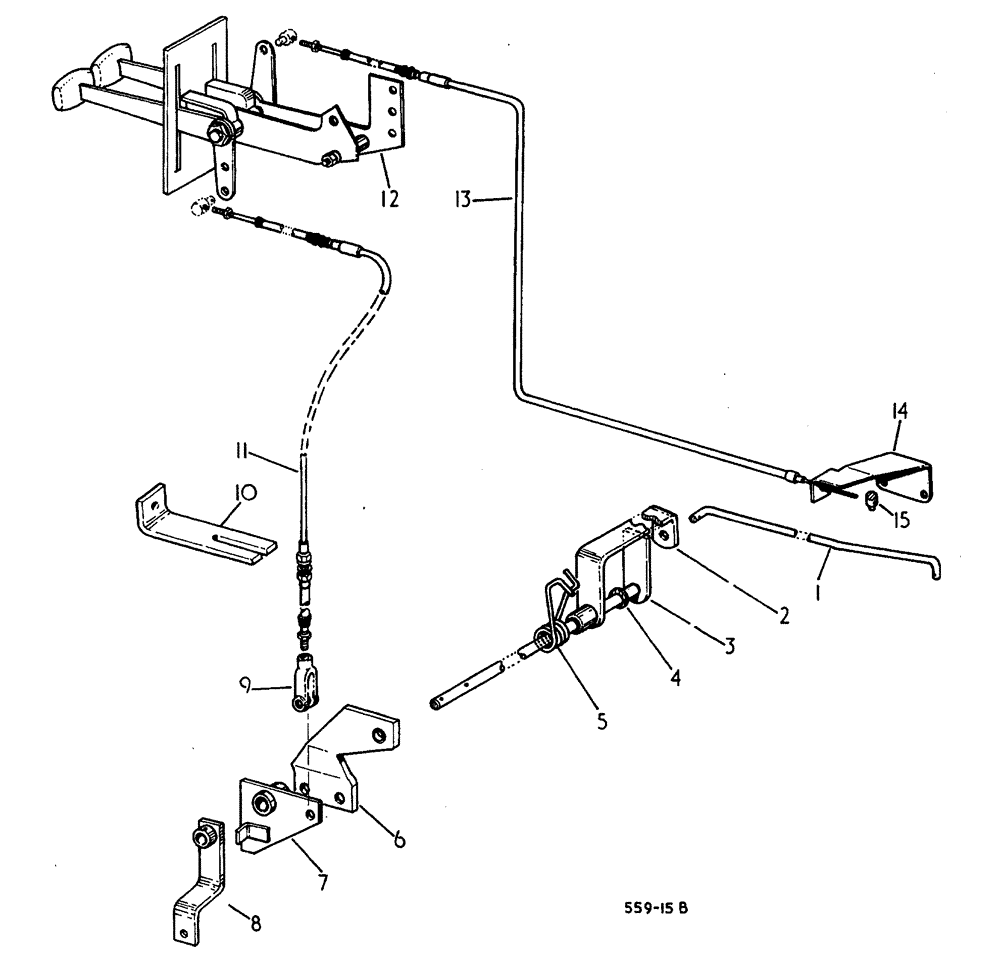

Запчасти Case 3400 (099) - GOVERNOR AND CHOKE CONTROLS (10) - ENGINE

1

3112794R1

SPARE PART control

1шт.

432-48

COTTER PIN,1/16" x 1/2"

5/16 x 1/2

2шт.

2

3112799R1

LEVER, CPTE. governor control

1шт.

3

539457R1

ARM

ASSEMBLY

1шт.

4

3112804R1

FRICTION WASHER

1шт.

5

3112803R1

SPRING

1шт.

6

535974R1

BRACKET

ASSEMBLY, cross shaft

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

7

3113604R1

ARM

ASSEMBLY, throttle synchromesh drive tractors

1шт.

7

539945R1

ARM

ASSEMBLY, throttle hydrostatic drive tractors

1шт.

8

3113602R1

SPARE PART ARM ASSEMBLY, pivot synchromesh drive tractors

1шт.

19443R1

PIN,5/32" x 5/8", Coiled

1шт.

9

NLS

NO LONGER SERVICED

No.10 ADJ rod end

1шт.

138082

CLEVIS PIN,3/16" x .580"

rod end, 3/16 x 19/32

1шт.

432-48

COTTER PIN,1/16" x 1/2"

1/16 x 1/2

1шт.

10

535980R1

SPARE PART control cable

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

11

536524R1

CABLE

throttle control

1шт.

12

536523R91

SPARE PART ASSEMBLY, throttle for components, see list of parts under details of throttle control, OPTIO

1шт.

12

537378R91

SPARE PART ASSEMBLY, throttle for components, see list of parts under details of throttle control, optional w/536523R91

1шт.

121772

HOSE

SCREW, 1/4-20 x 5/8 OVAL'HD SLT MACH

2шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

13

539459R1

CABLE

shut off control

1шт.

3113467R1

FASTENER

stop control cable

1шт.

14

3112808R1

BRACKET

BRACKET, fuel shut off case support

1шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, hex HD CAP, 1/4-28 x 1/2 ZND

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

15

396388R1

PIVOT

fuel shut, off lever swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 x 3/8 SLT FIL HD MACH

1шт.

120392

WASHER,1/4", SAE

1шт.

432-48

COTTER PIN,1/16" x 1/2"

1/16 x 1/2

1шт.

539456R91

ARM and LEVER ASSEMBLY, COMP. cross over consists of KEF NOS. 2. 3.4. and 5.

1шт.
