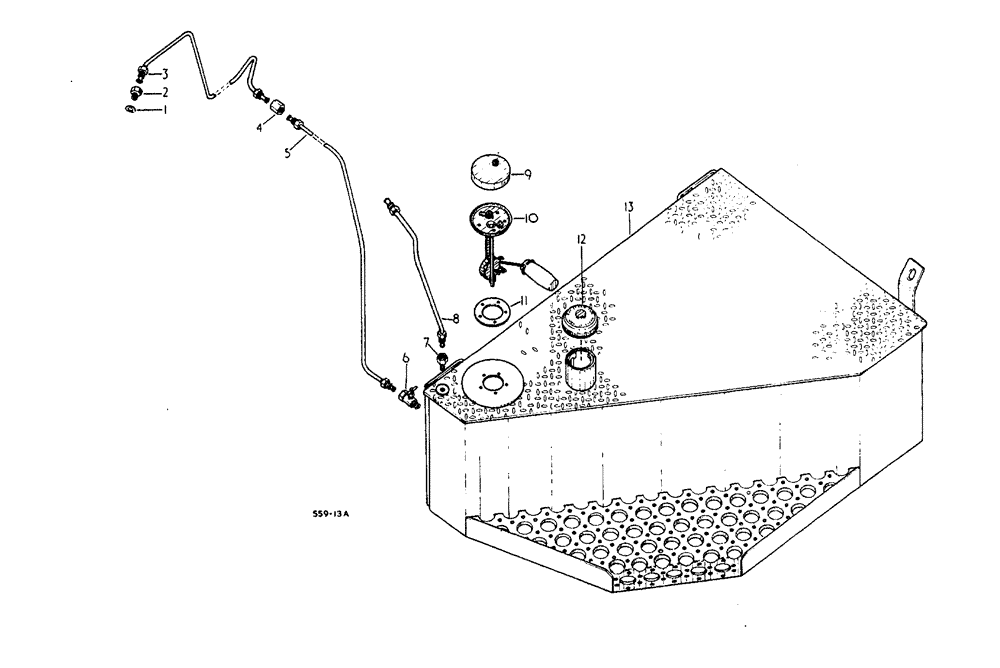

Запчасти Case 3400 (097) - FUEL TANK, PIPING AND CONNECTIONS (10) - ENGINE

1

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

2

3056600R1

ADAPTER

ADAPTOR

1шт.

3

539603R1

TUBE

TUBE, diesel fuel tank

1шт.

4

442337

NUT

UNION, inverted flared tube, 1/2-20

1шт.

5

539602R1

PIPE FITTING

diesel fuel intake

1шт.

6

398110R91

VALVE

ASSEMBLY, fuel shut off

1шт.

7

191554

CONNECTOR, ELEC

CONNECTOR bosch injection CR pump

1шт.

7

87016922

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

REDUCER, pipe, 1/4 to 1/8

1шт.

116341

ELBOW, pipe C.A.V. injection 45 DEG

1шт.

8

67697C1

SPARE PART fuel return

1шт.

400506R1

SPARE PART bosch injection CR pump

1шт.

8

536326R1

SPARE PART diesel fuel return C.A.V. injection

1шт.

9

528360R1

CAP

COVER, transmitter unit

1шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

10-24 x 3/8 PAN HD

1шт.

796002R1

COPPER WASHER

sealing

1шт.

10

536319R1

TRANSMITTER

SPARE PART GAUGE electric fuel

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

unit mounting

5шт.

11

528359R1

GASKET

transmitter

1шт.

12

536845R1

PLUG

CAP ASSEMBLY, fuel filler

1шт.

13

539183R1

TANK

ASSEMBLY, fuel

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

6шт.

103321

LOCK WASHER,3/8"

6шт.

444619

PIPE CLAMP

PLUG, auto hex HD CAP, 1/4-18 C Z

1шт.
