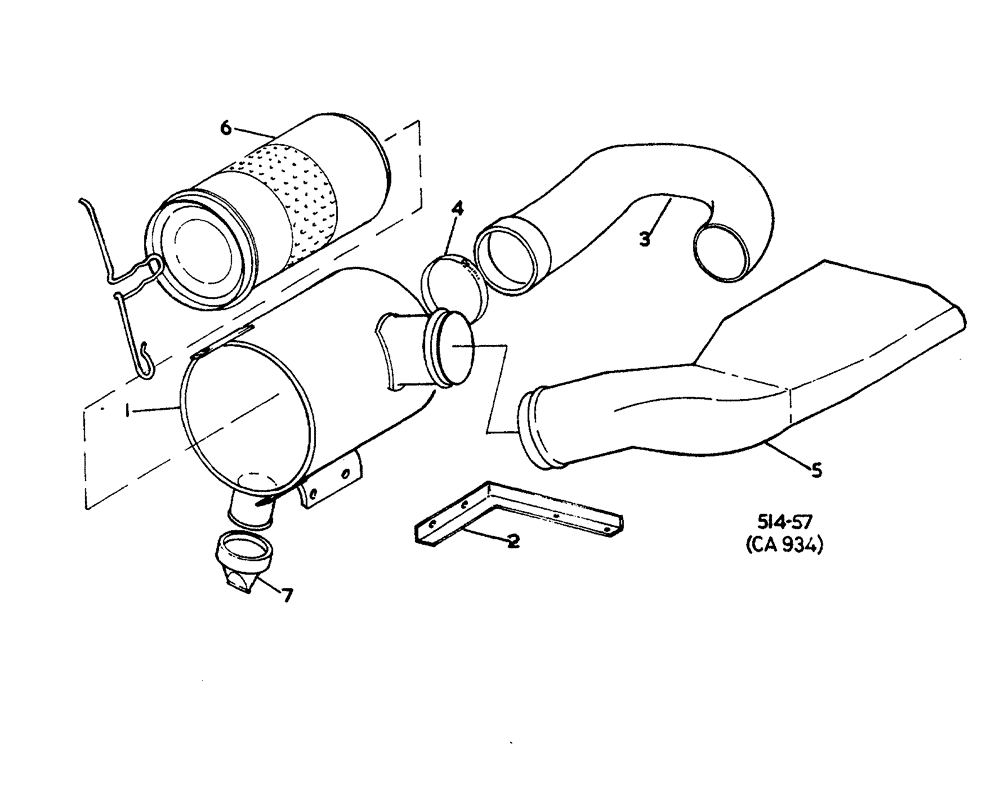

Запчасти Case 3400 (096) - AIR CLEANER AND CONNECTIONS - DIESEL ENGINE TRACTORS (10) - ENGINE

1

402612R92

AIR CLEANER

CLEANER ASSEMBLY, air includes Ref NOS 6 and 7

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

2

527270R1

SPARE PART ASSEMBLY, air cleaner mounting

1шт.

3

537497R1

HOSE

air cleaner outlet

1шт.

4

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

NO. 44 HOSE

2шт.

5

529864R1

DUCT

air inlet

1шт.

6

529854R2

AIR FILTER

ASSEMBLY

1шт.

7

529855R1

VALVE

dust unloader

1шт.

21423R1

CLAMP

Hose, 3-5/16 optional w/539994Rl

1шт.

539994R1

CLAMP

HOSE, 3-5/16 optional w/21423Rl

1шт.
