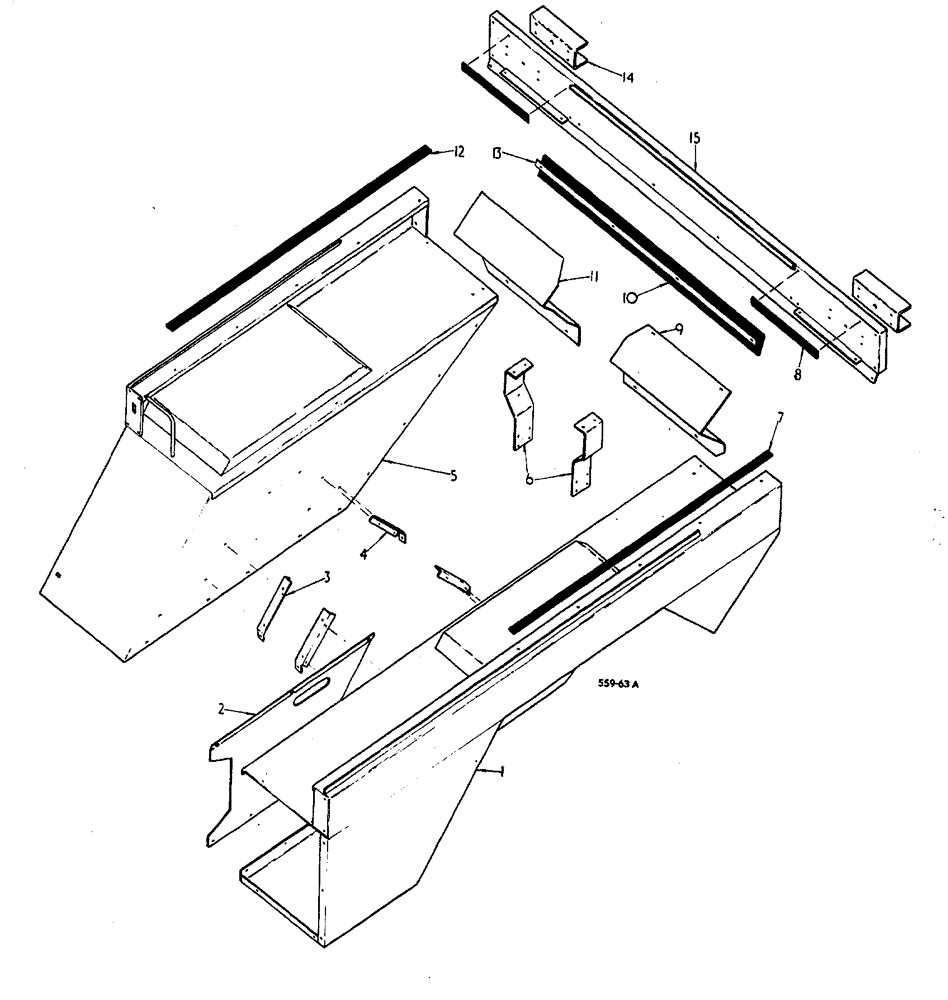

Запчасти Case 3400 (146) - WEATHER CAB LOWER - REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

3113817R1

FENDER ASSEMBLY, welded L. H. up to/00570

1шт.

1

3116331R1

FENDER

ASSEMBLY, welded L. H. 00571/up

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, hex HD, 5/16-18 x 3/4

1шт.

708853R1

NUT

lock, 5/16

1шт.

2

3113830R1

PLATE

ASSEMBLY, cover

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, 5/16

5шт.

3

3113871R1

STRIP

FENDER MTG ASSEMBLY

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

708853R1

NUT

lock, 5/16-18

8шт.

4

3113872R1

STRIP

FENDER MTG ASSEMBLY

2шт.

5

3113858R1

FENDER ASSEMBLY, welded R. H. up to/00570

1шт.

5

3116332R1

FENDER

ASSEMBLY, welded R. H. 00571/up

1шт.

6

545093R1

BRACKET

foot rest

2шт.

Supplied with cab complete.

1шт.

To be applied when backhoe is fitted.

1шт.

7

3113865R1

STRIP, rubber sealing

1шт.

8

3116349R1

STRIP, sealing rear corner

2шт.

9

3113966R1

PLATE, hose guard L. H. up to/00570

1шт.

9

3116367R1

GUARD

PLATE, hose guard L. H. 00571/up

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, hex, 5/16 UNC x 3/4 ZND

2шт.

80681

LOCK WASHER,5/16"

2шт.

495-21031

WASHER,1/4"

5/16 x 3/4 x .051

6шт.

To be applied when backhoe is fitted.

1шт.

10

3113876R1

STRIP

sealing

1шт.

10

3113875R1

MEMBER

sealing up to/00570

2шт.

10

3116350R1

STRIP, sealing 00571/up

1шт.

11

3113967R1

RATE, hose guard R. H. up to/00570

1шт.

11

3116368R1

GUARD

PLATE, hose R. H. 00571/up

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, hex, 5/16 UNC x 3/4 ZND

2шт.

80681

LOCK WASHER,5/16"

2шт.

495-21031

WASHER,1/4"

6шт.

12

3113865R2

STRIP

rubber sealing

1шт.

13

3113877R1

STRIP

retaining

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, hex HD, 5/16-18 x 3/4

8шт.

708853R1

NUT

lock, 5/16 up to/00570

8шт.

13

3116351R1

STRIP, retaining seal to backhoe platform, bolt, hex HD, 5/16-18 x 3/4 -4 nut, 5/16-18 UNC LOC

1шт.

14

3113939R1

GUARD

stoplight

2шт.

15

3113803R1

MEMBER

ASSEMBLY, rear, cross up to/00570

1шт.

15

3116324R1

CROSS

MEMBER ASSEMBLY, rear, 00571/up

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, hex HD 5/16-18 x 3/4

12шт.

708853R1

NUT

5/16 lock

12шт.
