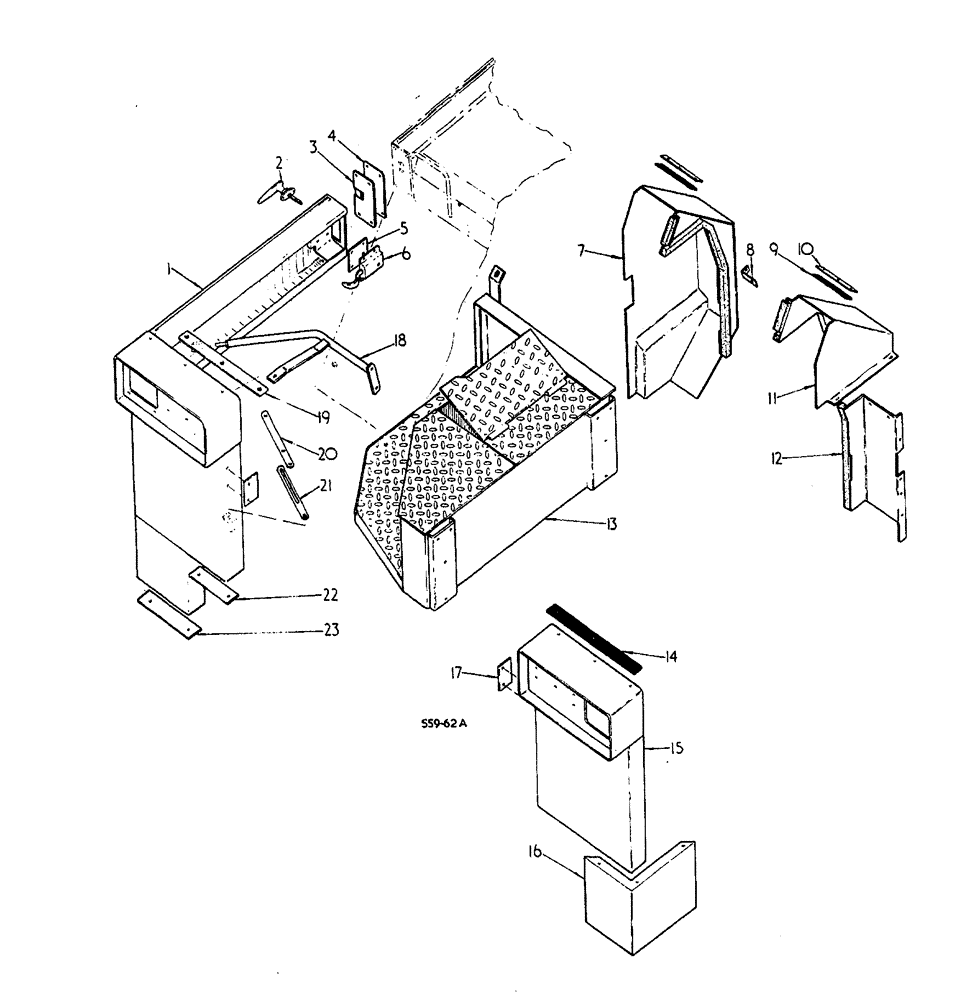

Запчасти Case 3400 (145) - WEATHER CAB - LOWER FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

3113834R1

DOOR

and support ASSEMBLY, welded up to/00570

1шт.

3116344R2

door and support ASSEMBLY, welded 00571/up

1шт.

2

3113866R1

GRIP

DOOR handle

1шт.

134530

NUT,Hex, #6 - 32

M/C

2шт.

133432

SCREW,Sl Hd, #6 - 32 x 1/2"

NO. 6-32 x 1/2 FLT HD SLT M/C

2шт.

492-11006

LOCK WASHER,#6

2шт.

3

3116383R1

PLATE

door striker

1шт.

113992

BUSHING

1/4 UNC x .88 long

4шт.

4

3116394R1

SHIM

SHIM, door striker plate

1шт.

5

3116382R1

SHIM

as required

1шт.

6

3108506R1

LOCK

LATCH, cab door up to/00570

1шт.

6

3115426R1

LATCH

cab door 00571/up

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

SCREW, 1/4 UNC x 3/4 PAN HD STD

4шт.

7

3113903R1

PANEL ASSY.

COVER, complete R. H. up to/00570

1шт.

7

3116363R1

COVER, complete R. H. 00571/up

1шт.

NLS

NO LONGER SERVICED

BOLT, 1/4-20 x 3/4

3шт.

3061228R91

LOCK NUT

lock, 1/4-20 see note

1шт.

8

3113894R1

BRACKET

R. H. closure securing

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

9

3113909R2

SEALING STRIP

SEAL RUBBER, top hose closures

2шт.

24226R1

SCREW,Slotted Pan Hd, #8 x 1/4"

6шт.

495-21019

WASHER,#8

NO. 8 plain

6шт.

10

3113910R1

STRIP

retaining

2шт.

11

3113895R1

COVER, complete upper hose L. H.

1шт.

12

3113900R1

PANEL ASSY.

COVER, complete lower hose L. H.

1шт.

24226R1

SCREW,Slotted Pan Hd, #8 x 1/4"

Closure to fender

4шт.

Not supplied with cab complete.

1шт.

13

3139952R1

BOX ASSEMBLY, battery see note

1шт.

Not supplied with cab complete.

1шт.

14

3113816R2

STRIP

rubber sealing light tower

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, hex HD, 5/16-18 x 3/4

3шт.

708853R1

NUT

lock, 5/16

3шт.

15

3113809R1

SUPPORT

ASSEMBLY, front L. H. up to/00570

1шт.

15

3116327R1

SUPPORT

ASSEMBLY, front L. H. 0057I/up

1шт.

16

3113832R1

SKIRT

ASSEMBLY bottom

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, hex HD, 5/16-18 x 3/4

3шт.

708853R1

NUT

lock, 5/16

3шт.

17

3113929R1

BRACE up to/00570

2шт.

17

3116373R1

SHIM

loader to bracket 00571/up

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

SLM

4шт.

120394

WASHER,3/8", SAE

.4 x .8 x .051

4шт.

18

3116355R1

HANDLE

complete grab

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

Handle to mainframe

2шт.

120377

NUT,3/8" - 16, Gr 5

Handle to light tower

2шт.

19

3116365R1

SUPPORT, complete grab handle

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

3шт.

708853R1

NUT

lock, 5/16-18 UNC

3шт.

20

3116348R1

STRAP

RETAINER

1шт.

21

3116347R1

STRAP

RETAINER, guide

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

120394

WASHER,3/8", SAE

.406 x .812 x .051 ZND

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

22

3113857R1

SHIM

as required

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

.50 UNC x 1.25 Ig

2шт.

120390

WASHER,1/2"

.056 plain

2шт.

120384

WASHER,1/2"

2шт.

23

3113856R1

SHIM

as required

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

.50 UNC x 1.25 g

2шт.

120390

WASHER,1/2"

.56 plain

2шт.

120384

WASHER,1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

2шт.
