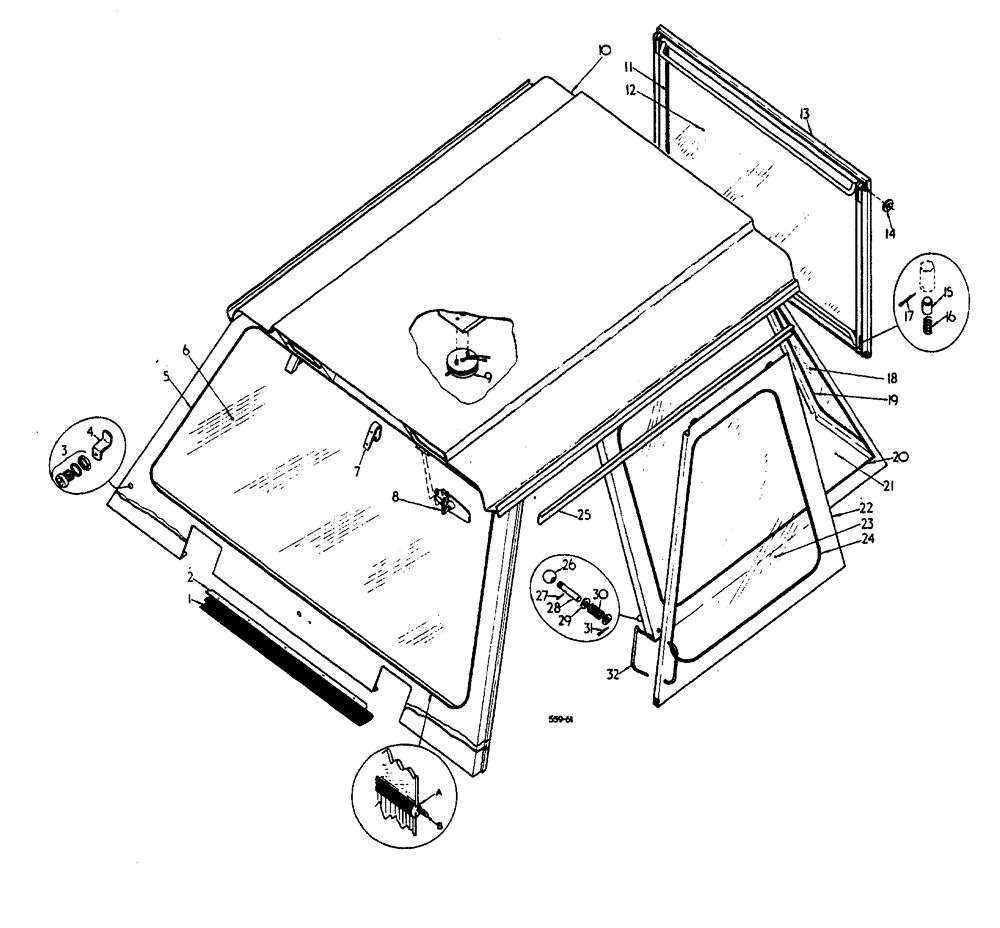

Запчасти Case 3400 (144) - WEATHER CAB UPPER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

3113777R2

STRIP

sealing, windscreen

1шт.

2

3113776R1

STRIP

seal retaining, windscreen

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

5шт.

3061228R91

LOCK NUT

lock, 1/4

5шт.

3

3113948R91

LOCK

BARREL, window

1шт.

4

3113949R1

PLATE

TAB, lock

1шт.

436694

SCREW,Slotted Pan Hd, #8-32 x 7/16"

NO. 8-32 x 7/16 PAN HD SLID M/C

1шт.

121841

LOCK WASHER,#8

1шт.

5

3113912R1

SEAL ASSY.

weather strip, see view A

1шт.

5

3113913R1

SEAL

filler strip, see view B

1шт.

6

3113911R1

GLASS

WINDSCREEN

1шт.

7

3113775R1

CLIP

rear door safety

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

708853R1

NUT

lock, 5/16-18

2шт.

8

3113947R1

MIRROR

rear view

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

NO. 10-24 x 5/8 PAN HD SLTD M/C

2шт.

120217

LOCK WASHER,#10

2шт.

9

3113944R91

X

LIGHT ASSEMBLY, interior roof

1шт.

3115362R91

HOLDER

ASSEMBLY, bulb and switch

1шт.

3115360R1

BULB

1шт.

3115361R1

LENS

1шт.

10

3113723R92

TOP

CPTE, cab

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, hex HD, 5/16-18 x 3/4

16шт.

708853R1

NUT

5/16 lock

18шт.

11

3113921R1

SEAL ASSY.

weather strip, see view A

1шт.

11

3113922R1

SEAL

filler strip, see view B

1шт.

12

3113920R1

GLASS

rear window

1шт.

3113778R91

SPARE PART

DOOR ASSEMBLY, rear consists of Ref. NOS, Serial Range: 13-17

1шт.

13

3113779R1

door CPTE. rear

1шт.

14

3113788R1

ROLLER

4шт.

137204

COTTER PIN,1/8" x 1 1/2"

4шт.

15

3113786R1

VALVE

PLUNGER, keeper

4шт.

16

3113787R1

SPRING

keeper

4шт.

17

137204

COTTER PIN,1/8" x 1 1/2"

4шт.

18

3113923R1

GLASS

rear corner window

2шт.

19

3113924R1

STRIP

SEAL, weather, see view A

2шт.

19

3113925R1

STRIP

SEAL, filler, see view B

2шт.

20

3113918R1

STRIP

SEAL, weather, see view A

2шт.

20

3113919R1

SEAL

filler strip, see view B

2шт.

21

3113917R1

GLASS

side window fixed

2шт.

22

3113789R1

DOOR

DOOR ASSEMBLY, sliding L. H.

1шт.

22

3113790R1

SPARE PART

DOOR ASSEMBLY, sliding R. H.

1шт.

23

3113914R1

GLASS

sliding window

2шт.

24

3113915R1

SEAL

weather strip, see view A

2шт.

24

3113916R1

STRIP

SEAL, filler, see view B

2шт.

25

3113773R1

TRACK CHAIN

L. H.

1шт.

25

3113774R1

TRACK CHAIN

R. H.

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

3061228R91

LOCK NUT

lock, 1/4-20

10шт.

26

3113867R1

KNOB

2шт.

27

21247R1

DOWEL,1/8" x 3/4"

1/8 x 3/4

2шт.

28

3113869R1

SPARE PART

PLUNGER, stop

2шт.

29

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

.375 x .750 x .051

4шт.

30

3113868R1

SPRING

2шт.

31

137159

COTTER PIN

3/32" x 5/8"

2шт.

32

3113802R1

HANDLE

inside

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

8шт.

1092860R1

PRODUCT GRAPHIC

rear window safety

1шт.
