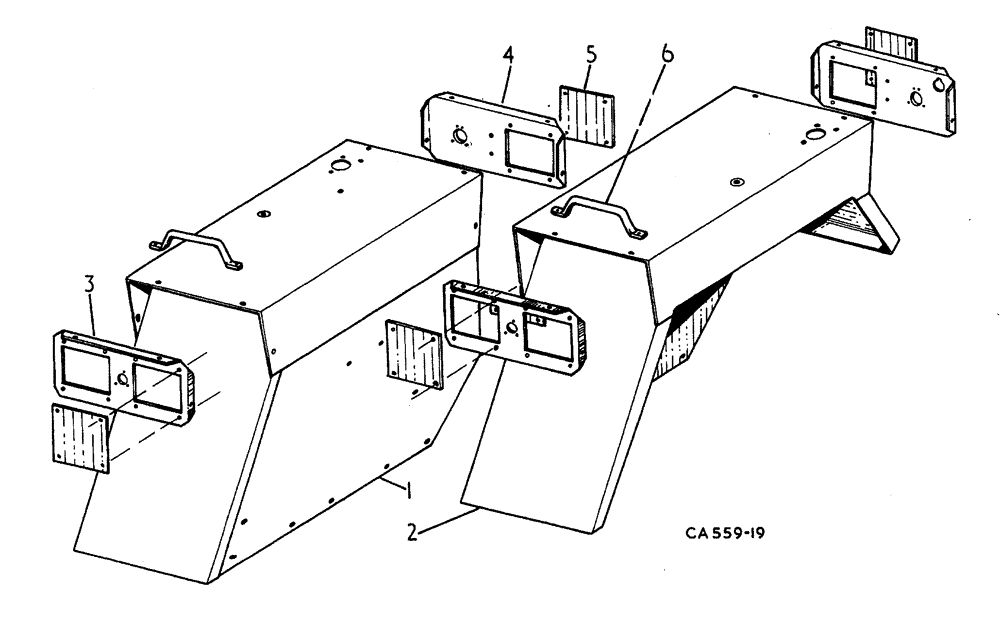

Запчасти Case 3400 (140) - REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

535496R2

SPARE PART ASSEMBLY, R. H.

1шт.

2

535495R2

SPARE PART ASSEMBLY, L. H.

1шт.

19417R1

BOLT

short, 3/8 x 1 SQ NK CRG

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, hex HD, 3/8 -16 x 1-1/4

10шт.

469668R1

WASHER

.406 x .750 x .056 ZND

10шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .051 C Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

535183R2

SELF-TAP SCREW

HD CAP, washer bevel

12шт.

117966

GROMMET,5/8" ID x 1 11/64" x .188"

RUBBER

2шт.

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

RUBBER

6шт.

3

535513R1

PANEL

ASSEMBLY, headlight MTG

2шт.

4

535516R1

PANEL

ASSEMBLY, rear lamp MTG L. H.

1шт.

4

535515R1

PANEL

ASSEMBLY, rear lamp MTG R. H.

1шт.

5

537944R1

COVER

light orifice

4шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

NO 10-32 x 1/2 C Z PAN HD SLT MACH

16шт.

120391

WASHER,#10

7/32 x 1/2 x .036 C Z

16шт.

120614

NUT,Hex, #10 - 32

16шт.

6

397252R1

HANDLE

assist

2шт.

21534R1

BOLT,Hex, 5/16" - 18 x 1"

SCREW, hex HD CAP, 5/16-18 x 1 CAD

4шт.
