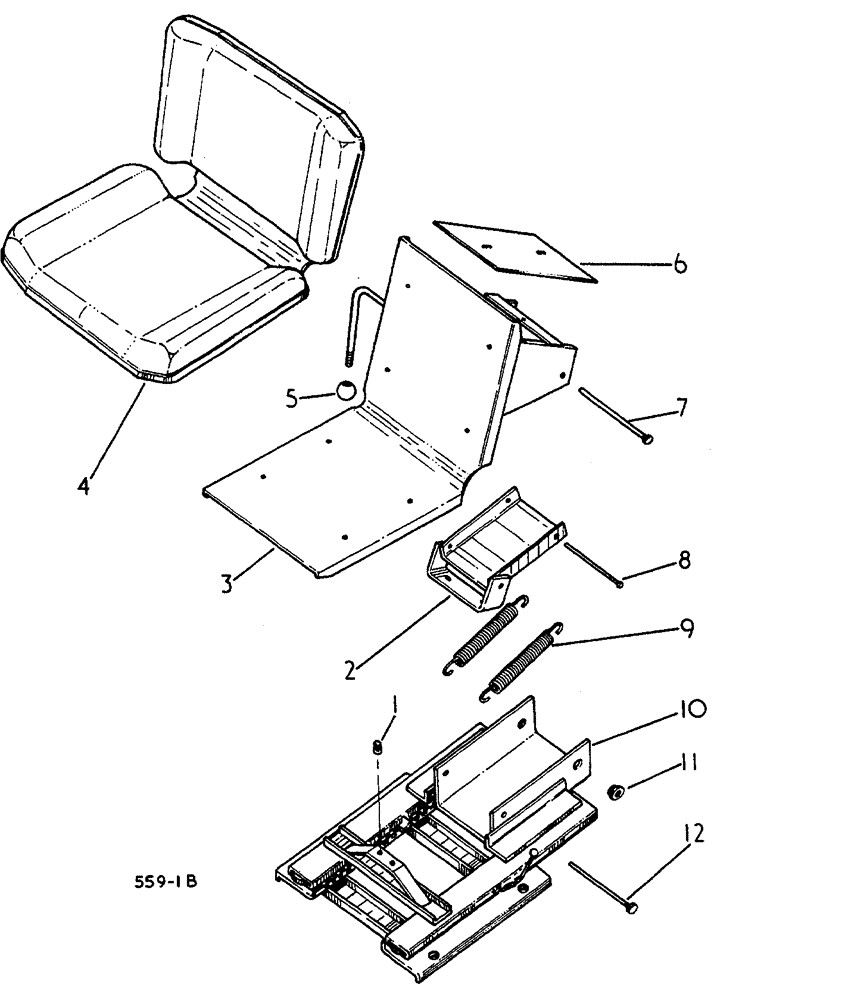

Запчасти Case 3400 (139) - TWO WAY SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

535329R1

BUMPER

up to /000586, excluding 553, 557, 559, 560, 574, 575, 576, 577, 578, 582, 583, 584 and 585

2шт.

2

546762R1

SPARE PART ASSEMBLY, pivot

1шт.

3

3113482R1

PIVOT

ASSEMBLY, two way seat 000511/up, excluding, Serial Range: 522-530

1шт.

3

3113458R1

PIVOT ASSEMBLY, two way seat up to/000510, including, Serial Range: 522-530

1шт.

535183R1

LOCK SCREW

WASHER HD CAP, 5/16-18 x 5/8 , 6 required w/pivot 3113458Rl

2шт.

930046R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 (Metric)

8шт.

103320

LOCK WASHER,5/16"

000511/up, excluding 522 to 530

8шт.

4

3113484R91

SEAT

ASSEMBLY, cushion 000511/up, excluding, Serial Range: 522-530

2шт.

4

534894R91

SEAT CUSHION

SEAT ASSEMBLY, cushion up to/000510, including, Serial Range: 522-530

1шт.

5

264097R2

BALL

HANDLE trip lever

1шт.

6

3113459R1

COVER

SEAT two way

1шт.

7

546765R1

SPARE PART headed, 1/2 x 7-1/4

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

120396

WASHER

17/32 x 1-1/16 x .074

1шт.

8

3113943R1

PIN

headed, 3/8 x 5-5/16

1шт.

896045R1

SNAP RING,#37, Ext

1шт.

9

546768R1

SPRING, two way seat

2шт.

10

546756R1

SPARE PART SUSPENSION ASSEMBLY, two way seat

1шт.

535183R1

LOCK SCREW

WASHER HD CAP, 5/16-18 x 3/4

4шт.

11

546761R1

BEARING

seat pivot

2шт.

12

546767R1

PIN,3/8" x 6 1/2"

headed, 3/8 x 6-1/2

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .051

1шт.
