(138) - TWO WAY SEAT

Запчасти Case 3400 (138) - TWO WAY SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

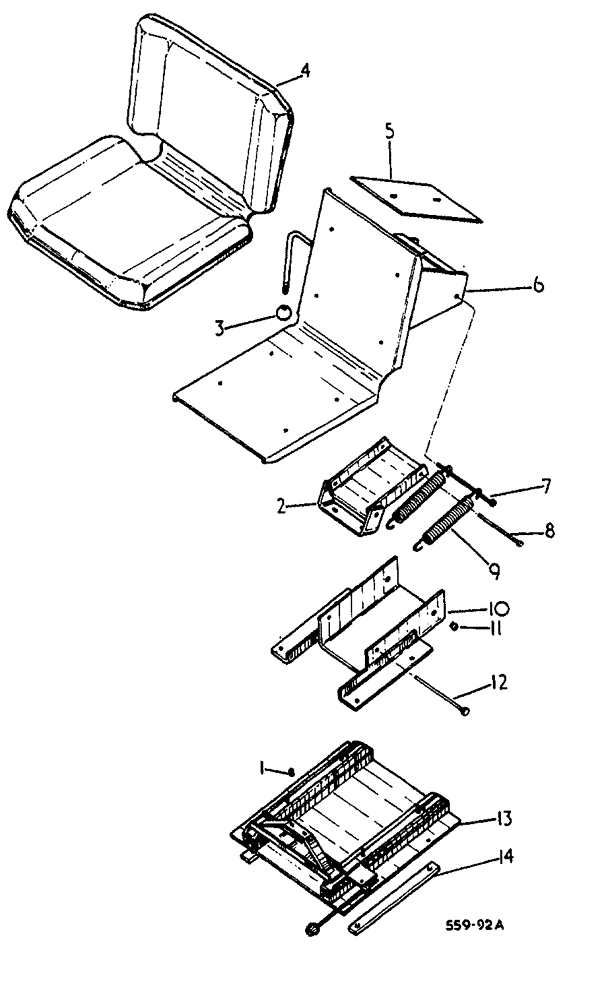

Схема запчастей Case 3400 - (138) - TWO WAY SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
13
7
11
9
1
4
2
5
10
8
6
3
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

535329R1

BUMPER

2шт.

2

546762R1

SPARE PART ASSEMBLY, pivot

1шт.

3

264097R2

BALL

HANDLE trip lever

1шт.

4

3113484R91

SEAT

CUSHION ASSEMBLY

1шт.

5

3113459R1

COVER

SEAT two way

1шт.

6

3113482R1

PIVOT

ASSEMBLY, seat

1шт.

535183R1

LOCK SCREW

WASHER HD CAP, 5/16-18 x 3/4

2шт.

930046

SCREW, M8 x 16 METRIC

8шт.

103320

LOCK WASHER,5/16"

8шт.

1

546765R1

SPARE PART headed, 1/2 x 7-1/4

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .074

1шт.

8

3113943R1

PIN

headed, 3/8 x 5.5/16

1шт.

894045R1

RING, retaining type '£'

1шт.

9

546768R1

SPRING, two way seat

2шт.

10

3113995R1

SUPPORT

BRACKET ASSEMBLY, pivot

1шт.

11

546761R1

BEARING

seat pivot

2шт.

12

546767R1

PIN,3/8" x 6 1/2"

headed, 3/8 x 6-1/2

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .051

1шт.

13

3113937R1

SEAT

SUSPENSION ASSEMBLY, slide rails

1шт.

535183R2

SELF-TAP SCREW

washer HD CAP, 5/16-18 x 3/4

2шт.

181090

BOLT,Hex, 5/16" x 1 1/4"

BOLT, hex HD, 5/16 x 1-1/4

4шт.

116120

LOCK WASHER,5/16"

4шт.

14

3116036R1

STRIP, seat platform

2шт.

( • ) including 553, 557, 559, 560, 574, 575, 576, 577, 578. 582, 583, 584, & 585

1шт.
