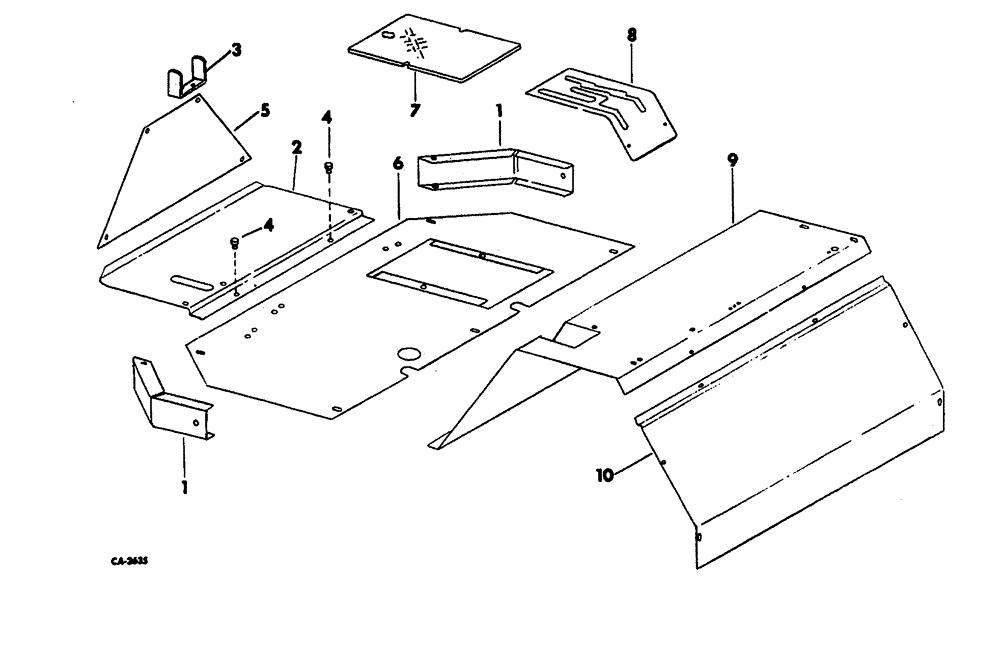

Запчасти Case 3400 (136) - OPERATORS COMPARTMENT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

536381R1

SPARE PART

SIDE ASSEMBLY, deck

2шт.

2

536383R11

FLOOR

TRACTORS front synchromesh transmission

1шт.

2

537048R1

SPARE PART FLOOR, front hydrostatic drive tractors

1шт.

3

538488R1

SPARE PART

STOP, pedal hydrostatic drive tractors

1шт.

535183R2

SELF-TAP SCREW

hex HD CAP, 5/16-18 x 3/4

2шт.

495-21031

WASHER,1/4"

5/16 x 3/4 x .051 C Z

2шт.

120376

NUT,5/16"-18, G5

2шт.

4

535329R1

BUMPER

2шт.

5

536384R1

SPARE PART firewall

1шт.

6

536385R2

SPARE PART DECK ASSEMBLY, floor

1шт.

535183R2

SELF-TAP SCREW

bevel washer HD CAP

27шт.

386451R1

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

washer HD CAP, 5/16-18 x 1

4шт.

120376

NUT,5/16"-18, G5

4шт.

7

536389R1

SPARE PART filter

1шт.

8

536473R1

SPARE PART LEVER trans control, hydrostatic drive tractors

1шт.

8

536472R1

SPARE PART LEVER trans control, synchromesh transmission tractors

1шт.

9

3116563R1

DECK ASSEMBLY, seat

1шт.

9

3116567R1

DECK ASSEMBLY, seal tractors w/ITO ATT and W/0 draft control

1шт.

10

3116571R1

COVER ASSEMBLY, rear

1шт.
