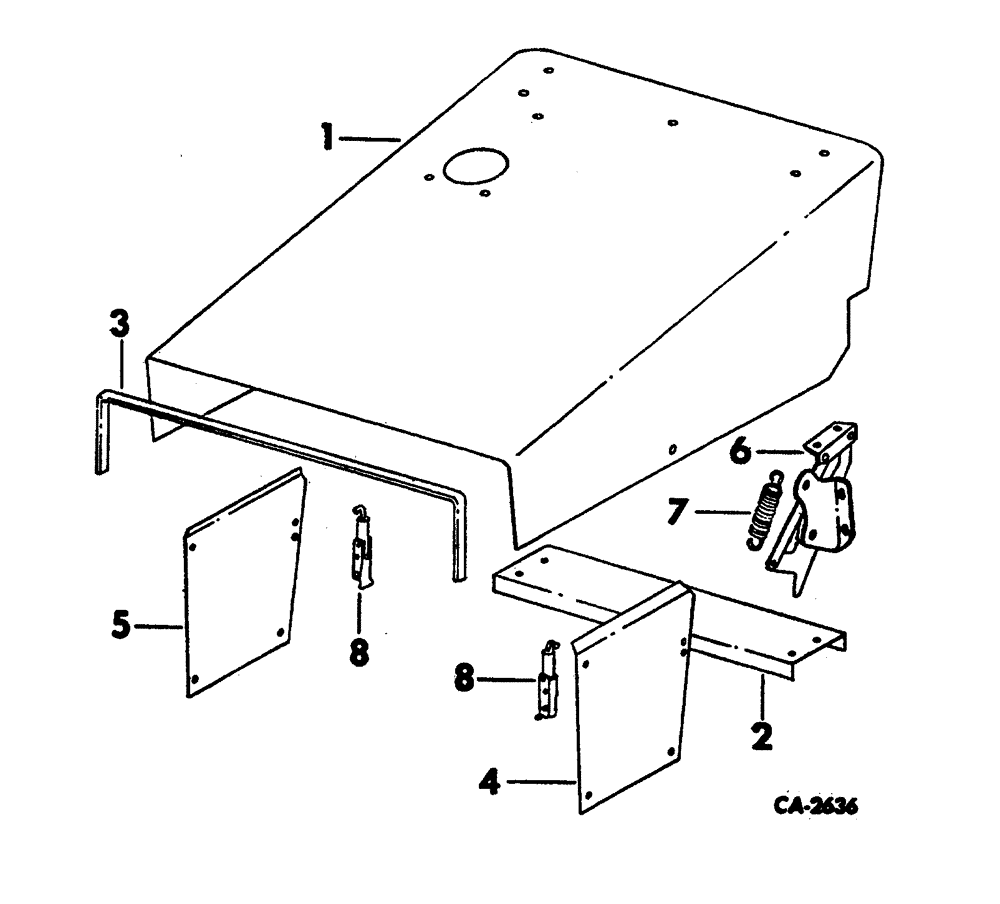

Запчасти Case 3400 (135) - HOOD AND PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

536375R1

SPARE PART TRACTORS diesel engine

1шт.

2

536376R1

SPARE PART REINFORCEMENT hood

1шт.

3

536368R1

SPARE PART TRIM, edge

1шт.

4

537875R1

SPARE PART hood side L. H.

1шт.

5

537876R1

SHEET, hood side R. H.

1шт.

535183R2

SELF-TAP SCREW

bevel washer HD cap

10шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

6

347927C91

HINGE

ASSEMBLY, hood L. H.

1шт.

6

347928C91

HINGE

ASSEMBLY, hood R. H.

1шт.

7

536379R1

SPRING

HOOD hinge

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

4шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

hex HD CAP, 1/2-13 x 1-1/2

4шт.

103323

LOCK WASHER,1/2"

8шт.

102637

NUT,1/2"-13, G5

8шт.

8

536380R1

LATCH

hood

2шт.

19302R1

NUT

NUT, hex, No. 10-24 CAD

4шт.

19298R1

LOCK WASHER

WASHER, reg lock, No. 10 CAD

4шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

No. 10-24 x 3'/8 C Z CR REC PAN HD MACH

4шт.
