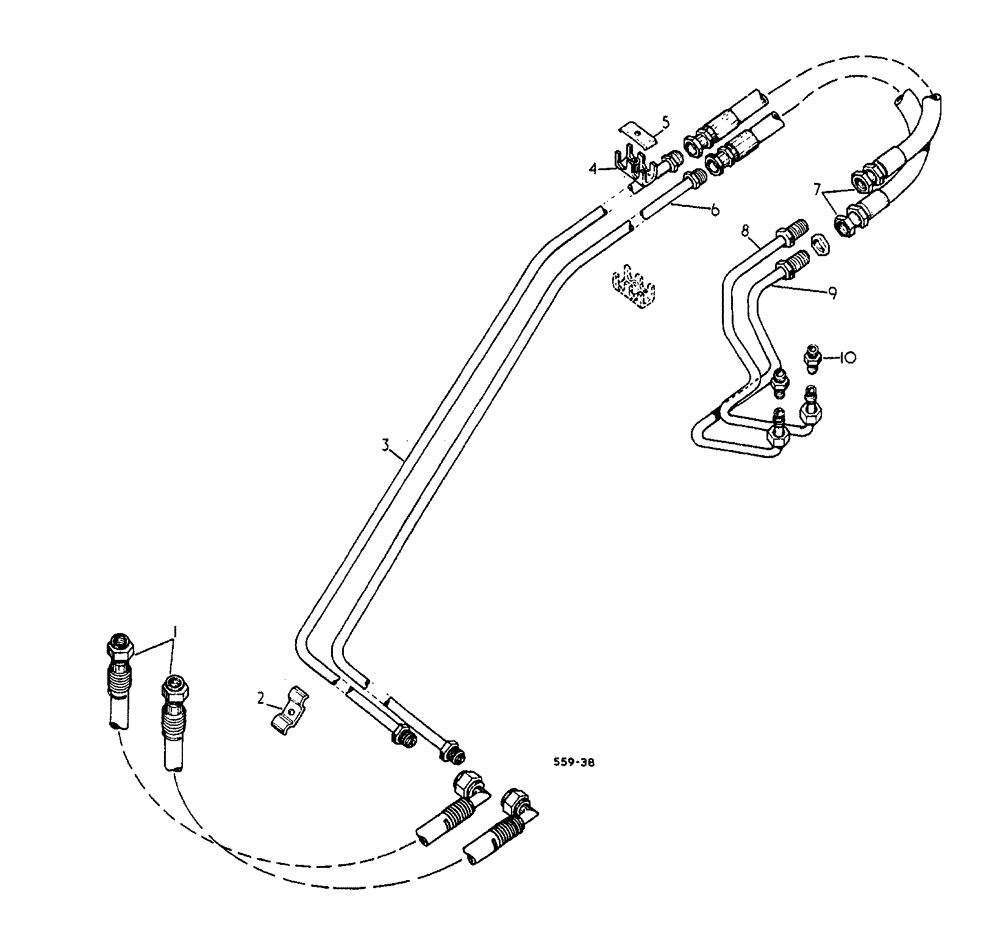

Запчасти Case 3400 (164) - 4 IN 1 BUCKET ATTACHMENT BOOM TUBING (82) - FRONT LOADER & BUCKET

1

3045387R91

HOSE

2шт.

2

3065490R1

BRACKET

CLAMP, pipe

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

BOLT, hex HD, 5/16-18 x 2-1/4 ZNC

2шт.

80681

LOCK WASHER,5/16"

4шт.

3

3113268R1

TUBE

ASSEMBLY

1шт.

4

931921R1

SCREW

SADDLE

1шт.

5

533109R1

CLAMP

3шт.

180071

SPRING

BOLT, 5/16-18 x 3/4

2шт.

6

3113298R1

TUBE

ASSEMBLY

1шт.

7

196604H1

HOSE

2шт.

8

3113296R1

TUBE

ASSEMBLY, rear port

1шт.

9410061

LOCK,Blkhd, 7/8"-14

NUT, 7/8-14

1шт.

9

3113294R1

TUBE

ASSEMBLY, rear port

1шт.

9410061

LOCK,Blkhd, 7/8"-14

NUT, 7/8-14

1шт.

10

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

flared tube short swivel 37 DEG

2шт.
