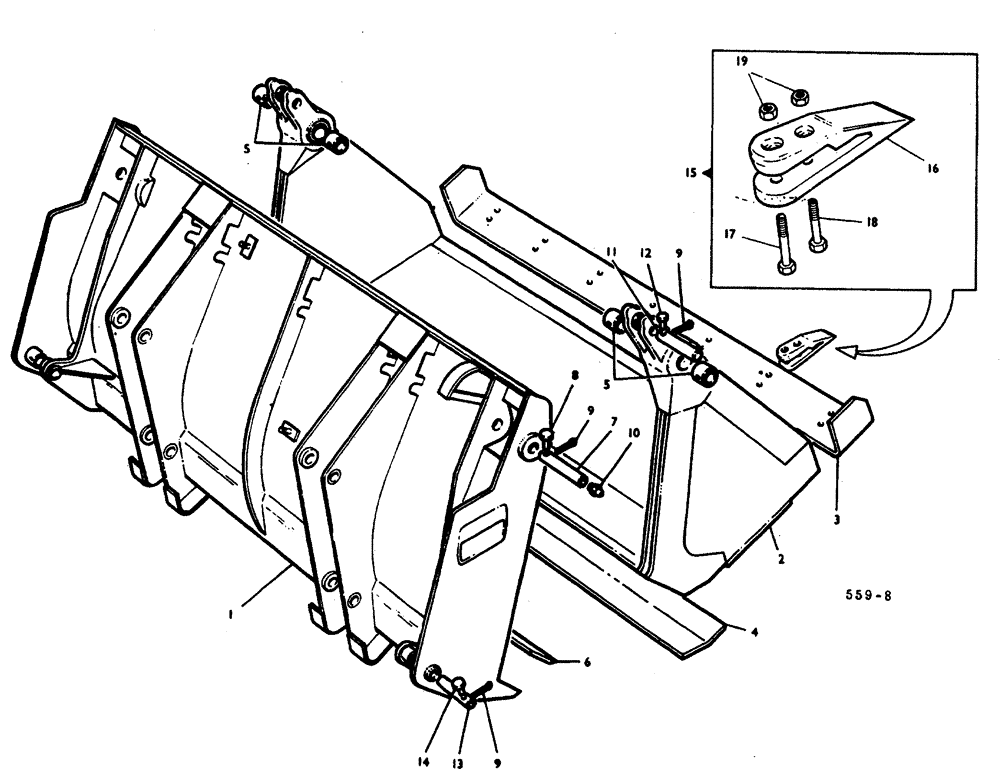

Запчасти Case 3400 (163) - BUCKET 4 IN 1 (82) - FRONT LOADER & BUCKET

1

3113508R91

BLADE ASSEMBLY consists of Ref NO. 6

1шт.

2

3113498R91

CLAM ASSEMBLY consists of Ref NOS. 3 and 4

1шт.

3

3113510R1

EDGE

clam cutting

1шт.

4

3113511R1

PLATE

compaction

1шт.

5

3074217R1

BUSHING

4шт.

6

3113512R1

BLADE

EDGE, cutting

1шт.

7

3109393R1

PIVOT PIN

, Serial Range: clam-blade

2шт.

8

3109392R1

PIN, clevis

2шт.

9

103385

COTTER PIN,1/8" x 1"

6шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NPT

2шт.

11

3109391R1

PIN

pivot, hinge to cylinder rod

2шт.

12

3109390R1

PIN, clevis

2шт.

13

3109396R1

SPARE PART

PIN, pivot, Serial Range: cylinder-blade

2шт.

14

3109136R1

PIN

clevis

2шт.

15

TOOTH, group w/bolts

1шт.

See bucket teeth attach

1шт.

16

TOOTH

1шт.

See bucket teeth attach

1шт.

17

BOLT, hex HD 1/2 UNF x 2

7шт.

See bucket teeth attach

1шт.

18

BOLT, hex HD 1/2 UNF x 2-1/4

7шт.

See bucket teeth attach

1шт.

19

NUT, hex 1/2 UNF

14шт.

See bucket teeth attach

1шт.

1092898R1

DECAL

PRODUCT GRAPHICS, clam opening

1шт.

1092899R1

DECAL

PRODUCT GRAPHICS, tilt indicator

1шт.
