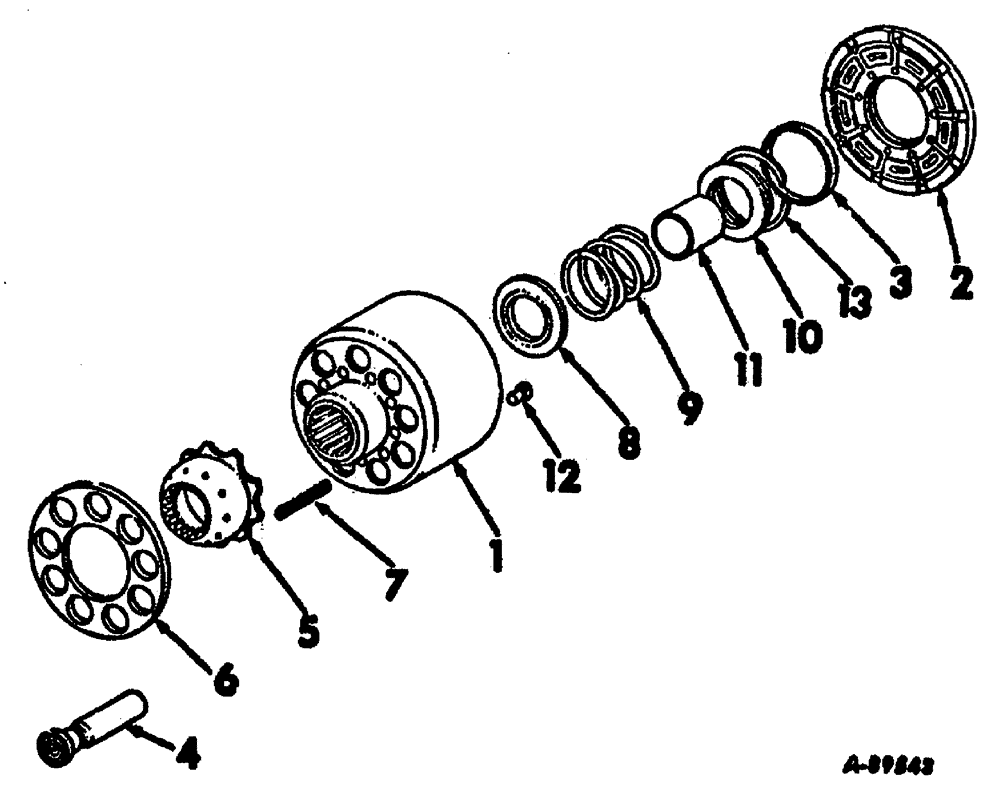

Запчасти Case 3400 (017) - MOTOR CYLINDER BLOCK (10) - ENGINE

1

405134R1

SPARE PART ASSEMBLY, cylinder

1шт.

2

405141R1

PLATE

bearing

1шт.

3

405140R1

RING

PILOT, bearing plate

1шт.

4

538703R1

PISTON

ASSEMBLY

9шт.

5

405132R1

GUIDE

RETAINER slipper

1шт.

6

405133R1

RETAINER

slipper

1шт.

7

405135R1

SPRING

RETAINER

9шт.

8

405136R1

SEAT

spring

1шт.

9

532303R1

SPRING

spring, cylinder block

1шт.

10

405139R1

RETAINER

spring

1шт.

11

405137R1

GUIDE

spring

1шт.

12

527636R1

PIN

piston cylinder

1шт.

13

558383R1

SNAP RING,#250, 2.606, Int, Spiral

SPIROLOX internal retaining

1шт.
