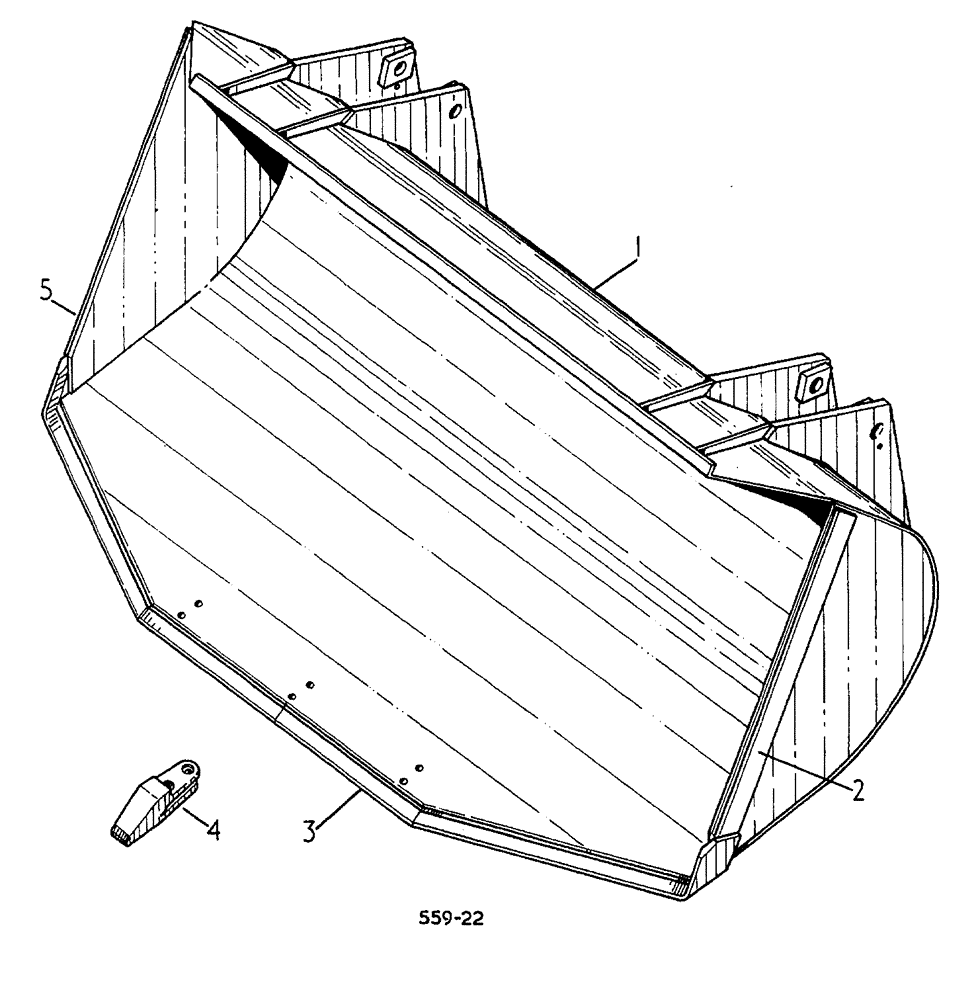

Запчасти Case 3400 (156) - BUCKET AND TEETH ATTACHMENTS (82) - FRONT LOADER & BUCKET

3113263R91

ATTACHMENT, bucket teeth for use w/61 IN rocket bucket consists of Ref. NO. 4

1шт.

1

3047051R91

BUCKET ASSEMBLY, 61 IN 3/4 CU YD

1шт.

2

3047058R1

BLADE

PLATE, cutting edge side L. H.

1шт.

3

3073135R1

PLATE

cutting edge centre

1шт.

4

3047048R1

TOOTH

bucket

3шт.

19023R1

CARRIAGE BOLT,#3, 3/8" - 16 x 2", Gr 2

3/8 x 2 NO. 3 PLY

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

S.M.

6шт.

120394

WASHER,3/8", SAE

13/32 x 13/16 x .065

6шт.

5

3047059R1

PLATE

cutting edge side R. H.

1шт.
