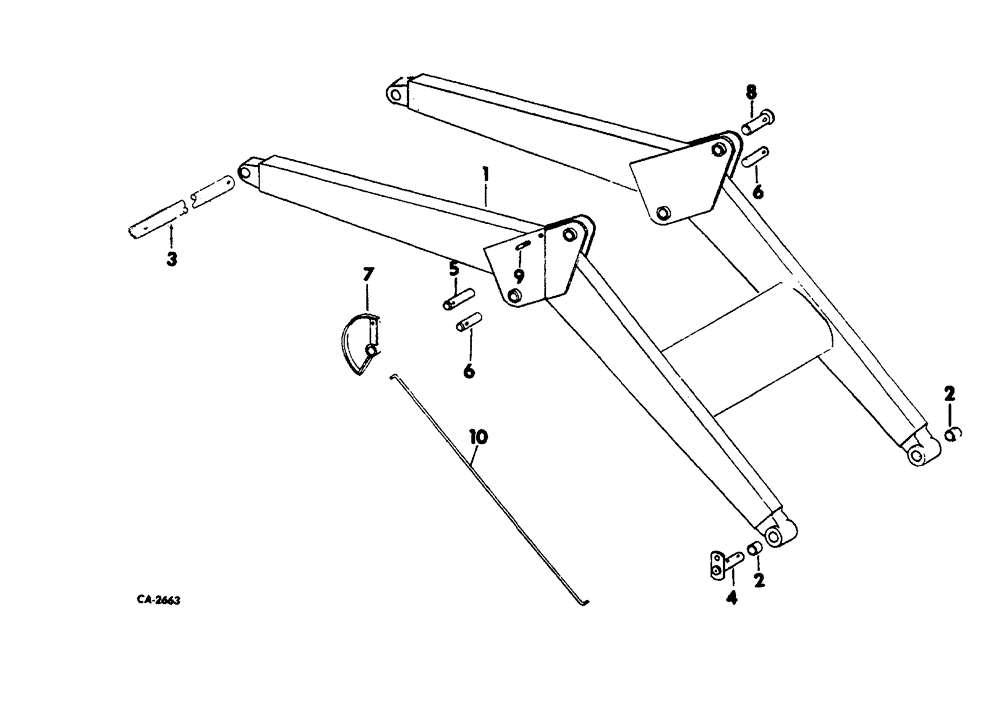

Запчасти Case 3400 (155) - LOADER BOOM AND LINKAGE (82) - FRONT LOADER & BUCKET

1

535289R91

SPARE PART ASSEMBLY, loader

1шт.

2

468613R1

SHAFT

BUSHING

4шт.

3

535085R1

SHAFT HOUSING

boom

1шт.

20281R1

BOLT,Hex, 1/2"-13 x 3 3/4", G2

BOLT, hex HD, 1/2-13 x 3-3/4 ZND

2шт.

536051R1

LOCK NUT

nylon lock, 1/2-13

2шт.

4

538002R2

PIN

ASSEMBLY, linkage

4шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

SCREW, hex HD MACH, 1/2-13 x 1-1/4

4шт.

120384

WASHER,1/2"

4шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

4шт.

546587R1

SPACER

4шт.

5

535730R1

SPARE PART bucket cylinder attaching

1шт.

6

390106R1

SHAFT

lift cylinder attaching

2шт.

522856R1

PIN,12.7mm OD x 63.5mm L

1/2 x 2-1/2 STD HD

4шт.

16925R1

PIN

3/16 x 3/4 COT

4шт.

7

535374R1

SPARE PART ASSEMBLY, quadrant

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

8

535381R1

SPARE PART ASSEMBLY

1шт.

9

405533R1

SPARE PART HN. bucket indicator

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

10

535383R1

SPARE PART LINK bucket

1шт.

648002

KNIFE

1/8" x 3/4"

3шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

10шт.

539169R1

SPARE PART

CHANNEL ASSEMBLY, safety

2шт.

275241R1

SPACER

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

4шт.
