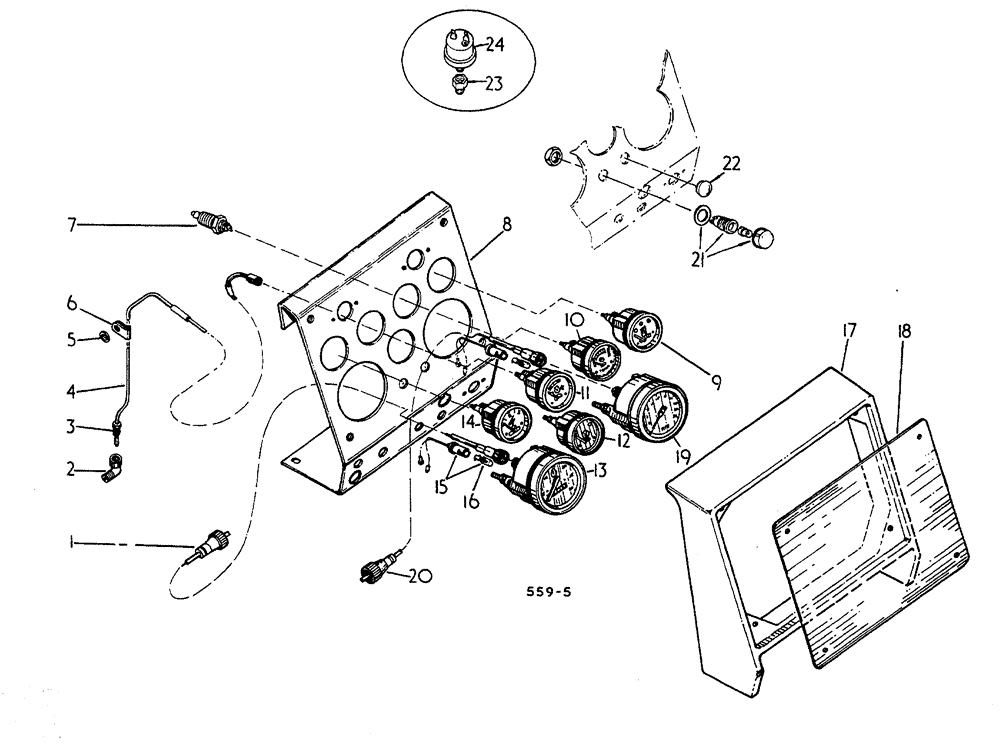

Запчасти Case 3400 (095) - INSTRUMENT PANEL & GAUGES (55) - ELECTRICAL SYSTEMS

1

529234R1

CABLE,1480.32mm L

ASSEMBLY, cable, tachometer flex drive

1шт.

2

21267R1

ELBOW

hi duty tube fitting male pipe, 3/8-24

1шт.

3

25038HA

TUBE NUT,3/8"-24

hi duty tube fitting, 3/8-24

1шт.

4

537638R1

PIPE

GAUGE oil pressure

1шт.

5

533276R1

SPARE PART

1шт.

6

533275R1

CLAMP

PIPE oil pressure

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

7

3073787R91

TRANSMITTER

ASSEMBLY, temperature

1шт.

8

535246R1

SPARE PART ASSEMBLY, instrument

1шт.

9

537635R1

ELECTRICAL GAUGE

ASSEMBLY, fuel

1шт.

10

537636R1

ELECTRICAL GAUGE

ASSEMBLY, water temperature

1шт.

11

537637R1

SPARE PART

GAUGE ASSEMBLY, oil pressure indicator

1шт.

3115042R1

WASHER

oil gauge sealing

1шт.

12

537633R1

ELECTRICAL GAUGE

ASSEMBLY, air cleaner indicator

1шт.

13

528364R92

TACHOMETER

ASSEMBLY

1шт.

14

537634R1

GAUGE ASSY.

charge indicator

1шт.

15

529231R91

LAMP BASE

LIGHT ASSEMBLY

2шт.

16

529233R1

LAMP

12V 13W capless

2шт.

17

535248R1

SPARE PART

HOUSING, instrument panel

1шт.

18

538163R1

COVER

instrument

1шт.

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16

4шт.

160741

SCREW, 5/16-18 x 2 C Z PAN HD MACH

4шт.

280136

NUT,3/8"-16, G8

1шт.

535183R1

LOCK SCREW

WASHER hex HD, 5/16-18 x 3/4

2шт.

19

529765R91

SPARE PART

1шт.

19

529766R91

NO LONGER SERVICED

SPEEDOMETER 20 MPH

1шт.

for tractors w/14-9-28/13-28 or 16-9-28/14-28 rear tyres

1шт.

20

537492R91

CABLE

ASSEMBLY, flexible drive

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Speedometer

1шт.

21

3072048R91

WARNING LIGHT

LIGHT, warning

1шт.

22

142020

PLUG, 3/4 button 3400/571 up

1шт.

22

392441R91

LIGHT

LIGHT ASSEMBLY, trans oil warning

1шт.

9412348

BULB,C2B, #257, 14V

LAMP, NO. 257 14 volt up to 3400/570

1шт.

22

894313H1

LAMP

LIGHT, trans oil temp warning

1шт.

894350H1

BULB

LAMP, 12V 2.2W

1шт.

3074499R1

CAP, w/lens hydrostatic drive tractors

1шт.

23

389908R91

ADAPTER

1шт.

24

531609R1

IGNITION SWITCH

electric air cleaner VAC

1шт.

222-500

TUBE NUT,5/16" - 24 NPT

NUT, hi duty tube oil indicator dash and crank case application, 5/16-24

2шт.

432281

HOLE PLUG BUTTON,29/32"

button cigarette lighter hole

1шт.

528240R1

NO LONGER SERVICED

PLUG, button cigarette lighter hole

1шт.

170023

KEY

PLUG, button cigarette lighter hole

1шт.

optional

1шт.
