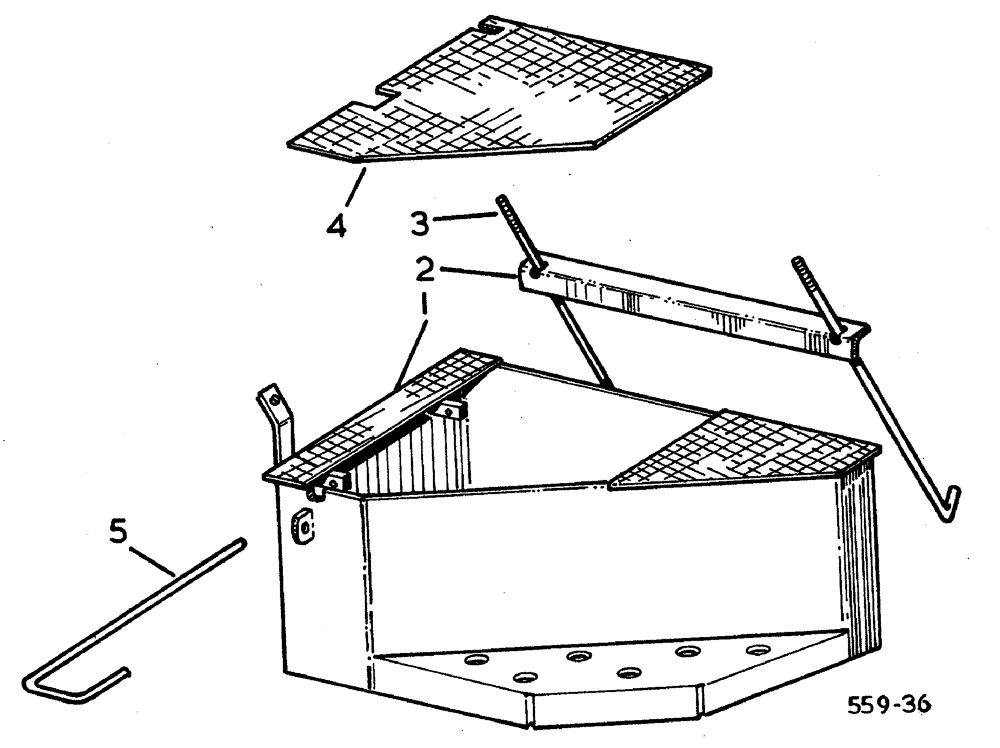

Запчасти Case 3400 (057) - BATTERY TRAY AND TOOL BOX (55) - ELECTRICAL SYSTEMS

1

535350R2

SPARE PART ASSEMBLY, battery and tool

1шт.

2

527604R1

ANGLE

battery hold down

1шт.

3

529968R1

ROD

ROD, battery hold down

2шт.

120393

BEARING WASHER,5/16", SAE

11/32 x 11/16 x .051 G Z

2шт.

129-419

WING NUT,5/16"-18

5/16-18 C 2 wing

2шт.

4

535365R2

SPARE PART ASSEMBLY, tool box

1шт.

5

537543R2

SPARE PART ASSEMBLY, tool box

1шт.

103384

COTTER PIN,1/8" x 3/4"

Lg ext prong

2шт.

21872R1

WASHER

13/32 x 5/8 x .060 C Z

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

6шт.

103321

LOCK WASHER,3/8"

6шт.
