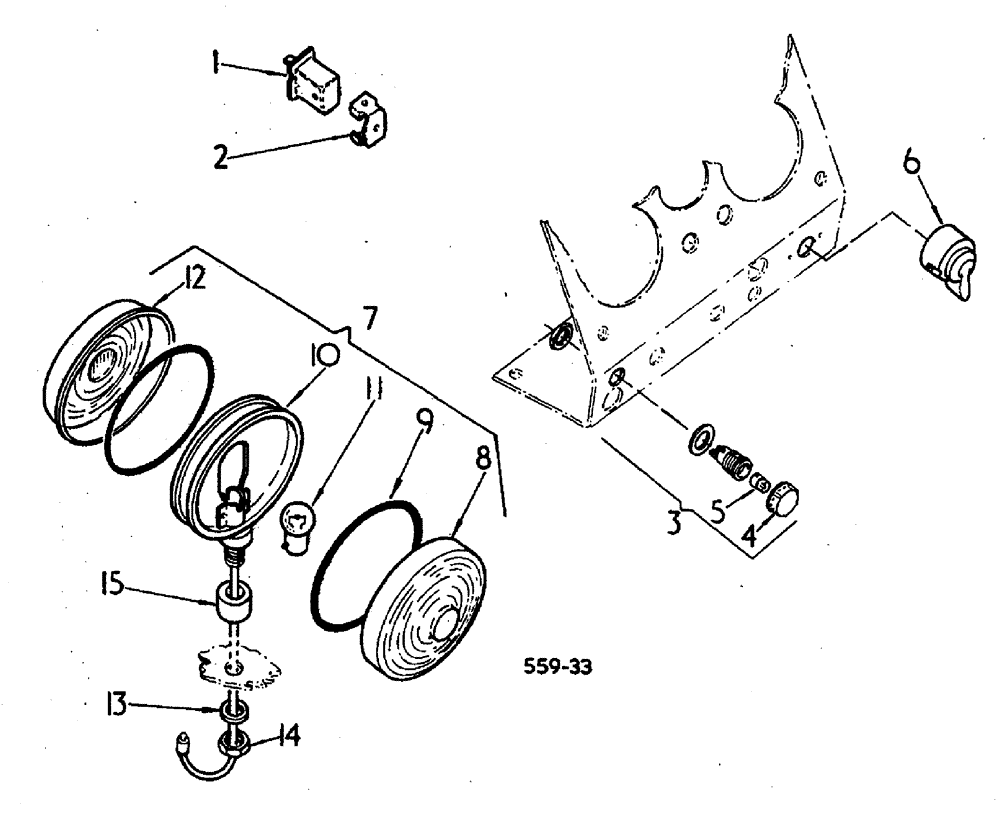

Запчасти Case 3400 (055) - FLASHER AND WARNING LIGHT (55) - ELECTRICAL SYSTEMS

1

528284R1

RELAY

FLASHER, unit

1шт.

2

528285R1

CLIP

SPARE PART CUP, flasher unit

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

10-24 x 3/4 PAN HD

1шт.

120217

LOCK WASHER,#10

1шт.

3

3072048R91

WARNING LIGHT

LIGHT, warning consists of Ref. warning consists of Ref NOS 4 and 5 •

1шт.

4

3074995R91

CAP

screwed w/lens, yellow

1шт.

5

894350H1

BULB

LAMP, 12V2.2W MCC

1шт.

6

3072070R91

FLASHER SWITCH

flasher

1шт.

132711

SCREW,Sl Rnd Hd, #6 - 32 x 3/4"

6-32 x 3/4 SLT RD HD MACH

2шт.

134532

DISC

6-32 C Z SQ MACH

2шт.

106495

2шт.

7

531627R91

INDICATOR LIGHT

flasher consists of Ref Nos, Serial Range: 8-14

2шт.

8

3112682R1

LENS

amber front

2шт.

9

899282R1

O-RING

rubber sealing

4шт.

10

BODY ASSEMBLY not serviceable

2шт.

11

3025210R91

BULB

LAMP, 12V/21W SCC

2шт.

12

3112683R1

LENS

amber rear

2шт.

13

493-21046

LOCK WASHER,Int Tooth, 7/16"

lock, 7/16

2шт.

14

425-157

JAM NUT,Jam, 7/16"-20, G5

hex jam, 1/16 UNF

2шт.

15

3073103R1

SPACER

2шт.
