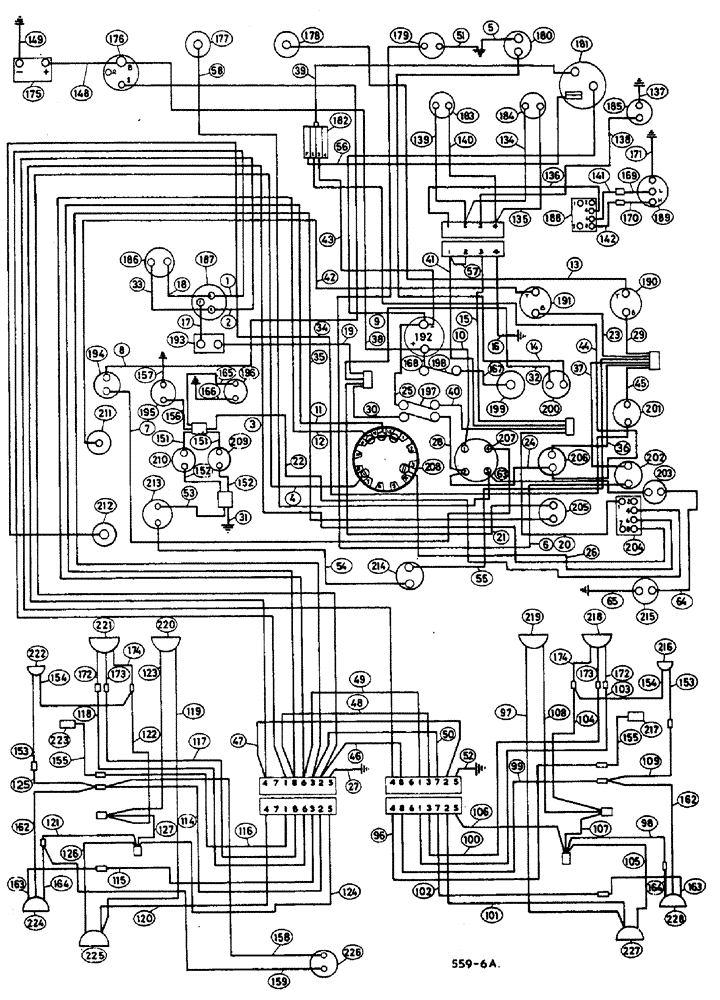

Запчасти Case 3400 (047) - STARTING AND LIGHTING (55) - ELECTRICAL SYSTEMS

1

CABLE, flasher switch term "L" to sway conn L. H. term 1, green/red

1шт.

2

CABLE, flasher switch term "R" to sway conn R. H. term 4, green/white

1шт.

3

CABLE, lights change over switch term 8 to 8 way conn L. H. term 4, red/white

1шт.

4

CABLE, light switch term 8 to 8 way conn L. H. term 2, red

1шт.

5

CABLE, horn to earth, black

1шт.

6

CABLE, air cleaner gauge to air cleaner trans, purple/blue

1шт.

7

CABLE, safety start switch to key switch term 4, red/black

1шт.

8

CABLE, safety start switch to starter motor term, white/red

1шт.

9

CABLE, ammeter "NEC" term to alternator "BAT" term, brown/white

1шт.

10

CABLE, ammeter "POS" term to key switch term 1 brown/blue

1шт.

11

CABLE, light switch term 13 to 8 way conn L. H. term 8, blue/yellow

1шт.

12

CABLE, light switch term 12 ro 8 way conn L. H. term 6, blue/red

1шт.

13

CABLE, heat indicator term ""T"" to temperature transmitter, green/blue

1шт.

14

CABLE, horn push to horn, 1 purple/black

1шт.

15

CABLE, 4 way conn term 3 to splice ferrule NO. 3, purple

1шт.

16

CABLE, 4 way conn term 4 to earth, black

1шт.

17

CABLE, flasher unit to flasher switch term ""F"" , light, green/brown

1шт.

18

CABLE, flasher warning light to flasher switch term ""L"", green/red

1шт.

19

CABLE, flasher unit to splice ferrule NO. 1. , green

1шт.

20

CABLE, lights change over switch term 1. splice ferrule NO. 3, purple

1шт.

21

CABLE, brake light switch to splice ferrule NO . 1 green

1шт.

22

CABLE, lights change over switch term 4. to panel light conn, red/blue

1шт.

23

CABLE, fuel gauge term ""B"" to splice ferrule NO. 2., green

1шт.

24

CABLE, key switch term 2. to AUX fuse ""IN"" term, white

1шт.

25

CABLE, ammeter NEG term to in line fuse brown/blue

1шт.

26

CABLE, light switch term 3. thoughts change over switch term 6, purple/yellow

1шт.

27

CABLE, 8 way conn L. H. term 5 to earth, black

1шт.

28

CABLE, key switch term, 2 to in line fuse, white

1шт.

29

CABLE, heat indicator term "B" to splice ferrule NO. 2. green

1шт.

30

CABLE, in let fuse to splice ferrule NO. 1. green

1шт.

31

CABLE, panel light earth conn to panel light earth, black

1шт.

32

CABLE, horn push to splice ferrule NO. 1. purple

1шт.

33

CABLE, flasher switch term "R" to flasher warning light green/white

1шт.

34

CABLE, trans oil pressure warning light to trans oil pressure switch, black/red

1шт.

35

CABLE, brake light switch to 8 way conn, L. H. term 3 , green/purple

1шт.

36

CABLE, splice ferrule NO. 2. to AUX fuse •out "" term, green

1шт.

37

CABLE, splice ferrule NO. 2. to air cleaner gauge, green

1шт.

38

CABLE, ammeter "POS" term to starter motor term "B" brown

1шт.

39

CABLE, alternator earth to regulator earth, black

1шт.

40

CABLE, in line fuse to splice ferrule NO. 3, purple

1шт.

41

CABLE, 4 way conn term 1 to splice ferrule NO. 3, green

1шт.

42

CABLE, fuel trans. to fuel gauge term "T" green/black

1шт.

43

CABLE, regulator term 3 to ammeter "NEG" term, brown/purple

1шт.

44

CABLE, regulator term 2 to AUX fuse white

1шт.

45

CABLE, splice ferrule NO. 2 to trans oil pressure warning light green

1шт.

46

CABLE, 8 way conn L. H. term 2 to 8 way conn, R. H. term 8 red

1шт.

47

CABLE, 8 way conn L. H. term 4 to 8 way conn, R. H. term 2 red/white

1шт.

48

CABLE, 8 way conn L. H. term 8 to 8 way conn, R. H. term 3 blue/yellow

1шт.

49

CABLE, 8 way conn L. H. term 6 to 8 way conn, R. H. term 1 blue/red

1шт.

50

CABLE, 8 way conn L. H. term 3 to 8 way conn, R. H. term 7 green/purple

1шт.

51

CABLE, air cleaner trans to earth, black

1шт.

52

CABLE, 8 way R. H. term 5 to earth, black

1шт.

53

CABLE, park brake warning light to panel light earth conn, black

1шт.

54

CABLE, park brake switch to park brake warning light purple/red

1шт.

55

CABLE, splice ferrule NO. 2. to park brake switch, green

1шт.

56

CABLE, alternator field term to regulator field term, brown/green

1шт.

57

CABLE, 4 way conn term, 1. to 4 way conn, term 2. green

1шт.

58

CABLE, key switch term, 3. to thermostart, brown/red

1шт.

59

Ref. NOS. 59 to 62 not used

1шт.

60

not used

1шт.

61

not used

1шт.

62

not used cable ASSEMBLY, cables in ether start, consists of Ref. NOS 63, 64 and 65

1шт.

63

CABLE, key switch term 3. to ether start switch, green

1шт.

64

CABLE, ether start switch to ether injector, blue/purple

1шт.

65

CABLE, ether injector to earth, black

1шт.

66

Ref NOS 66 to 95 not used

1шт.

67

not used

1шт.

68

not used

1шт.

69

not used

1шт.

70

not used

1шт.

71

not used

1шт.

72

not used

1шт.

73

not used

1шт.

74

not used

1шт.

75

not used

1шт.

76

not used

1шт.

77

not used

1шт.

78

not used

1шт.

95

not used

1шт.

537502R1

HARNESS

ASSEMBLY, R. H. fender consists of Ref. NOS, Serial Range: 96-109

1шт.

96

CABLE, 8 way conn R. H. term 4 to R. H. flasher conn green/white

1шт.

97

CABLE, R. H. rear worklight to R. H. front work lamp red/white

1шт.

98

CABLE, splice ferrule NO. 4 to stop and tail light conn black

1шт.

99

CABLE, 8 way conn R. H. NO. 8 to R. H. fender conn red

1шт.

100

CABLE, 8 way conn R. H. NO. 3 to R. H. headlight conn blue/yellow

1шт.

101

CABLE, 8 way conn R. H. NO. 2 to R. H. rear worklight red/white

1шт.

102

CABLE, 8 way conn R. H. NO. 7 to R. H. fender conn green/purple

1шт.

103

CABLE, 8 way conn R. H. NO. 1 to R. H. headlight conn blue/red

1шт.

104

CABLE, splice ferrule NO. 5 to R. H. headlight conn black

1шт.

105

CABLE, splice ferrule NO. 4 to R. H. rear worklight black

1шт.

106

CABLE, sway conn R. H. term, 5 to splice ferrule NO. 4. black

1шт.

107

CABLE, splice ferrule NO. 4. to splice ferrule NO. 5. black

1шт.

108

CABLE, splice ferrule NO.5. to front work lamp black-

1шт.

109

CABLE, R. H. fender conn to side light conn red

1шт.

110

Ref NOS. 110 to 113 not used

1шт.

111

not used

1шт.

112

not used

1шт.

113

not used

1шт.

537501R1

HARNESS

ASSEMBLY L. H. fender consists of Ref. NOS, Serial Range: 114-127

1шт.

114

CABLE, 8 way conn L. H. term 2 to L. H. fender conn red

1шт.

115

CABLE, 8 way conn L. H term 3 to L. H. fender conn green/purple

1шт.

116

CABLE, 8 way conn L. H. term 1 to L. H. flasher conn green/red

1шт.

117

CABLE, 8 way conn L. H. term 8 to L. H. headlight conn, blue/yellow

1шт.

118

CABLE, 8 way conn L. H. term 6 to L. H. headlight conn blue/red

1шт.

119

CABLE, L. H. rear work light to L. H. front work lamp red/white

1шт.

120

CABLE, 8 way conn L. H. term 4 to L. H. rear worklight red/white

1шт.

121

CABLE, L. H. fender conn to splice ferrule NO. 6. black

1шт.

122

CABLE, L. H. headlight conn to splice ferrule NO. 7. black

1шт.

123

CABLE, L. H. front work light to splice ferrule NO. 7. black

1шт.

124

CABLE, 8 way conn L. H. term 5 to splice ferrule NO. 6 black

1шт.

125

CABLE, L. H. fender conn to L. H. side lamp conn red

1шт.

126

CABLE, L. H. rear work light to splice ferrule NO. 6. black

1шт.

127

CABLE, splice ferrule NO. 6. to splice ferrule NO. 7. black

1шт.

128

Ref. NOS 128 to 133 not used

1шт.

129

not used

1шт.

130

not used

1шт.

131

not used

1шт.

132

not used

1шт.

133

not used

1шт.

CABLES IN cab attachment, consists of Ref. NOS, Serial Range: 134-142

1шт.

134

CABLE, 4 way conn term 2 to rear windscreen wiper green

1шт.

135

CABLE, 4 way term, 4. to rear windscreen wiper black

1шт.

136

CABLE, 4 way conn term 1. to heater switch term, 4. green

1шт.

137

CABLE, interior light to earth, black

1шт.

138

CABLE, interior light to 4 way conn term, 3. purple

1шт.

139

CABLE, front windscreen wiper to 4 way conn term, 2. green

1шт.

140

CABLE, front windscreen wiper to 4 way conn term, 4. black

1шт.

141

CABLE, heater switch term, 6 heater conn. green/yellow

1шт.

142

CABLE, heater switch term, to heater conn. green/brown

1шт.

143

Ref. NOS 143 to 147 not used

1шт.

144

not used

1шт.

145

not used

1шт.

146

not used

1шт.

147

not used

1шт.

148

537503R1

CABLE

SPARE PART starter "B" term to battery POS term black PVC

1шт.

708557R1

GROMMET

1шт.

149

537504R1

CABLE ASSY.

earth to battery NEG term black PVC

1шт.

708557R1

GROMMET

1шт.

150

not used

1шт.

CABLE ASSEMBLY, panel lights, pre wired consists of Ref. NOS 151 and 152

1шт.

151

CABLE, panel light to connector red

1шт.

152

CABLE, panel light to connector black

1шт.

CABLE ASSEMBLY, side light, pre wired, consists of Ref. NOS 153 and 154

1шт.

153

CABLE, side light to connector red

1шт.

154

CABLE, side light to connector black

1шт.

CABLE ASSEMBLY, flasher light, pre wired, consists of Ref. NO 155

1шт.

155

CABLE, flasher light to connector black PVC sheath

1шт.

CABLE ASSEMBLY, speedometer lamp, pre wired, consists of Ref. NOS 156 and 157

1шт.

156

CABLE, speedometer lamp to connector red

1шт.

157

CABLE, speedometer lamp to earth black

1шт.

CABLE ASSEMBLY, power socker, pre wired, consists of Ref. NOS 158 and 159

1шт.

158

CABLE, power socket to tail light feed conn red

1шт.

159

CABLE, power socket to tail light earth conn black

1шт.

160

not used

1шт.

161

not used

1шт.

CABLE ASSEMBLY, stop and tail light, pre wired, consists of Ref NOS 162, 163 and 164

1шт.

162

CABLE, stop and tail light to connector red

1шт.

163

CABLE, stop and tail light to connector green

1шт.

164

CABLE, stop and tail light to connector black

1шт.

CABLE ASSEMBLY, tachometer lamp, pre wired, consists of Ref NOS 165 and 166

1шт.

165

CABLE, tachometer lamp to connector red

1шт.

166

CABLE, tachometer lamp to earth black

1шт.

CABLE ASSEMBLY, cigar light, pre wired, consists of Ref. NOS 167 and 168

1шт.

167

CABLE, cigar light to in line fuse white/green

1шт.

168

CABLE, ammeter "POS" term to in line fuse white/green

1шт.

CABLE ASSEMBLY, heater, pre wired, consists of Ref. NOS 169, 170 and 171

1шт.

169

CABLE, heater "LOW" to connector green

1шт.

170

CABLE, heater "HIGH" to connector brown

1шт.

171

CABLE, heater to earth white

1шт.

3072949R1

HARNESS

CABLE ASSEMBLY, headlight, consists of Ref. NOS 172, 173 and 174

1шт.

172

CABLE, headlamp main to connector blue/red

1шт.

173

CABLE, headlight dip to connector blue/yellow

1шт.

174

CABLE, headlight earth to connector black

1шт.

175

BATTERY

1шт.

176

MOTOR, starter, see detail list starter, see detail list

1шт.

177

THERMOSTART, see detail list group 12

1шт.

178

TRANSMITTER, temperature see instrument panel and gauges

1шт.

179

TRANSMITTER, air cleaner see instrument panel and gauges

1шт.

180

HORN see detail list

1шт.

181

ALTERNATOR, see alternator generator and conns

1шт.

182

REGULATOR, see alternator generator and conns

1шт.

183

WIPER, windscreen front

1шт.

184

WIPER, windscreen rear

1шт.

185

LIGHT, interior

1шт.

186

LIGHT, flasher warning see flasher and warning light

1шт.

187

SWITCH, flasher see flasher and warning light

1шт.

188

SWITCH, heater

1шт.

189

HEATER

1шт.

190

INDICATOR, heat

1шт.

191

GAUGE, fuel see instrument panel and gauges

1шт.

192

AMMETER see instrument panel and gauges

1шт.

193

UNIT, flasher see flasher and warning light

1шт.

194

SWITCH, safety start see neutral safety switch

1шт.

195

LAMP, speedometer see instrument panel and gauges

1шт.

196

LAMP, tachometer see instrument panel and gauges

1шт.

197

3113048R1

FUSE

in line 50 AMP

2шт.

198

FUSE, cigar lighter

1шт.

199

LIGHTER, cigar see switches and panel light

1шт.

200

BUTTON, horn see switches and panel light

1шт.

201

LAMP, trans oil press warning see instrument panel and gauges

1шт.

202

GAUGE, air cleaner see instrument panel and gauges

1шт.

203

SWITCH, ether start

1шт.

204

3110751R91

TOGGLE SWITCH

lights change over

1шт.

205

SWITCH, brake light see detail list

1шт.

206

FUSE, auxiliary see switches & panel light

1шт.

207

SWITCH, key see switches & panel light

1шт.

208

SWITCH, light see switches and panel light

1шт.

209

LAMP, panel NO. 2 see switches and panel light

1шт.

210

LAMP, panel NO. 1. see switches and panel light

1шт.

211

TRANSMITTER, fuel see instrument panel and gauges

1шт.

212

529796R1

IGNITION SWITCH

trans oil pressure, Serial Range: up-3400/570

1шт.

213

LIGHT, park brake warning see instrument panel and gauges

1шт.

214

SWITCH, park brake see park lock group 4

1шт.

215

INJECTOR

1шт.

216

LIGHT, side R. H. see sidelight

1шт.

217

FLASHER, R. H., see flasher and warning light

1шт.

218

HEADLIGHT, R. H. see headlight

1шт.

219

LIGHT, work R. H., fender or cab, see work light attachment

1шт.

220

LIGHT, work L. H., fender or cab, see work light attachment

1шт.

221

HEADLIGHT, L. H. see headlight

1шт.

222

LIGHT, side L. H., see side light

1шт.

223

flasher L. H. see flasher and warning light

1шт.

224

LIGHT, stop and tail L. H. see tail/stop lamp and reflectors

1шт.

225

LIGHT, work rear L. H., fender or cab, see work light attachment

1шт.

226

SOCKET, power

1шт.

227

LIGHT, work rear R. H., fender or cab, see work light attachment

1шт.

228

LIGHT, stop and tail R. H. see tail/stoplight and reflectors

1шт.

3113000R1

CABLE

strapping

5шт.

539015R1

CLIP

cable edge

2шт.

3113490R1

CLIP

cable edge

4шт.

3113491R1

CLIP

cable edge

3шт.

528309R1

NO LONGER SERVICED

CABLE STRAP/Retired CLIP, cable edge

4шт.

708114R1

SPARE PART cable

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

103320

LOCK WASHER,5/16"

3шт.

3067821R1

SPARE PART cable

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex HD CAP, 1/4-20 x 3/4

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

400505R1

CLAMP

CLIP, cable

1шт.

362123R1

CLIP

cable

1шт.

117966

GROMMET,5/8" ID x 1 11/64" x .188"

fender harness

2шт.

3066369R1

STUD

nylon

5шт.

3116218R1

SLEEVE

insulating alternator breakout on main harness

1шт.

3070900R1

CLIP, cable mounted on crankcase front plate

1шт.

3113977R1

LEAD, flying

1шт.

708115R1

PLATE ASSY.

clip, cable light, trans oil temp warning, hydrostatic drive tractors

4шт.

65425C1

SWITCH

TRACTORS TRANS. oil temperature hydrostatic drive

1шт.

537143R1

TERMINAL CONNECTOR,Male

STATIONARY Male

1шт.

120217

LOCK WASHER,#10

1шт.

120614

NUT,Hex, #10 - 32

1шт.

3113975R1

LEAD, flying, red/black hydrostatic drive tractors, neutral start switch

1шт.

3113976R1

ELECTRICAL WIRE

WIRE LEAD, flying, white/red hydrostatic drive tractors, neutral start switch

1шт.

3110217R1

EDGE, finisher used on front floor plate

1шт.
