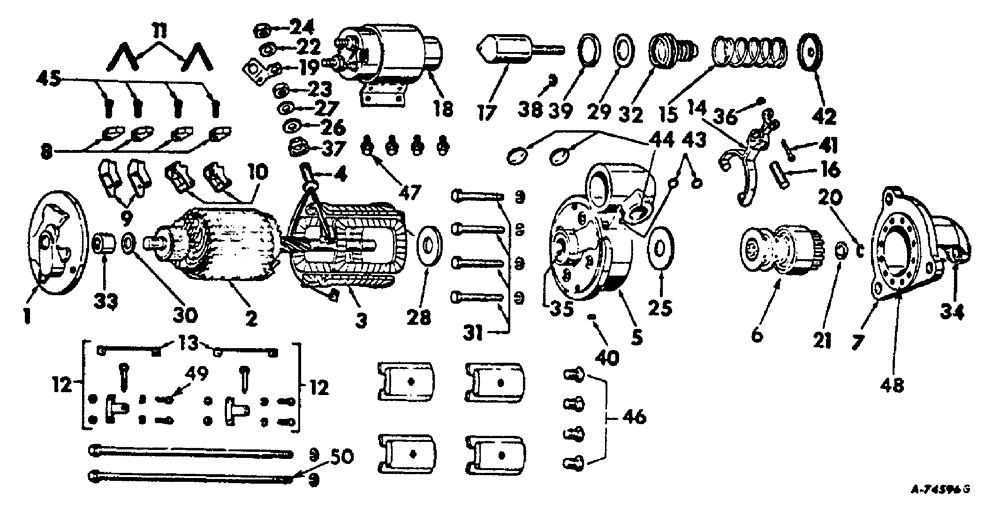

Запчасти Case 3400 (046) - CRANKING MOTOR - DIESEL ENGINE TRACTORS - HYDROSTATIC DRIVE TRACTORS (55) - ELECTRICAL SYSTEMS

120614

NUT,Hex, #10 - 32

1шт.

120217

LOCK WASHER,#10

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

3шт.

537143R1

TERMINAL CONNECTOR,Male

Male

1шт.

1

1945617

HOLDER

FRAME, commutator end

1шт.

1916439

WICK

commutator end

1шт.

810819

PLUG

end

1шт.

2

1967045

ARMATURE

1шт.

3

1946386

COIL ASSY.

field coils

4шт.

1914873

INSULATOR

field coil

2шт.

4

1933879

TERMINAL CONNECTOR

TERMINAL

1шт.

5

1942241

HOUSING

lever composed of 1 bushing 19339992 plug 94113751 plug 94195721 wick 1947350

1шт.

6

1941157

MOTOR HOUSING

ASSEMBLY, drive

1шт.

7

1947803

HOUSING

drive

1шт.

1916439

WICK

drive end

1шт.

8

1906987

BRUSH

4шт.

9

1940477

HOLDER

brush ground

2шт.

10

1950546

HOLDER

brush insulated

2шт.

11

1945620

SPRING

brush

2шт.

12

1945923

PACKAGE

brush support

2шт.

13

1930694

CABLE

LEAD, ground

1шт.

14

1942245

LEVER

shift

1шт.

15

1948521

SPRING

lever

1шт.

16

not used in this application

1шт.

17

1942250

PLUNGER

1шт.

18

1115510

SOLENOID SWITCH

ASSEMBLY

1шт.

18

1115510GV

SOLENOID

ASSEMBLY

1шт.

1917084

SCREW

switch

4шт.

19

1946394

CONNECTOR, ELEC

CONNECTOR switch

1шт.

20

1928022

SNAP RING

pinion stop retainer

1шт.

21

1928021

COLLAR

pinion stop retainer

1шт.

22

not used in this application

1шт.

23

805258

NUT

NUT, terminal stud 5/32 IN thick

1шт.

24

not used in this application

1шт.

25

R15043

WASHER

brake

1шт.

26

1950029

WASHER

insulting terminal stud

1шт.

27

9421425

WASHER

terminal stud lock

1шт.

28

1946395

WASHER

space

1шт.

29

1942259

WASHER

retainer spring

1шт.

30

1914842

WASHER

commutator end space

1шт.

31

22077

BOLT, drive housing attaching

4шт.

32

1949618

BOOT

plunger

1шт.

33

1872678

BUSHING

commutator end

1шт.

34

1955994

BUSHING

drive end

1шт.

35

1933999

BUSHING

lever housing

1шт.

36

1938376

RING, SNAP

RING SNAP lever attaching pin

1шт.

37

1931783

INSULATOR

BUSHING, terminal stud

1шт.

38

9415235

RING, SNAP

RING SNAP spring retainer

1шт.

39

1942256

RETAINER

spring, 1-13/64 IN hole

1шт.

40

1947350

WICK

lever housing

1шт.

41

1942253

PIN

lever attaching

1шт.

42

1942282

PIN

spring, 13/32 IN hole

1шт.

43

9419572

PLUG

5/8 diameter lever housing

2шт.

44

9411375

PLUG

PLUG, diameter lever housing, 1-3/16

2шт.

45

not used in this application

1шт.

46

1968396

SCREW

pole shoe

8шт.

47

not used in this application

1шт.

48

not used in this application

1шт.

49

not used in this application

1шт.

50

1883865

BOLT

commutator end thru

2шт.
