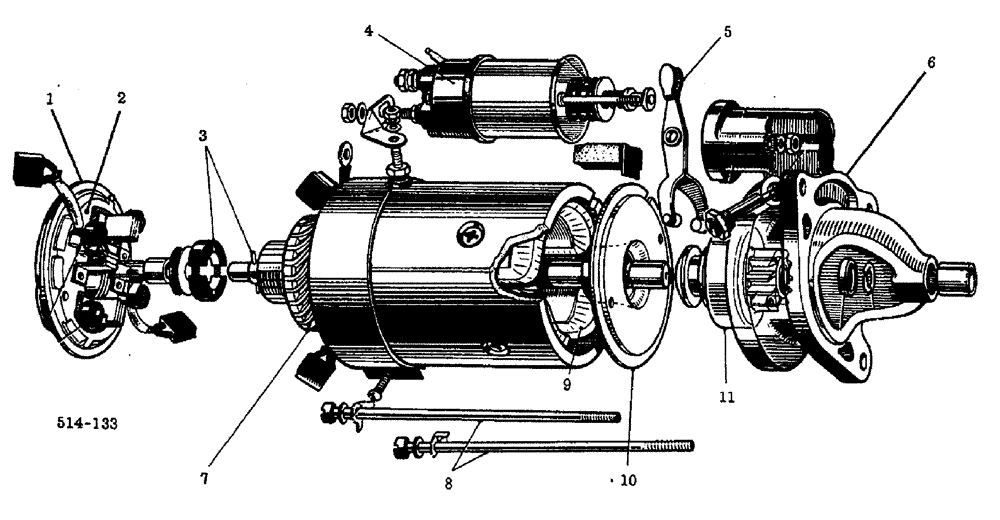

Запчасти Case 3400 (045) - STARTER MOTOR - LUCAS - SYNCHROMESH DRIVE TRACTORS (55) - ELECTRICAL SYSTEMS

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

110730

LOCK WASHER

WASHER light lock, 3/8

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

3шт.

120614

NUT,Hex, #10 - 32

1шт.

120217

LOCK WASHER,#10

1шт.

1

3113025R91

KIT

C. E. BRACKET ASSEMBLY

1шт.

2

3113026R91

PLATE ASSY.

brushing mounting

1шт.

3113037R91

BRUSH SET

KIT brushes

1шт.

3043618R91

VALVE SPRING

KIT brush springs

1шт.

3

3113030R91

KIT

brakes

1шт.

4

3113035R91

COVER

ASSEMBLY, solenoid end

1шт.

5

3113032R91

LINK

LINK ASSEMBLY, solenoid

1шт.

6

3113039R91

BRACKET

BRACKET ASSEMBLY, DE

1шт.

7

3113038R91

ARMATURE

ASSEMBLY

1шт.

8

3113036R91

BOLT

BOLT ASSEMBLY, through

1шт.

9

3113027R91

KIT

KIT field coils

1шт.

10

3113028R91

BRACKET

ASSEMBLY, intermediate

1шт.

11

3113033R91

DRIVE

ASSEMBLY

1шт.

3113029R91

BUSHING

BUSHES

1шт.

3113031R91

KIT

SEALING

1шт.

3206529R91

KIT

SUNDRY PARTS

1шт.

3113034R91

SWITCH

ASSEMBLY, solenoid

1шт.
