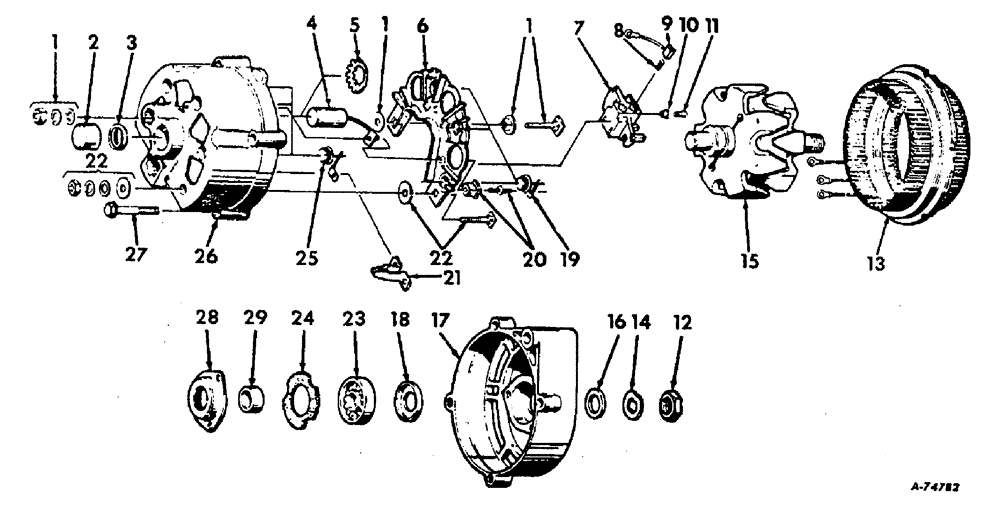

Запчасти Case 3400 (044) - ALTERNATOR GENERATOR (55) - ELECTRICAL SYSTEMS

1

1959833

TERMINAL CONNECTOR

w/nuts and washers, ground

1шт.

2

968838R91

BEARING

slip ring end

1шт.

3

1961323

SEAL

retainer w/felt, slip ring end

1шт.

4

1959455

CAPACITOR

1шт.

5

1960750

VALVE SPRING

condenser retaining

1шт.

6

1959828

PACKAGE

HEAT SINK ASSEMBLY

1шт.

1959523

SPARE PART INSULATOR, heat sink screw

1шт.

7

1964682

HOLDER

ASSEMBLY, brush and spring

1шт.

8

not serviced separately, order holder ASSEMBLY 1964682

1шт.

9

not serviced separately, order holder ASSEMBLY 1964682

1шт.

10

1959389

INSULATOR

screw brush holder

2шт.

11

1957501

SCREW

brush holder attaching

2шт.

12

1911324

NUT

NUT drive end shaft

1шт.

13

1959381

COIL

STATOR ASSEMBLY

1шт.

14

1941978

WASHER

drive end shaft

1шт.

15

1958565

ROTOR

ASSEMBLY

1шт.

16

1959991

COLLAR

drive end outside spacer

1шт.

17

1959917

FUNNEL

drive end

1шт.

18

not used in this application

1шт.

19

not used in this application

1шт.

20

1964353

DIODE

DIODE positive

3шт.

21

1959834

TERMINAL STRIP

PACKAGE diode junction

3шт.

22

1959832

TERMINAL STRIP

PACKAGE battery

1шт.

23

443919R91

BEARING

drive end

1шт.

24

1912008

FELT

GASKET bearing retainer plate

1шт.

25

1964354

DIODE

negative

3шт.

26

1969329

FUNNEL

FRAME ship ring end

1шт.

27

1956975

BOLT

BOLT thru

4шт.

28

1955494

PLATE

RETAINER ASSEMBLY, drive end bearing

1шт.

29

1963139

COLLAR CLAMP

drive

1шт.
