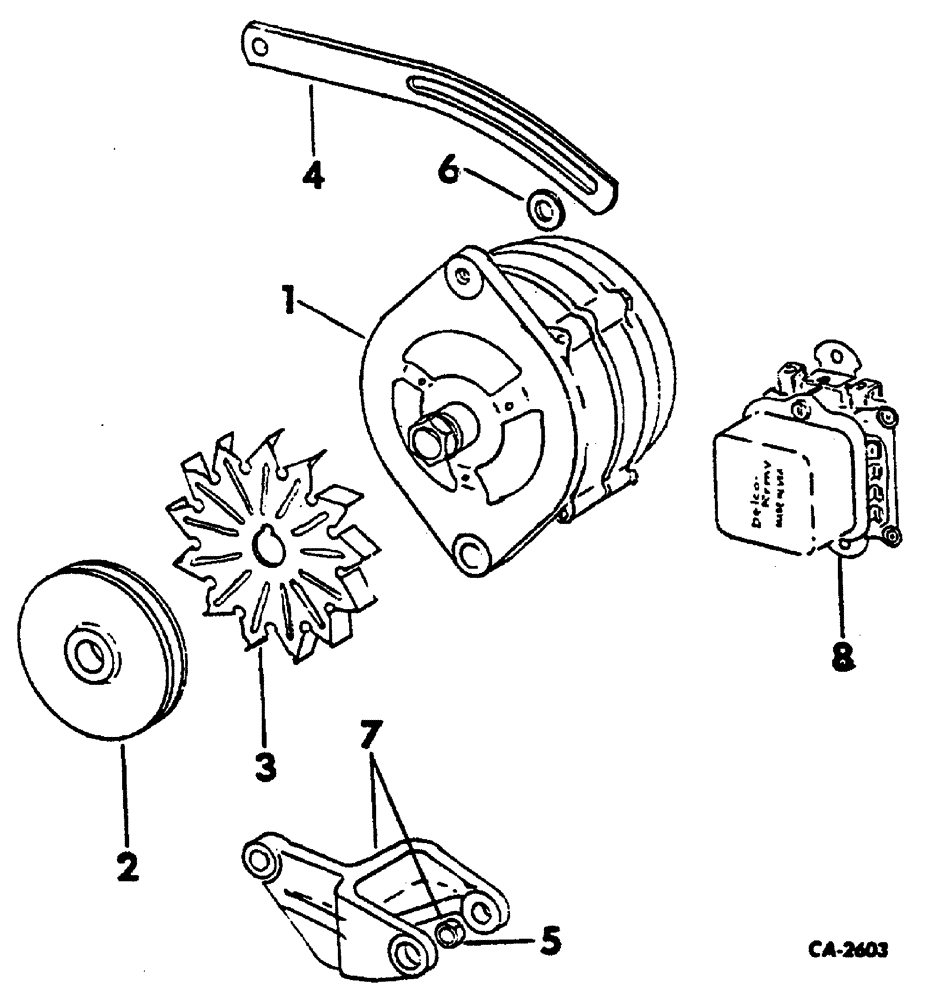

Запчасти Case 3400 (043) - ALTERNATOR, GENERATOR AND CONNECTIONS - DIESEL ENGINE TRACTORS (55) - ELECTRICAL SYSTEMS

1

1100805

GENERATOR

alternator, delco remy for components, see list of parts under details of alternator GE

1шт.

1

103801A1R

REMAN-ALTERNATOR

Reman for New PN 1100805

1шт.

1

103801A1C

CORE-ALTERNATOR

Return number

1шт.

225-14112

NUT,#12-24

hex, mach screw, 12-24 C Z

1шт.

120614

NUT,Hex, #10 - 32

1шт.

492-11012

LOCK WASHER,#12

1шт.

120217

LOCK WASHER,#10

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

hex HD CAP, 3/8-16 x 3-1/2

1шт.

9413953

LOCK NUT,3/8"-16, GB

hex, lock, 3/8-16 PHC

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

2

1946716

PULLEY

alternator generator

1шт.

3

221425R1

FAN

alternator generator

1шт.

4

534312R2

BRACE

alternator generator adjusting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

536241R1

BUSHING

BRACKET, alternator generator

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

6

280185R1

SPACER

BRACE, alternator generator

1шт.

1

533789R11

BRACKET

ASSEMBLY, generator alternator

1шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

3116239R1

SPACER

BRACKET, alternator

1шт.

8

1119513

VOLTAGE REGULATOR

regulator, alternator generator

1шт.

103319

LOCK WASHER,1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

534313R1

SHIELD

ASSEMBLY, fan & pulley

1шт.
