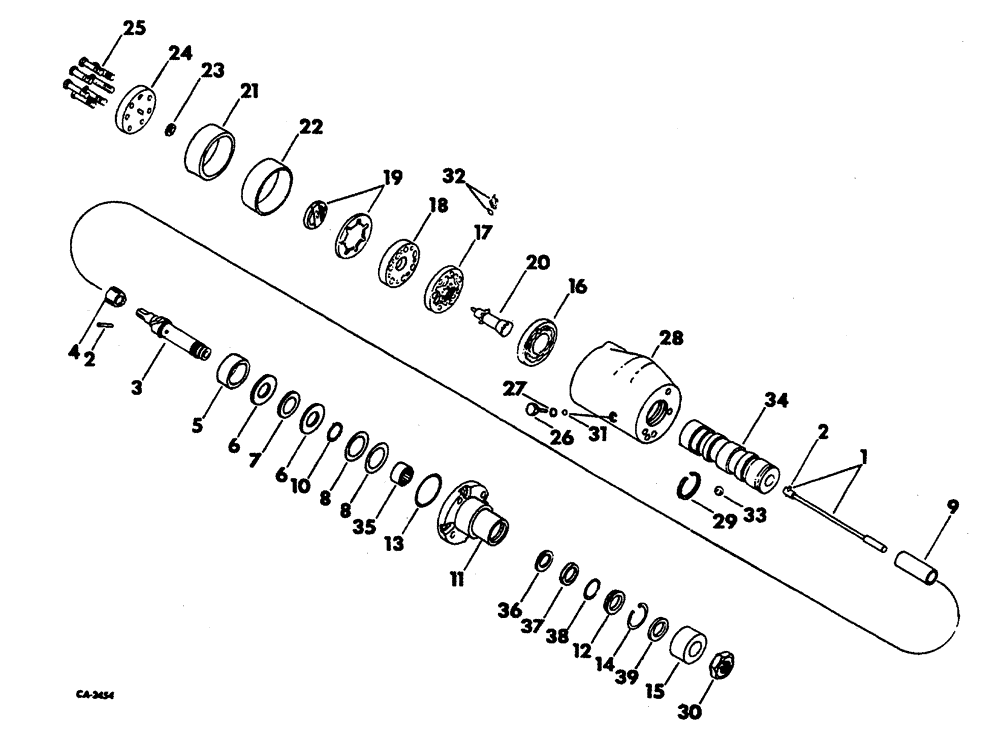

Запчасти Case 3400 (073) - HYDROSTATIC INTEGRAL STEERING ASSEMBLY (41) - STEERING

1

535055R1

BAR

TORSION ASSEMBLY

1шт.

2

535056R1

PIN

NEEDLE torsion bar

1шт.

3

535057R1

SHAFT

input

1шт.

4

535058R1

RING

drive

1шт.

5

536361R1

SPACER

SPACER

1шт.

6

535087R1

THRUST WASHER

thrust

2шт.

7

321898R91

SPARE PART

BEARING, thrust or as required

1шт.

8

535089R1

SHIM

SHIM

1шт.

9

535120R1

SPACER

drive link

1шт.

10

454331R1

SNAP RING,#87, Ext

1шт.

11

535090R1

COVER

COVER ASSEMBLY

1шт.

24481R1

SCREW

COVER

4шт.

12

535121R1

WASHER

WASHER

1шт.

13

535091R1

RING

seal

1шт.

14

383878R1

SNAP RING,1.25, Int, #125

1.25", Int, #125

1шт.

15

535092R1

SHIELD

PUMP SHAFT

1шт.

16

535093R1

SPACER

1шт.

17

535095R1

ROTOR ASSY.

set

1шт.

18

535096R1

MANIFOLD

1шт.

19

535097R1

ROTOR

COMMUTATOR ASSEMBLY

1шт.

20

538069R1

DRIVE

LINK

1шт.

21

535098R1

BUSHING,77.57mm ID x 82.8mm OD x 39.62mm L

ROTOR

1шт.

22

535099R1

RETAINER

SEAL, retainer

1шт.

23

535100R1

THRUST WASHER

1шт.

24

535101R1

COVER

end ASSEMBLY

1шт.

25

535102R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.50", Gr 5

COVER end

7шт.

26

379901R91

PLUG

and roll pin ASSEMBLY

1шт.

27

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

Boss plug

1шт.

28

BODY ASSEMBLY not serviced separately, furnish steering ASSEMBLY 534852R91

1шт.

29

536360R1

SPRING

ball pre load

1шт.

30

F19646

LOCK NUT,13/16"-20, Thin

hex, 13/16-20

1шт.

31

16008R1

BALL,1/4" Dia, Steel

1/4 DIA. STL

1шт.

32

405790R91

PACKAGE

vane and spring

1шт.

33

16010R1

BALL

5/16 DIA STL

2шт.

34

VALVE, spool not serviced separately, furnish steering ASSEMBLY 534852R91

1шт.

35

BEARING, needle not serviced separately, furnish cover ASSEMBLY 535090Rl

1шт.

36

PACKING, block vee not serviced separately, furnish steering package 535122R91

1шт.

37

BACKUP RING, packing not serviced separately, furnish steering package 535122R91

1шт.

38

WASHER, brass not serviced separately, furnish steering package 535122R91

1шт.

39

BUSHING, felt not serviced separately, furnish steering package 535122R91

1шт.

535122R91

SERVICE KIT

PACKAGE, hydrostatic steering ASSEMBLY service consists of $1 packing 319725R1 $1 RING 535123R1 $1 washer 535124R1 $1 bushing 376481R1

1шт.
