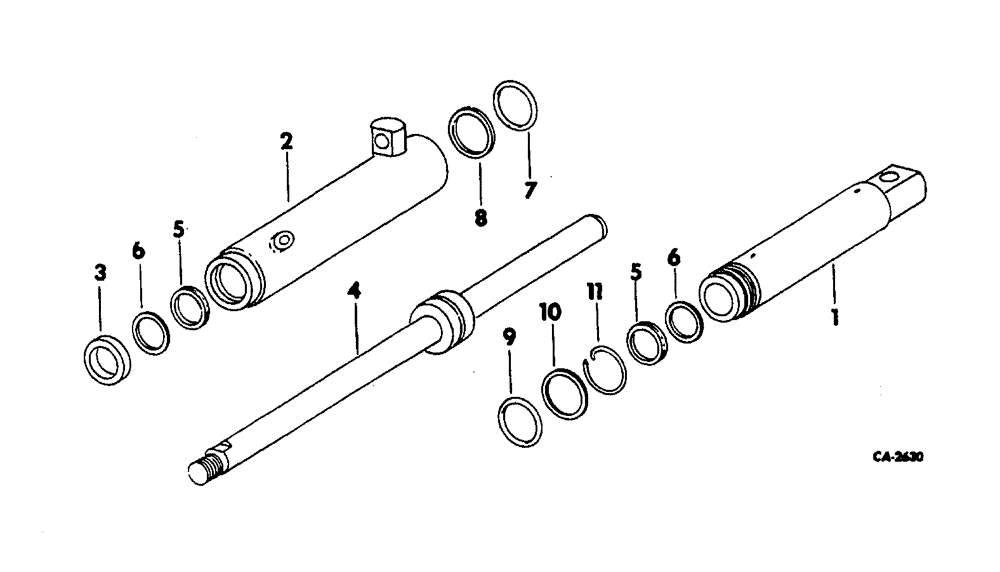

Запчасти Case 3400 (072) - POWER STEERING CYLINDER (41) - STEERING

1

536301R1

HEAD

ASSEMBLY, HYD steering

1шт.

2

536303R1

SPARE PART ASSEMBLY, HYD power steering

1шт.

3

536308R91

WIPER SEAL

rod wiper

1шт.

4

536309R1

PISTON ROD

ASSEMBLY, power steering

1шт.

5

536312R1

RING

RING, quad

2шт.

6

536313R1

BACK-UP RING

WASHER, back up

2шт.

7

290987R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 x 1/8 CL-5

1шт.

8

378586R1

RING,51.1mm ID x 54.66mm OD x 3.56mm Thk

piston

1шт.

9

343921R1

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1-7/8 x 12-1/8 x 1/8 CL-6

1шт.

10

378588R1

BACK-UP RING,48.31mm ID x 54.36mm OD x 1.14mm Thk

WASHER

1шт.

11

396106R1

ELECTRICAL WIRE

WIRE RETAINER, front head

1шт.

536314R91

SERVICE KIT

KIT, hydraulic cylinder service consists of Ref. NOS 3 and 5 thru 11

1шт.
