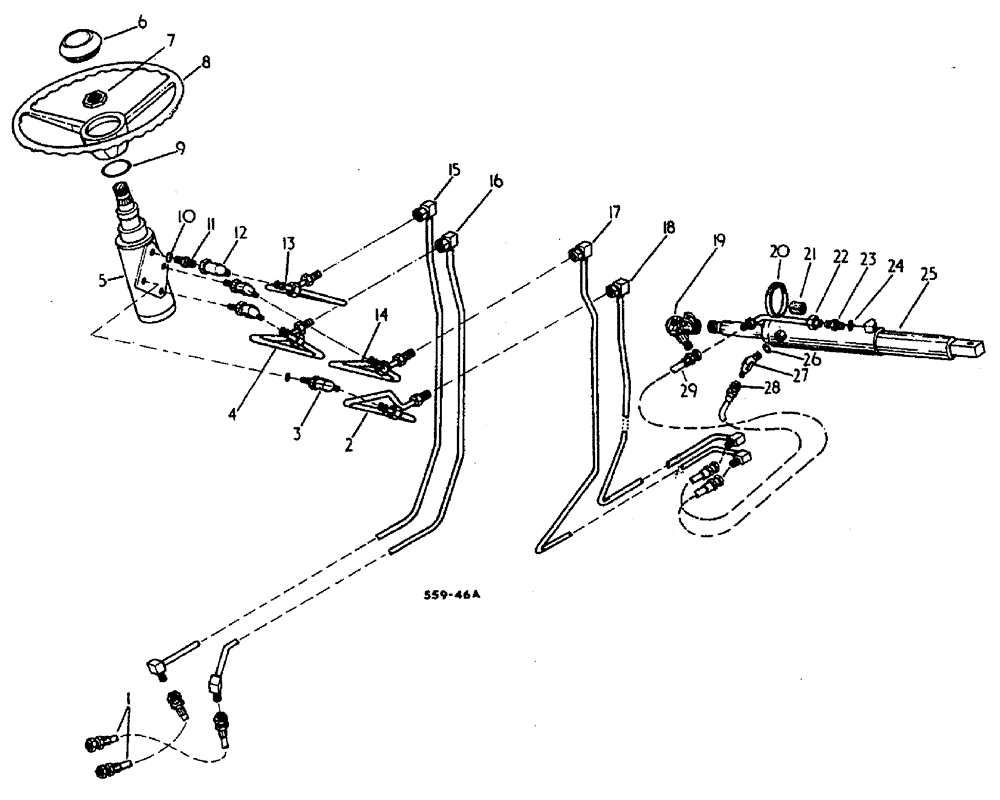

Запчасти Case 3400 (071) - POWER STEERING (41) - STEERING

1

536445R1

HOSE

HOSE, steering return

2шт.

2

536451R2

SPARE PART ASSEMBLY

1шт.

.

9410059

LOCK NUT,Blkhd, 9/16"-18

LOCK fitting, 9/16-18 ADJ STR THD

1шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

TUBE flared, 9/16-18 37 DEG HYD ADJ STR THD 90 DEG

3шт.

4

536446R3

SPARE PART

TUBE ASSEMBLY

1шт.

.

9410059

LOCK NUT,Blkhd, 9/16"-18

LOCK fitting, 9/16-18 ADJ STR THD

1шт.

5

534852R91

SPARE PART

VALVE ASSEMBLY, integral hydrostatic steering for components, see list of parts under details of hydostatic integral steering ASSEMBLY

1шт.

.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

.

80681

LOCK WASHER,5/16"

4шт.

6

378395R1

CAP

CAP, steering wheel

1шт.

7

F19646

LOCK NUT,13/16"-20, Thin

steering wheel

1шт.

8

385156R1

WHEEL (STEERING)

16 IN DIA

1шт.

8

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

9

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

4шт.

11

9410202R1

UNION, flared tube short swivel, 9/16-18 37 DEG HYD

1шт.

12

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

TUBE flared swivel, 37 DEG HYD 90 DEG, 9/16-18

1шт.

13

536443R2

SPARE PART ASSEMBLY

1шт.

.

9410059

LOCK NUT,Blkhd, 9/16"-18

LOCK filling, 9/16-18 ADJ STR THD

1шт.

14

536447R3

SPARE PART ASSEMBLY

1шт.

.

9410059

LOCK NUT,Blkhd, 9/16"-18

LOCK filling, 9/16-18 ADJ STR THD

1шт.

15

536439R1

SPARE PART ASSEMBLY

1шт.

16

536444R1

SPARE PART ASSEMBLY

1шт.

17

3116305R1

TUBE

ASSEMBLY

1шт.

18

3116306R1

TUBE

ASSEMBLY

1шт.

19

378817R91

BALL JOINT

END ASSEMBLY, power steering CYL

1шт.

.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

thick hex, 7/8-14 SLT

1шт.

.

120369

NUT,3/8"-24, G5

1шт.

.

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, hex HD, 3/8-24 x 1-3/4

1шт.

.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

.

103387

COTTER PIN,1/8" x 1 1/2"

1шт.

20

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

HOSE

1шт.

21

536453R1

SPARE PART split

1шт.

22

3116307R1

HYD TUBE,0.375" OD, 6.85, 2" Length

ASSEMBLY, steering CYL

1шт.

23

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

TUBE flared short swivel, 9/16-18 37 DEC HYD

1шт.

24

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

25

536300R91

CYLINDER ASSEMBLY, power steering for components, see list of parts under details of power steering CYL

1шт.

.

518505R1

HEADED PIN,3/4" x 3"

3/4 x 3 STD HD HTS

1шт.

.

13095R1

PIN,1/4" x 1 1/4"

ITO

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

27

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

TUBE flared, 45 DEG HYD/571 up, see note

1шт.

27

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

TUBE flared short swivel up to 570, 9/16-18 37 DEG HYD

1шт.

28

3116612R1

SPARE PART

HOSE, steering CYL /571 up, see note

1шт.

28

536449R1

SPARE PART

HOSE, steering CYL up to/570

1шт.

29

536449R1

SPARE PART

HOSE, steering CYL

1шт.

.

note: including serial NOS/551-554, • 557-561, 565, 566, 568

1шт.
