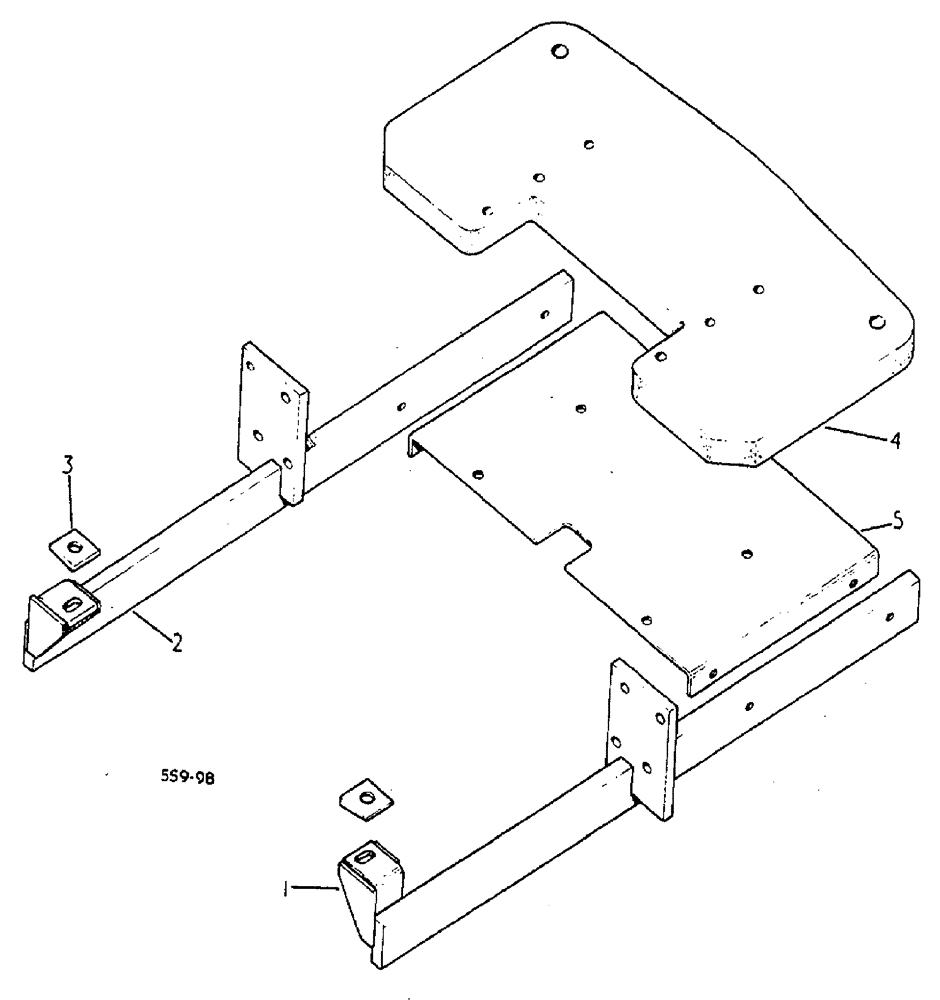

Запчасти Case 3400 (065) - REAR COUNTERWEIGHT (39) - FRAMES AND BALLASTING

3116227R91

ATTACHMENT, rear counterweight consists of Ref. NOS 1 thru 5, one weights

1шт.

3116228R91

ATTACHMENT, rear counterweight consists of Ref. NOS 1 thru 5, two weights

1шт.

3116229R91

ATTACHMENT, rear counterweight consists of Ref. NOS 1 thru 5, three weights

1шт.

3116230R91

ATTACHMENT, rear counterweight consists of Ref. NOS 1 thru 5, four weights

1шт.

3116231R91

ATTACHMENT, rear counterweight consists of Ref. NOS 1 thru 5, five weights

1шт.

1

536351R1

SPARE PART ASSEMBLY, mounting L. H.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, hex HD CAP, 5/8-11 x 2

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.21/32 x 1-5/16 x .12

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8-11

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

2

536352R1

FRAME

ASSEMBLY, mounting R. H.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

hex HD CAP, 5/8-11 x 2

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .12

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8-11 C Z

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

3

3116233R1

WASHER, bevel

2шт.

4

3116232R1

WEIGHT, rear bumper, APPROX 586 LBS

1шт.

280954

NUT,3/4"-10, G5

4шт.

NLS

NO LONGER SERVICED

SCREW, hex HD CAP used for one weight, 3/4-10 x 4-1/2

4шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

hex HD CAP used for two weights, 3/4-10 x 7

4шт.

22043R1

BOLT,Hex, 3/4" - 10 x 9 1/2", Gr 5

hex HD used for three weights, 3/4-10 x 9-1/2

4шт.

20921R1

BOLT,Hex, 3/4" - 10 x 12", Gr 5

hex HD used for four weights, 3/4-10 x 12

4шт.

23103R1

BOLT,Hex, 3/4-16 x 15", G5

hex HD used for five weights, 3/4-10 x 15

4шт.

5

536359R1

SPARE PART

1шт.

168392R1

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

SCREW, hex HD CAP, 1/2-13 x 2-1/2

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

4шт.

120384

WASHER,1/2"

4шт.

note: when 4 IN 1 bucket is fitted, five counterweights should be used.

1шт.
