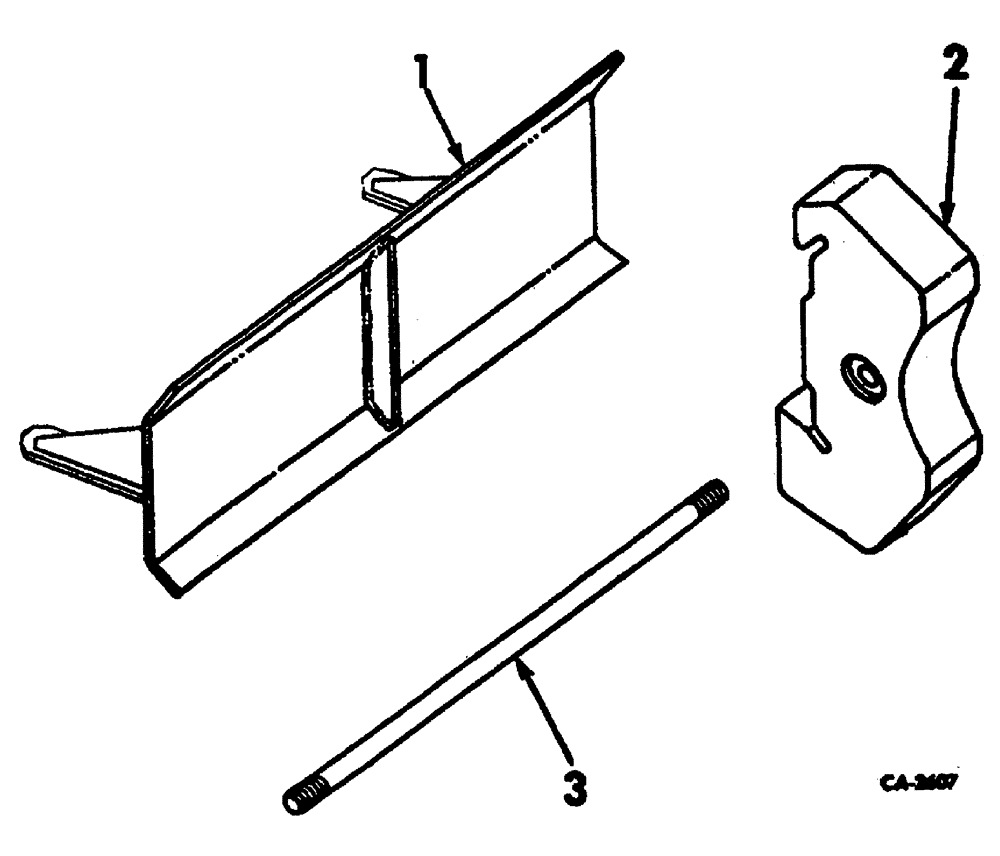

Запчасти Case 3400 (064) - FRONT END WEIGHTS (39) - FRAMES AND BALLASTING

1

536327R1

MOUNTING ASSEMBLY, front weight

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

hex HD, 3/4-10 ZND

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

2

381216R3

WEIGHT

WEIGHT, front end

11шт.

3

536331R1

SPARE PART front weight cross tie

1шт.

425-1014

NUT,7/8"-9, G5

1шт.

427691

NUT

7/8-9 C Z SQ

1шт.
