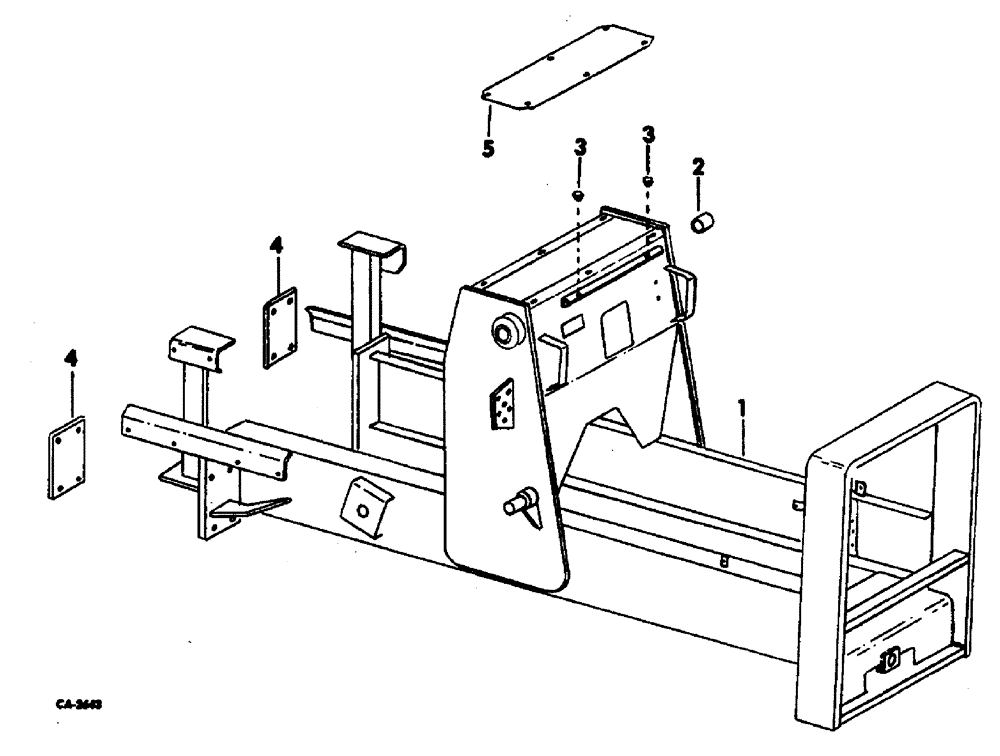

Запчасти Case 3400 (063) - MAIN FRAME AND CONNECTIONS (39) - FRAMES AND BALLASTING

1

3116423R91

FRAME ASSEMBLY, main includes Ref NO.2

1шт.

2

389309R1

BUSHING

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

2шт.

22539R1

SCREW

hex HD CAP, 1/2-13 x 1

2шт.

120384

WASHER,1/2"

2шт.

21711R1

WASHER

17/32 x 2-1/2 x 1/2

2шт.

23047R1

WASHER

1-17/32 x 2-1/2 x 16 GA

2шт.

3

535329R1

BUMPER

2шт.

4

535198R1

PLATE

axle mounting

2шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

hex HD CAP, 5/8-11 x 1-1/2

2шт.

535213R1

BOLT

axle mounting plate

8шт.

NLS

NO LONGER SERVICED

hex, 3/4-10

8шт.

103332

WASHER,3/4"

8шт.

5

535199R1

SPARE PART

COVER, access

1шт.

535183R2

SELF-TAP SCREW

bevel washer, HD CAP

6шт.
