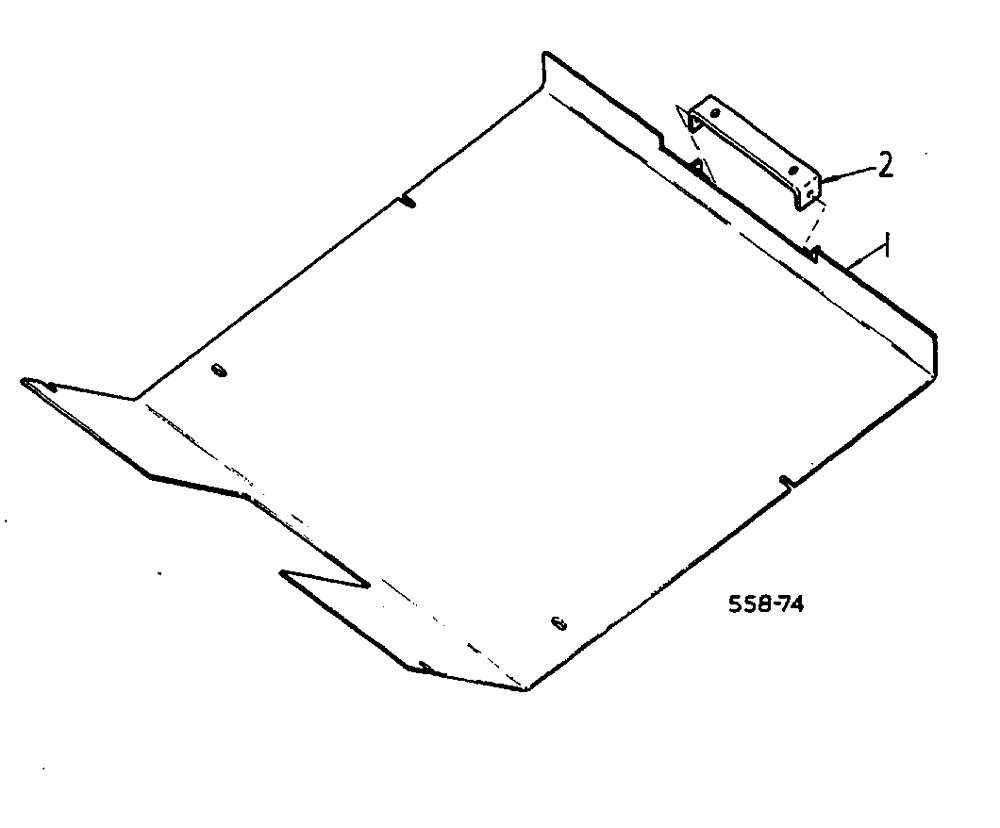

Запчасти Case 3400 (149) - HYDRAULIC PIPE GUARD ATTACHMENT (35) - HYDRAULIC SYSTEMS

1

3116399R1

GUARD

ASSEMBLY

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

103321

LOCK WASHER,3/8"

6шт.

120394

WASHER,3/8", SAE

plain, 3/8

6шт.

SE235

HEADED PIN,3/8" x 1 1/8"

3/8 x 1-1/8 STD HD

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

120394

WASHER,3/8", SAE

plain, 3/8

2шт.

2

3116398R1

SUPPORT

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

495-11053

WASHER,1/2", SAE

plain, 1/2

2шт.
