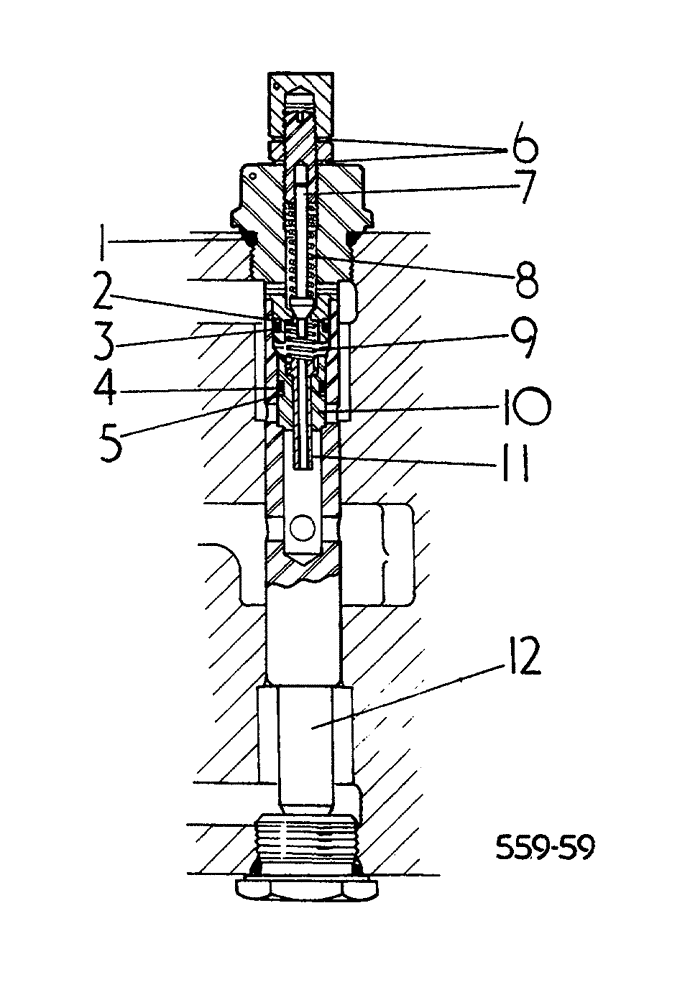

Запчасти Case 3400 (094) - MAIN RELIEF VALVE (35) - HYDRAULIC SYSTEMS

1

268269R1

O-RING

2шт.

2

3113713R1

RING

back up

1шт.

3

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

4

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

3113523R1

RING

WASHER, back up

1шт.

6

3113520R1

WASHER

2шт.

7

3113712R1

X

POPPET

1шт.

8

3113522R1

SPRING

1шт.

9

3113521R1

SPRING

1шт.

10

3113709R1

VALVE

POPPET

1шт.

11

3113710R1

PISTON

1шт.

12

3113711R1

SLEEVE

1шт.
