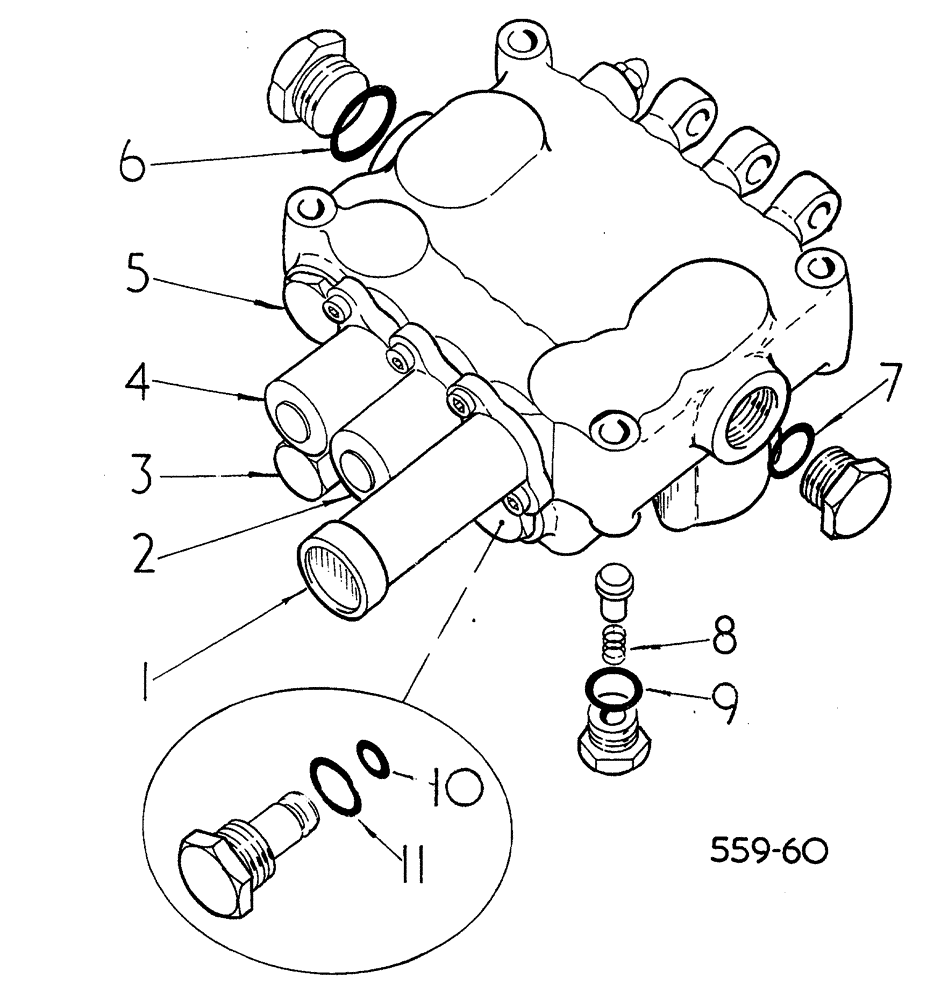

Запчасти Case 3400 (089) - CONTROL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

SPOOL ASSEMBLY, bucket lift, see detail list

1шт.

2

SPOOL ASSEMBLY, bucket roll see detail list

1шт.

3

3113702R91

VALVE

ASSEMBLY, RELIEF see detail list

3шт.

4

SPOOL ASSEMBLY, 4 IN 1 or auxiliary valve see detail list

1шт.

5

VALVE ASSEMBLY, main relief see detail list

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

2шт.

7

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

8

3113707R11

SPRING

3шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

10

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

3шт.

11

258269R1

O-RING

3шт.
