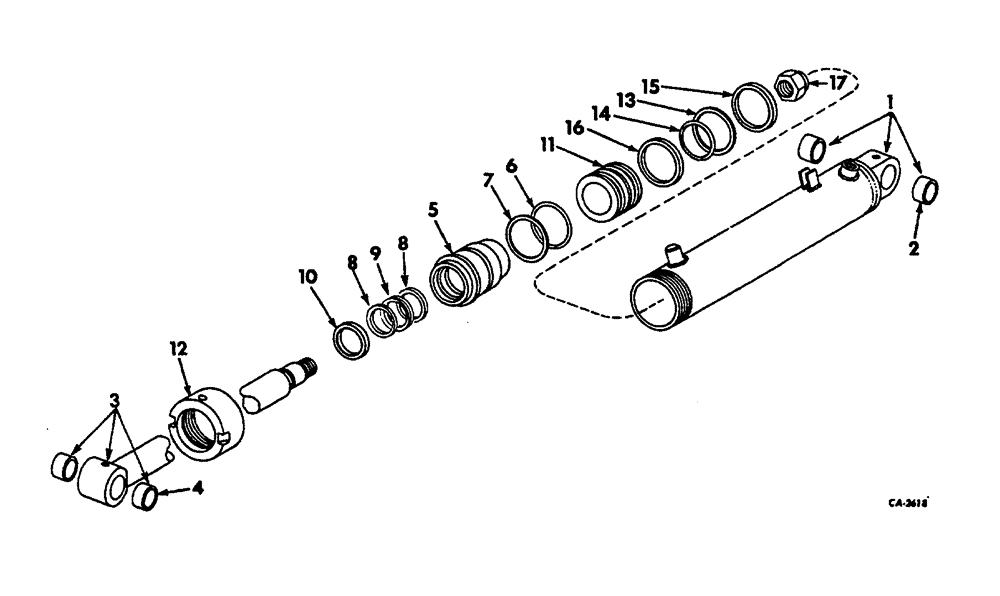

Запчасти Case 3400 (087) - HYDRAULIC BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

546092R91

SPARE PART ASSEMBLY, HYD cylinder

1шт.

2

468673R1

BUSHING

2шт.

3

546095R11

SPARE PART ASSEMBLY, piston

1шт.

4

468673R1

BUSHING

2шт.

5

387394R1

HEAD

cylinder front

1шт.

6

3044436R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

2-5/8x3x3/16

1шт.

7

387370R1

BACK-UP RING

WASHER, front head backup

1шт.

8

387399R2

RING

piston rod backup

2шт.

9

400745R1

SEALING RING

RING, piston rod quad

1шт.

10

403844R1

WIPER SEAL,50.7mm ID x 63.65mm OD x 7.92mm Thk

piston rod

1шт.

11

387371R1

SPARE PART cylinder

1шт.

12

387375R1

RETAINER

RING, front heap

1шт.

13

387373R1

RING

piston seal

1шт.

14

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32

1шт.

15

387374R1

RING,70mm ID x 76.2mm OD x 6.43mm Thk

piston bearing rear

1шт.

16

387374R1

RING,70mm ID x 76.2mm OD x 6.43mm Thk

piston bearing front

1шт.

17

25126R1

LOCK NUT,1 1/8"-12, GC

hex lock, 1-1/8-12 ZND

1шт.

546099R91

SPARE PART

KIT, HYD cylinder service consists of Ref NOS 6 thru 10 and 13 thru 16

1шт.
