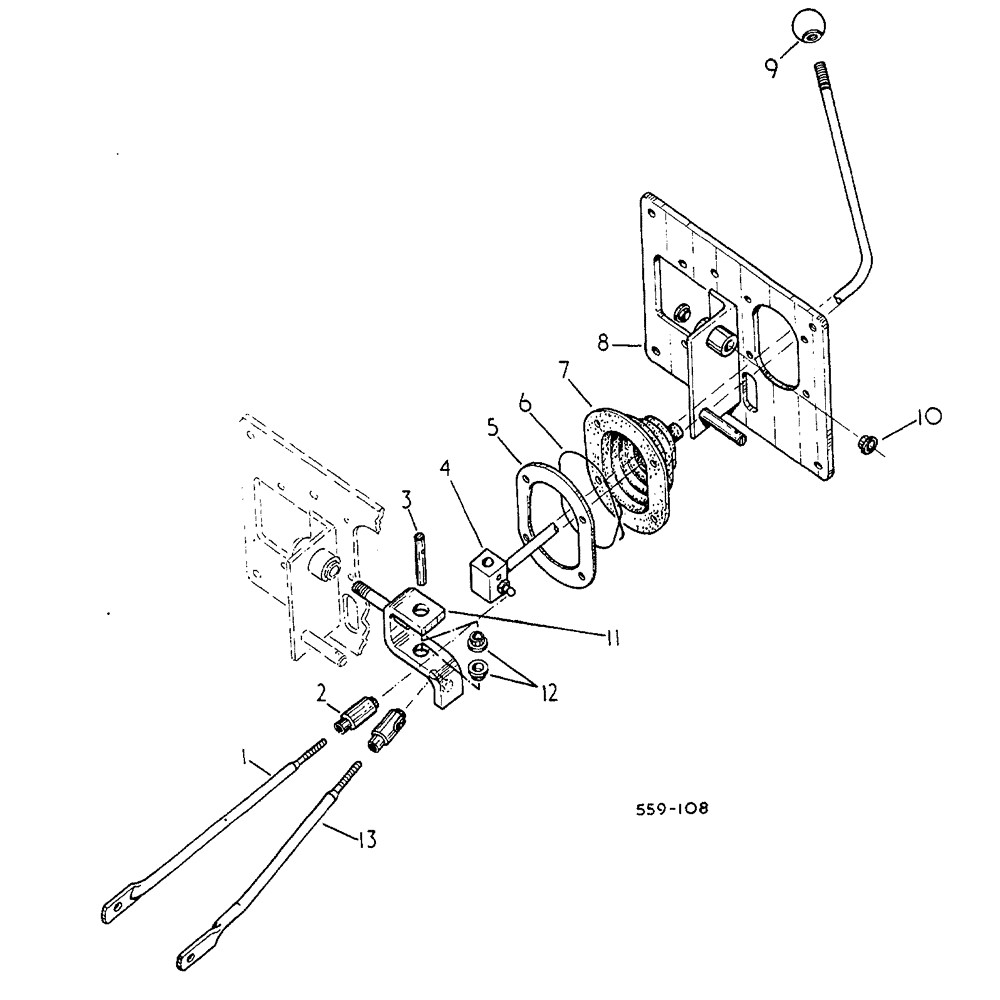

Запчасти Case 3400 (085) - LOADER CONTROLS (35) - HYDRAULIC SYSTEMS

1

537044R1

LINK

bucket valve actuating

1шт.

2

537045R1

JOINT

ball

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

20869R1

WASHER

17/32 x 7/8 x 16 GA C Z

2шт.

23079R1

CLEVIS PIN,1/2" x 1.141"

2шт.

21630R1

COTTER PIN

PIN, self opening COT, 1/8 x 1 C Z

2шт.

3

537042R1

SHAFT

bucket pivot

1шт.

4

537039R1

HANDLE

ASSEMBLY, control

1шт.

142359

GROOVED PIN

PIN, groove, 3/16 x 1

1шт.

5

357575C1

retainer, boot

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

4шт.

120392

WASHER,1/4", SAE

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

6

537525R1

SPRING

loader control boot

1шт.

7

357574R1

SPARE PART BOOT, loader control

1шт.

8

537031R21

SPARE PART ASSEMBLY, control

1шт.

9

264097R2

BALL

KNOB

1шт.

10

536952R1

BUSHING

2шт.

535183R2

SELF-TAP SCREW

washer HD CAP, 5/16-18 x 3/4

4шт.

11

537035R21

PIVOT

ASSEMBLY

1шт.

12

536952R1

BUSHING

2шт.

125250

SLOTTED NUT,1/2"-20, G8

1шт.

306415R1

WASHER, 17/32 x 1 x 22 GA

1шт.

103375

COTTER PIN,3/32" x 1 1/4"

1шт.

13

537043R1

LINK

boom valve actuating

1шт.
