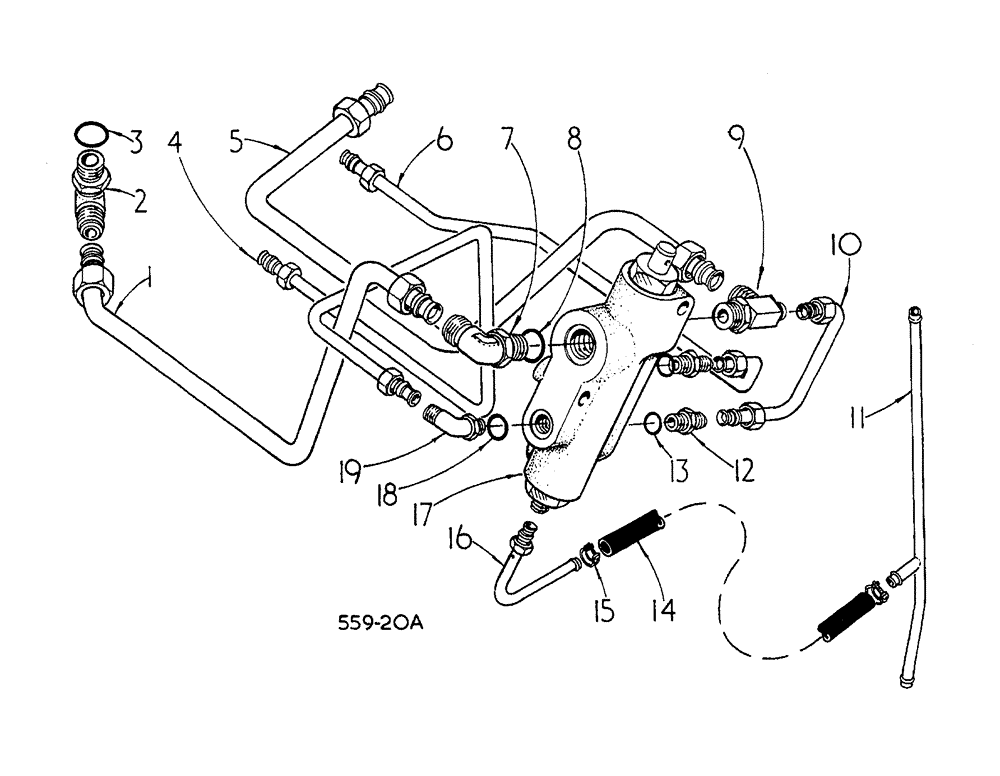

Запчасти Case 3400 (083) - SELF LEVELING VALVE AND TUBING (35) - HYDRAULIC SYSTEMS

1

537100R2

TUBE

, Serial Range: bucket-valve

1шт.

2

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

TUBE, 7/8-14, 37 DEC HYD ADJ STR THD 90 DEC

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

TUBE, 5/8 OD

1шт.

4

536980R2

TUBE

valve pressure

1шт.

5

3116322R1

TUBE

ASSEMBLY, bucket to self level tee

1шт.

5

538598R1

SPARE PART ASSEMBLY, bucket to self level tee see note

1шт.

6

3116226R1

TUBE ASSY.,0.375" OD, 16.5, 4.26" Length

valve to bucket

1шт.

7

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

TUBE, 7/8-14, 37 DEC HYD ADJ STR THD 90 DEC

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

TUBE, 5/8 OD

1шт.

9

538599R1

TEE

adjustable

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, hex HD CAP, 3/8-16 x 2-3/4

2шт.

10

536238R1

SPARE PART, Serial Range: valve-bucket

1шт.

11

536948R1

TUBE, ASSEMBLY brake supply

1шт.

12

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

TUBE short swivel, 9/16-18, 37 DEC HYD

2шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

2шт.

14

536949R1

SPARE PART

HOSE, return self leveling

1шт.

15

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

16

536947R1

TUBE

ASSEMBLY, valve return

1шт.

17

546683R92

SPARE PART

VALVE, self leveling for components, see list of parts under details of self leveling valve

1шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

19

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

TUBE, 9/16-18 37 DEC HYD ADJ STR THD 90 DEC

1шт.

note order TUBE 3116322Rl w/tube 538532Rl

1шт.
