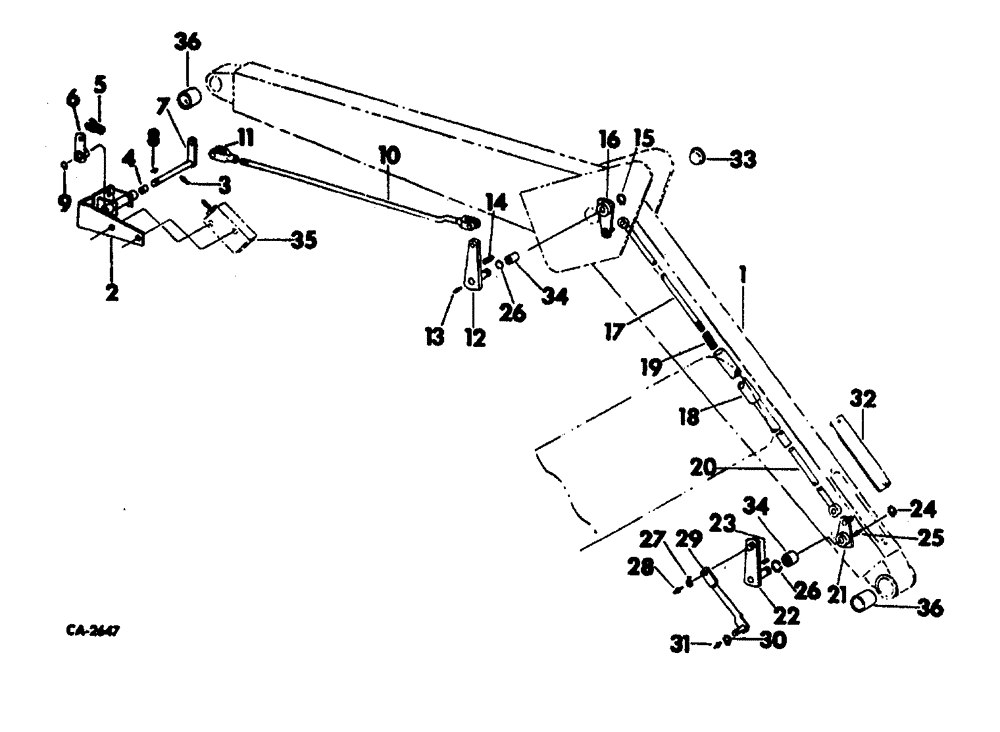

Запчасти Case 3400 (082) - SELF LEVELING CONTROLS (35) - HYDRAULIC SYSTEMS

1

536146R91

SPARE PART ASSEMBLY, loader includes Ref NO 36

1шт.

2

536177R11

BRACKET

ASSEMBLY, self leveling valve

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, hex HD CAP, 3/8-16 x 3 ZND

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, hex HD CAP, 3/8-16 x 1-1/2 ZND

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 GA C Z

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

619856R1

WASHER

13/32 x 1 x 16 GA C Z

6шт.

3

126098

FITTING

drive type STR LUB 5/16

1шт.

4

376941R1

BUSHING

2шт.

5

457113R91

CHAIN LINK

connecting

1шт.

6

536180R1

ARM

ASSEMBLY, valve actuating

1шт.

7

536188R1

CRANK

ASSEMBLY

1шт.

8

106749

KEY

woodruff, 1/8 x 1/2

1шт.

9

22824R1

SNAP RING,#50, Ext

1шт.

10

536183R2

LINK

adjustment

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

rod end, 1/2 x 1-27/64 C Z

1шт.

137185

COTTER PIN,1/8" x 1"

1шт.

11

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

adjustable, 1/2

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

rod end, 1/2 x 1-27/64 C Z

1шт.

137185

COTTER PIN,1/8" x 1"

1шт.

hex jam, 1/2-20 ZND

1шт.

12

536185R2

ARM

ASSEMBLY, boom knee

1шт.

23245R1

WASHER

25/32 x 1-3/4 x 1 GA C Z

1шт.

13

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

drive type STR LUB 1/8

1шт.

14

626803R1

KEY,3/16" Sq x 1/2", Par

parallel, 3/16 x 1/2 SQ

1шт.

15

23090R1

SNAP RING,#75, Ext

#75, Ext

1шт.

16

537979R1

ARM

ASSEMBLY, inside knee

1шт.

607891R1

WASHER

15/32 x 1 x 16 GA C Z

1шт.

137185

COTTER PIN,1/8" x 1"

1шт.

17

536193R1

ROD

ASSEMBLY, spring load

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

hex jam, 3/4-16 ZND

1шт.

18

536196R1

TUBE

ASSEMBLY, spring

1шт.

19

536195R1

SPRING

1шт.

23505R1

WASHER

9/32 x 5/8 x 16 GA C Z

1шт.

20

536199R1

ROD

ASSEMBLY, slide

1шт.

21

536201R1

ARM

ASSEMBLY, lower inside

1шт.

607891R1

WASHER

15/32 x 1 x 16 GA

1шт.

137185

COTTER PIN,1/8" x 1"

1шт.

22

536204R1

ARM

ASSEMBLY, lower boom

1шт.

20825R1

WASHER

25/32 x 2 x 11 GA

1шт.

23

626803R1

KEY,3/16" Sq x 1/2", Par

parallel, 3/16 x 1/2 SQ

1шт.

24

23090R1

SNAP RING,#75, Ext

#75, Ext

1шт.

25

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

fitting, drive type STR LUB 1/8

1шт.

26

536211R1

RING

cord

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 GA C Z

1шт.

27

384098R1

SNAP RING,#62, Ext

#62, Ext

1шт.

28

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

fitting, drive type STR LUB 1/8

1шт.

29

536207R1

SPARE PART

LINK ASSEMBLY, bucket sensing

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 GA

1шт.

21793R1

WASHER

21/32 x 1-1/4 x 7 GA

1шт.

30

384098R1

SNAP RING,#62, Ext

#62, Ext

1шт.

31

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

fitting, drive type STR LUB 1/8

1шт.

32

536210R1

PLATE

cover

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

33

538004R1

SPARE PART boom knee

1шт.

34

536176R91

BEARING

ASSEMBLY

2шт.

35

VALVE ASSEMBLY, self leveling refer to self leveling valve and tubing

1шт.

36

468673R1

BUSHING

4шт.
