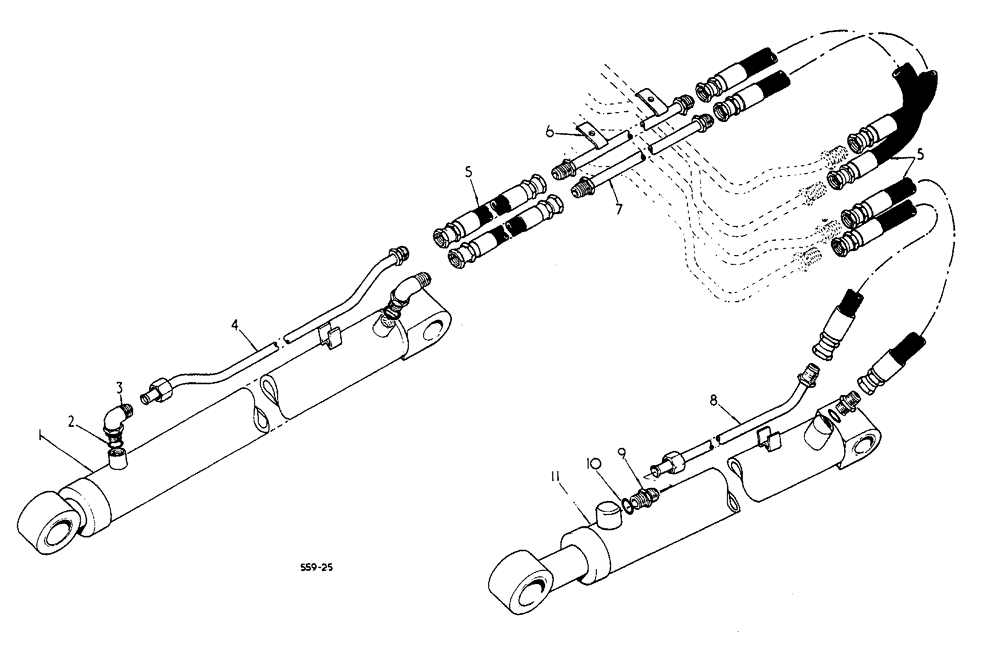

Запчасти Case 3400 (081) - LOADER CYLINDERS AND HOSES (35) - HYDRAULIC SYSTEMS

1

546091R91

SPARE PART CYLINDER ASSEMBLY, bucket for components see list of parts under details of bucket cylinder

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

TUBE, 5/8 OD

4шт.

3

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 DEC HYD

4шт.

4

535397R1

SPARE PART ASSEMBLY, bucket CYL

2шт.

5

196604H1

HOSE

12шт.

6

533109R1

CLAMP

TUBE, HYD

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

80681

LOCK WASHER,5/16"

4шт.

7

535384R1

TUBE

ASSEMBLY, boom

4шт.

8

535107R1

SPARE PART ASSEMBLY, lift CYL

2шт.

9

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

TUBE flared short swivel, 7/8-14 37 DEG HYD

4шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

11

546086R91

SPARE PART ASSEMBLY, boom lift for components see list of parts under details of boom lift cylinder

2шт.

546099R1

SERVICE KIT, for 546091R91 and 546086R91

1шт.
