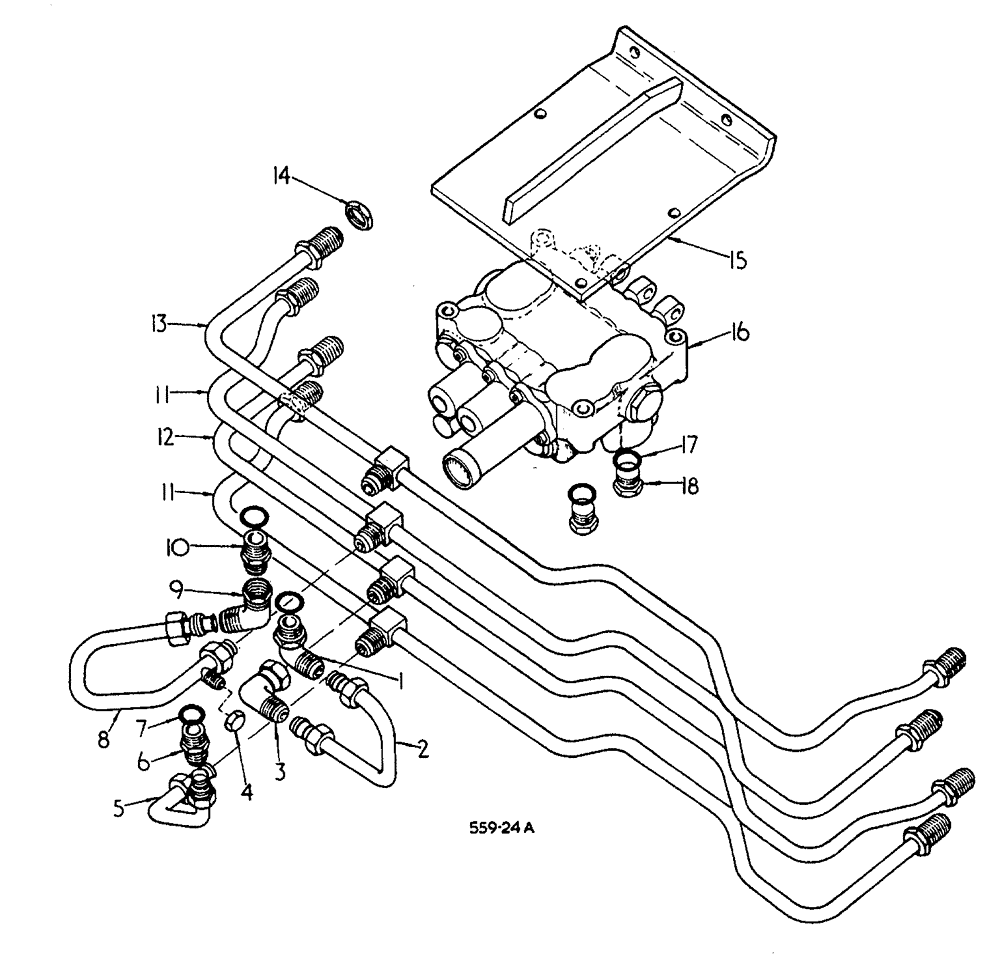

Запчасти Case 3400 (080) - LOADER VALVE AND TUBING (35) - HYDRAULIC SYSTEMS

1

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

TUBE flared, 7/8-14 37 DEG HYD ADJ STR THD 90 DEG

1шт.

2

539184R1

TUBE

ASSEMBLY, boom spool rear port

1шт.

3

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

TUBE flared swivel, 7/8-14 37 DEG HYD 90 DEG

1шт.

4

9403371

CAP,37 Degree, 9/16"-18

TUBE flared, .9/16-18 37 DEG HYD

1шт.

5

539185R1

TUBE

boom spool front port

1шт.

6

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

TUBE flared short swivel

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

TUBE, 5/8 OD

3шт.

8

539190R1

TUBE

ASSEMBLY, bucket spool rear port

1шт.

9

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

TUBE flared, swivel, 7/8-14 37 DEG HYD 90 DEG.

1шт.

10

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

TUBE flared short swivel, 7/8-14 37 DEG HYD

1шт.

11

538530R1

TUBE

ASSEMBLY, inside boom and bucket

2шт.

12

538532R1

TUBE

ASSEMBLY, outside boom and bucket

1шт.

13

538532R1

TUBE

ASSEMBLY, bucket spool front, Serial Range: jumper-CYL

1шт.

13

539191R1

TUBE ASSEMBLY, bucket spool front jumper to CYL ( • )

1шт.

14

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

LOCK, bulkhead union, 7/8-14

8шт.

15

537644R1

PLATE

SPARE PART ASSEMBLY, loader valve

1шт.

102635

NUT,3/8"-16, G5

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

hex HD CAP, 3/8-16 x 1-1/4

2шт.

103321

LOCK WASHER,3/8"

2шт.

16

538270R91

SPARE PART

VALVE, ASSEMBLY control see detail list

1шт.

102635

NUT,3/8"-16, G5

3шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

SCREW, hex HD CAP, 3/8-16 x 3 - 1/8

3шт.

103321

LOCK WASHER,3/8"

3шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

TUBE, 5/8 OD

2шт.

18

9410360

PLUG

O RING boss, 7/8-14 STR THD

2шт.

( • ) on orders for tube 539191Rl furnish tube 3116322Rl w/tube 538532Rl

1шт.
