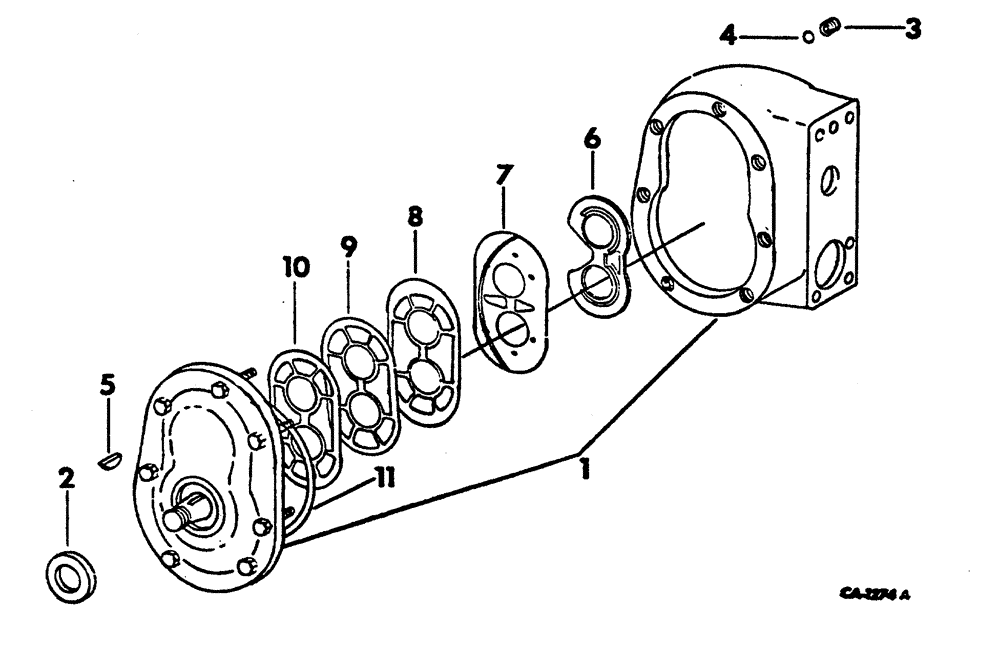

Запчасти Case 3400 (079) - HYDRAULIC GEAR PUMP (35) - HYDRAULIC SYSTEMS

1

406827R91

PUMP

ASSEMBLY, HYD gear

1шт.

1

84573150R

REMAN-HYD PUMP

3400 SERIES A INTERNATIONAL LOADER TRACTOR, ASSEMBLY, HYD gear, Reman for New PN 406827R91

1шт.

1

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

373244R91

SEAL

pump shaft

1шт.

3

383663R1

VALVE SPRING

ball check

1шт.

4

16007R1

BALL

BALL, 7/32 A. CR STpump lave

1шт.

5

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Gear

1шт.

6

PLATE, thrust not serviced separately. furnish o ring and gasket service package S534261R91

1шт.

7

DIAPHRAGM, pressure not serviced separately. furnish o ring and gasket service package S34261RSI

1шт.

8

SEAL, diaphragm not serviced separately, furnish o ring and gasket service package 534261R91

1шт.

10

GASKET, protector not serviced separately. furnish o ring and gasket package S34261R91

1шт.

11

22276R1

O-RING,3.489" ID x 3.629" OD x 0.07"

pump cover

1шт.

534261R91

SEAL KIT

PACKAGE, HYD pump o ring and gasket service consists of 1 plate 397824Rl $1 diaphragm 371555R2 $1 seal 627278Cl $1 gasketT 371558Rl $ 1 gasket 371558R91 o ring 22276Rl 1 o ring 372821Rl 1 o ring 21433R1

1шт.
