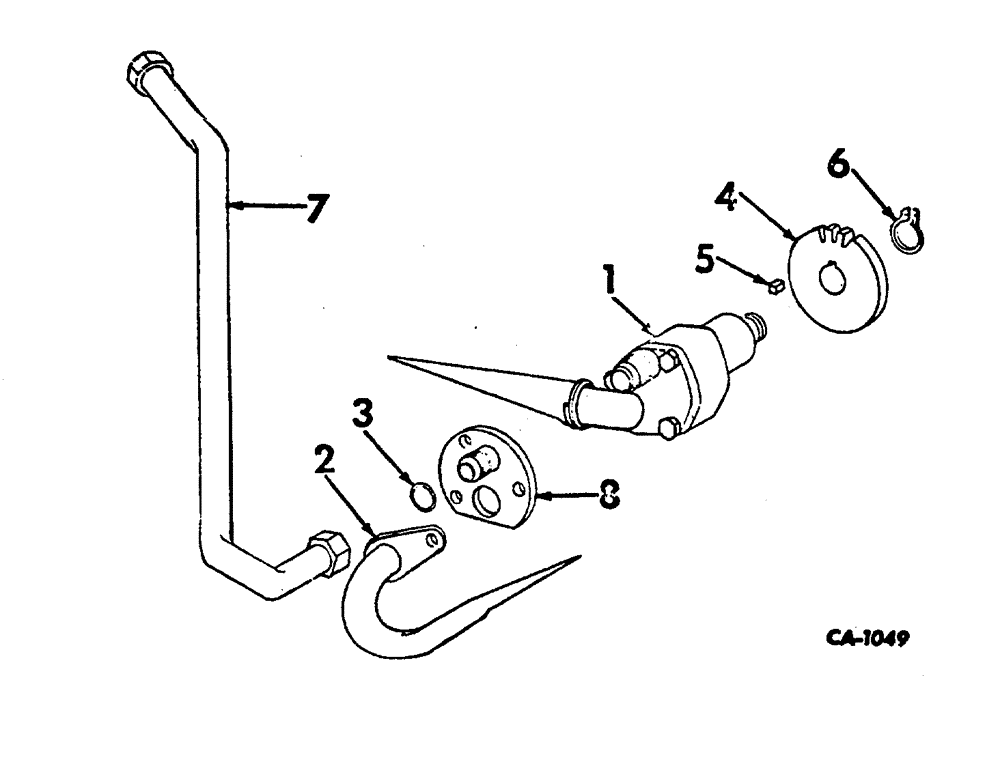

Запчасти Case 3400 (078) - HYDRAULIC LUB PUMP - SYNCHROMESH DRIVE (35) - HYDRAULIC SYSTEMS

1

528504R91

PUMP

ASSEMBLY, transfer optional w/529397RSI

1шт.

1

529397R91

PUMP

ASSEMBLY, transfer optional w/528504RSI

1шт.

139371

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

5/16-18 x 1/2 hex SOC HD CONE PT SET

1шт.

527424R1

SCREW

transfer pump retaining

1шт.

2

529099R1

SUCTION PIPE

TUBE, transfer pump suction used w/pump 528504R91 only

1шт.

3

574069R1

O-RING,0.750" ID x .062"

3/4 x V/8 x 1/16

1шт.

4

528095R1

PINION

GEAR, transfer pump driven, 21T

1шт.

5

529100R1

BUCKET TOOTH KEY

transfer

1шт.

6

3042123R1

RING, SNAP

RING SNAP driven gear retaining

1шт.

7

527423R1

PRESSURE PIPE

ASSEMBLY, transfer pump outlet

1шт.

8

529275R1

END PLATE

PLATE, end used w/pump 528504R91

1шт.
