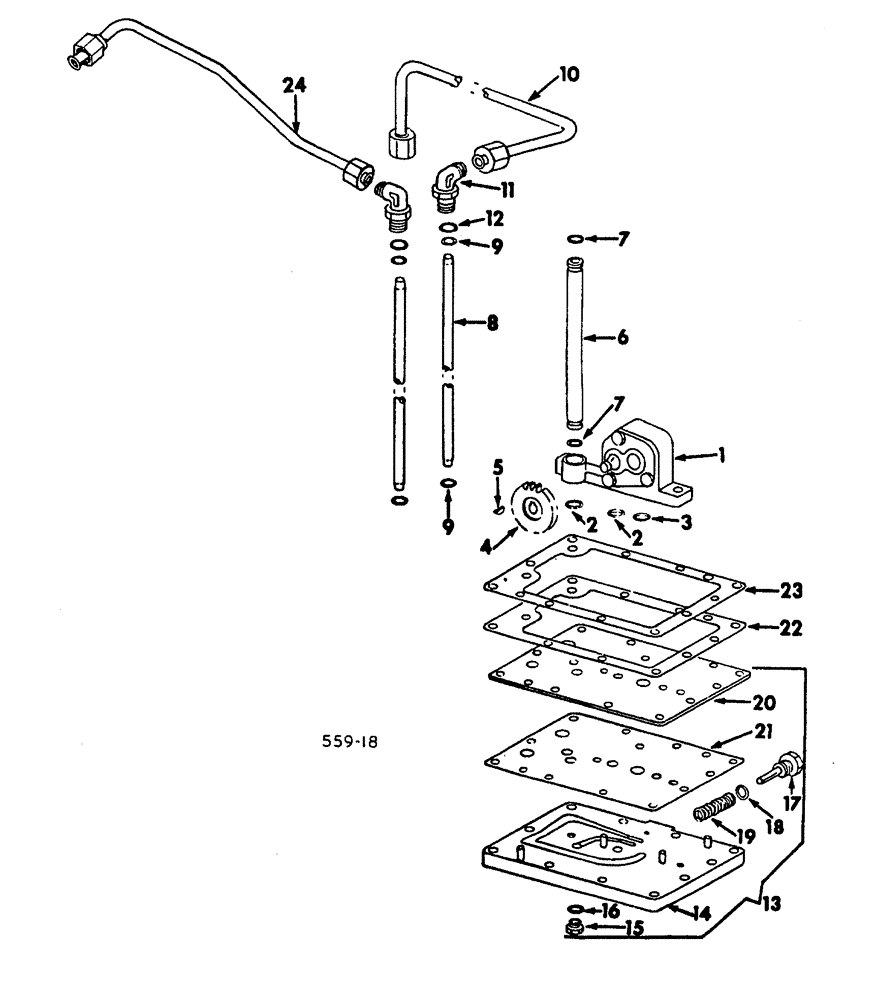

Запчасти Case 3400 (076) - HYDRAULIC PUMP AND CONNECTIONS - TRACTORS W/FORWARD AND REVERSE (35) - HYDRAULIC SYSTEMS

1

527757R91

PUMP

ASSEMBLY, HYD for components, see list of parts under details of HYD

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

2

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 x 3/4 x 1/16

2шт.

3

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 x 1/16

1шт.

4

528076R1

GEAR

pump driven, 14T

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

5

427261

KEY

woodruff, 1/8 x 3/8

1шт.

6

402544R1

SUCTION PIPE

TUBE, oil inlet

1шт.

7

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

2шт.

8

402545R1

PRESSURE PIPE

TUBE, pump up to/614

2шт.

8

402545R1

PRESSURE PIPE

TUBE, pump /615 up

1шт.

9

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

4шт.

10

537992R1

TUBE

ASSEMBLY, pressure

1шт.

11

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

TUBE flared, 3/4-16 C Z 37 DEC HYD ADJ STR THD 90 DEG up to 3400/614

2шт.

11

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

TUBE flared, 3/4-16 C Z 37 DEG HYD ADJ STR THD 90 DEG

1шт.

11

9410359

PLUG

O RING, 3/4-16 STR THD, 3400/615 up

1шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

TUBE, 1/2 OD

2шт.

13

402547R93

SPARE PART

VALVE ASSEMBLY regulator consists of Ref NOS 14 thru 21

1шт.

14

402548R1

BODY

ASSEMBLY, regulator valve

1шт.

15

9410356

PLUG

O RING boss, 7/16-20 C Z STR THD

1шт.

16

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

1шт.

17

402551R1

PLUG

PLUG ASSEMBLY

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

TUBE, 1/2 OD

1шт.

19

539352R1

SPRING

regulator valve

1шт.

20

402554R1

PLATE

pump

1шт.

21

402555R1

GASKET

PLATE, pump

1шт.

22

not used

1шт.

23

402556R2

GASKET

PUMP mounting flange LT

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

hex HD CAP, 3/8-16 x 1-3/8

11шт.

103321

LOCK WASHER,3/8"

11шт.

24

529744R1

SPARE PART ASSEMBLY, return, Serial Range: up-3400/614

1шт.
