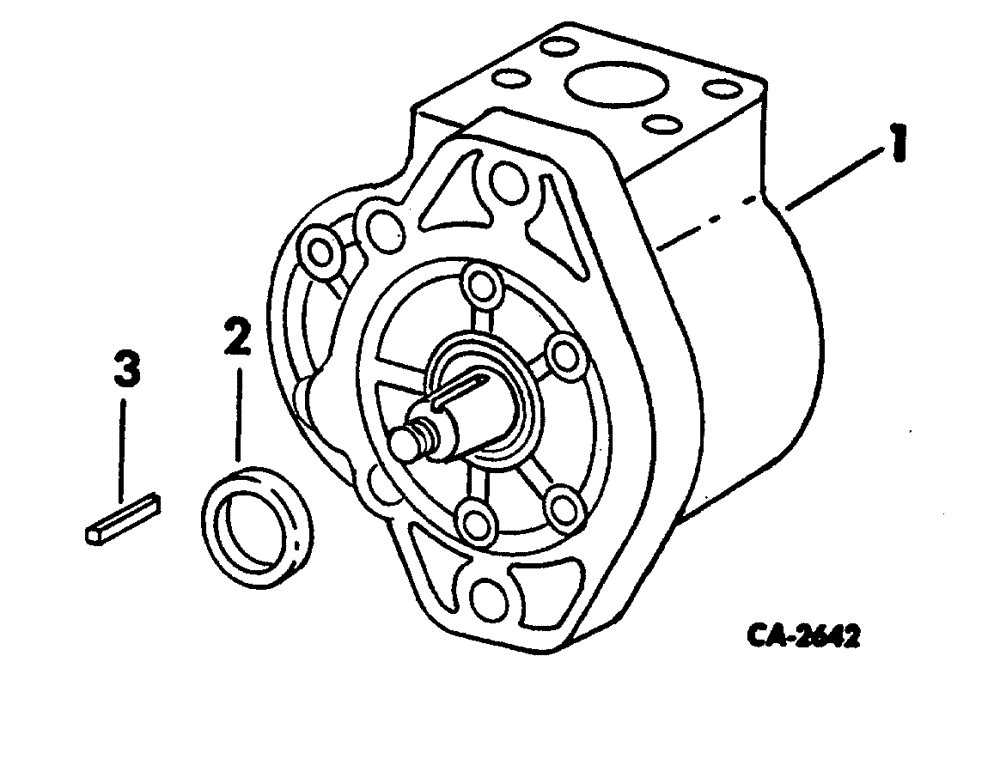

Запчасти Case 3400 (075) - SIDE MOUNTED PUMP (35) - HYDRAULIC SYSTEMS

1

546686R93

HYDRAULIC PUMP

PUMP, side mounted 13.5 optional w/547301R92

1шт.

1

547301R92

PUMP

side mounted 13.5 optional w/546686R93

1шт.

381230R1

SPRING

check ball

2шт.

16013R1

BALL

check used w/pump 547301R92

2шт.

2

391251R91

SEAL

OIL pump shaft used w/pump 546686R93

1шт.

2

397826R91

GASKET

OIL pump shaft optional w/381232R91

1шт.

2

381232R91

OIL SEAL

OIL pump shaft optional w/397826R91 used w/pump 547301R92

1шт.

3

535519R1

KEY

OIL pump drive shaft used w/pump 546686R93

1шт.

3

636489R1

KEY

OIL pump drive shaft used w/pump 547301R92

1шт.

403616R92

KIT

PACKAGE, o ring, and gasket service used w/pump 546686R93

1шт.

67055C1

SEAL KIT

PACKAGE, o ring and gasket service used w/pump 547301R92

1шт.
